Build your own industrial voltage (2-10VDC) to current (4-20mA) converter/conditioner and save.



Simply connect the board to 24VDC via our 24VDC-power-supply-regulator-board. Apply 0 to 10VDC to the input and read 0 to 20mA on the output.



Mount it, Just a one adjustments apply 10VDC to the input and adjust the output to 20mA via P1 (multi-turn trimmer) and you're in business.

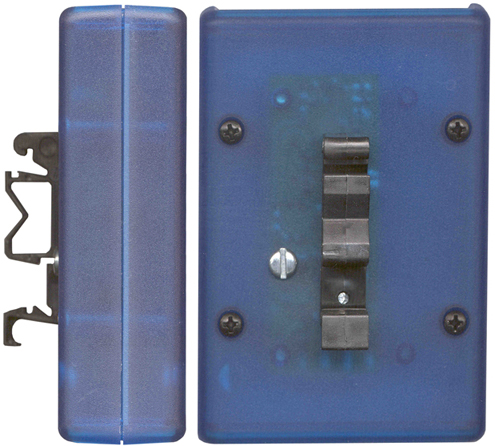

EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side and back views

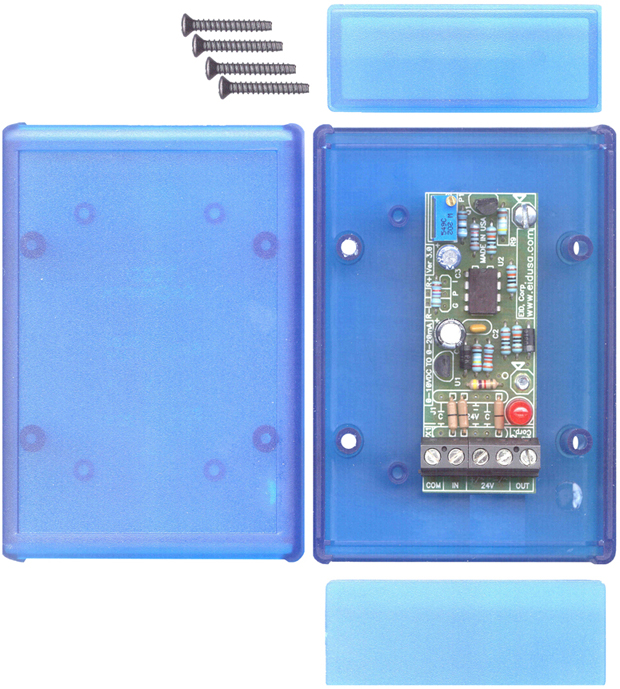

The board shown above mounted in EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options



Voltage to current industrial standard configuration models:



Model #

Input Voltage

Output Current

EID's OEM P#

VC420-B1

0-1.2V

0-20mA

EID-CONVER-TER-VC420-1-5TB

66mV-1.2V

4-20mA









VC420-B2

0-2V

0-20mA

EID-CONVER-TER-VC420-2-5TB

400mV-2V

4-20mA









VC420-B5

0-5V

0-20mA

EID-CONVER-TER-VC420-5-5TB

1-5V

4-20mA









VC420-B10

0-10V

0-20mA

EID-CONVER-TER-VC420-5TB

2-10V

4-20mA









VC420-B24

0-24V

0-20mA

EID-CONVER-TER-VC420-24-5TB

4.8-24V

4-20mA
