Build your own Voltage Controlled Relay (VCR)



Input select 0-5VDC, 0-10VDC or 0-XVDC (OEM), 4-20mA, 0-20mA; Where XVC custom input voltage see example B for 0-30VDC.









Input level trip set point multi-turn trimmer adjustment (via P1).

Differential set point multi-turn trimmer adjustment (Via P2).

Set Input select to 0-10V

LED, relay on indicator.

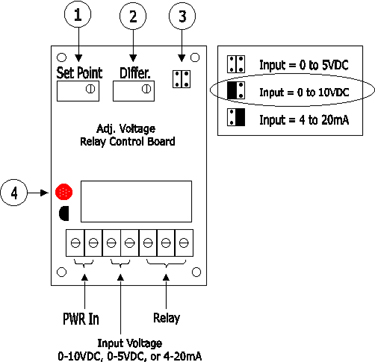

1. Input level set point multi-turn trimmer adjustment (via P1).

2. Differential set point multi-turn trimmer adjustment (Via P2).

3. Input select: 0-5VDC, 0-10VDC, 4-20mA

4. LED, relay on indicator.



Example A:

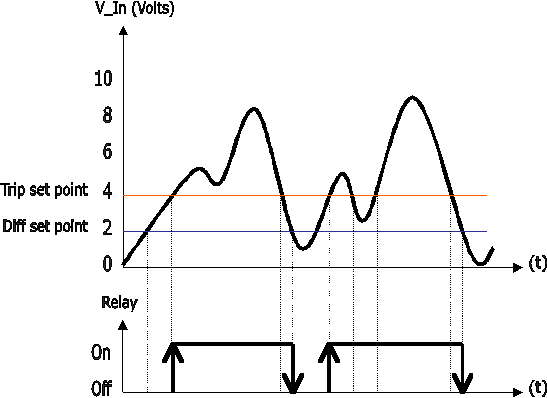

Control electric motor via the relay with input voltage greater then 4VDC. When the input voltage drop below 2VDC (equal to 50% of 4VDC trip point) turn off the relay therefore the motor.



* Set Input select to 0-10V



* Set Input trip level: Adjust the trip set point multi-turn trimmer adjustment (via P1) to 4VDC. Measured between ground to test point 1 (TP1).



* Set Input Cut out level: Adjust the differential set point multi-turn trimmer adjustment (Via P2) to 2VDC. Measured between ground to test point 2 (TP2).



Mount, connect wires and you done.










Example B:



Monitor 24V battery





1. Input level set point multi-turn trimmer adjustment (via P1).

2. Differential set point multi-turn trimmer adjustment (Via P2).

3. Input select: 0-5VDC, 0-30VDC (OEM custom board), 4-20mA

4. LED, relay on indicator.





* Set Input select to 0-30V (As shown with OEM board modify to input of 0 to 30VDC).

Please be advised that Enclosure, Din-Rail mount and mounting screws and  Multi-turn trimmers options are sold separately.



* Set Input trip level: Adjust the trip set point multi-turn trimmer adjustment (via P1)



* Set Input Cut out level: Adjust the differential set point multi-turn trimmer adjustment (Via P2)



Mount via DIN-RAIL (option), connect wires, and you done.
