INTERFACER – ADR1. Adjustable voltage/current sensitive relay control Board.



The INTERFACER-ADR1 board is designed to perform relay switching function based on two set points.



1. Differential voltage set point



2. Trip set point



The board can accommodate three industrial inputs configurations:



1. Input current 4-20mA (or 0-20mA)



2. Input voltage 0-5VDC



3. Input voltage 0-10VDC (or custom see Application note #108)



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The INTERFACER-ADR1 is easy to install, setup and operate. If you want to do professional relay switching via setting of voltage or current, The INTERFACER-ADR1 offers the features you need.



As mentioned above, the board can be configured to accept input signals of 0-10V, 0-5V or 4-20mA.



Mounted easily via four 0.125" mounting holes.



Setting the board is simple Just follow these easy steps



1. Connect the board to 24VDC or 24VAC



2. Set the board via jumper provided to the desired input configuration (10V, 5V or 4-20mA).



3. Connect your voltage or current signal to the input. Set the reference point until relay turns on (LED will light up).



4. Adjust the input signal to the desired trip out point.



5. Adjust the span trimmer until the relay turns off.



The board remembers input setting points and the relay will turn on and off based on them.



The board is ideal when an analog signal is required to switch two position loads i.e. circulating pumps, recalculating fans, high and low fan speeds, humidifiers, pool chlorine feeding pumps, sensor level switching functions, differential switching controls, analog signal to relay on/off, analog signal voltage or current alarms and more.



Please drop us a line at HVAC@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.

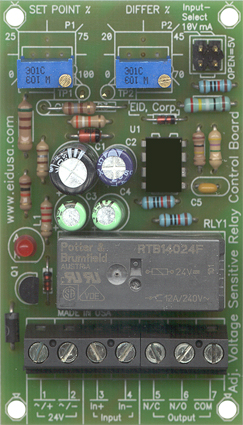

Shown above with two adj. pot.

Input set to 0-10V DC.







Shown above with two adjustable multi-turn trimmer (option).

Input set to 0-5V DC.

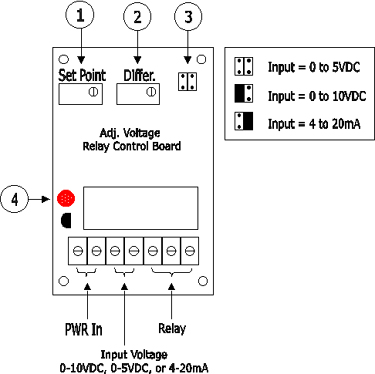

1. Input level set point multi-turn trimmer adjustment (via P1).

2. Differential set point multi-turn trimmer adjustment (Via P2).

3. Input select: 0-5V, 0-10V, 4-20mA

4. LED, relay on indicator.



Mounting Option



Simply snap the Din-Rail mounded enclosure into your NEMA 4 box (enclosure) for watertight applications

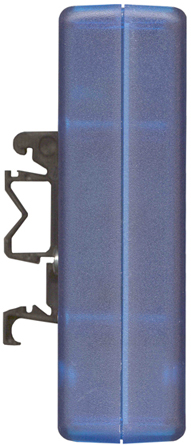

EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side view





EID-1593LBK black ABS plastic instrument enclosure with Din-Rail mounting options, front (open) & side views





INTERFACER-ADR1 Features



  • High and low voltage settings - relay switching points.

  • Input voltage or current settings via on-board jumpers.

  • Power via 24V DC or AC industrial standards.

  • Can be customized to accommodate your input voltage or current requirements.

  • Relay on LED indicator

Specifications

  • PCB material: FR4

  • Input Signal: 0-10V or 0-5V or 4-20mA.

  • Input impedance 0-10V non-isolated input: >100K Ohms

  • Input impedance 0-5V non-isolated input: >20K Ohms

  • Input impedance 4-20mA non-isolated input: >100K

  • Max power consumption: 0.5W

  • Set point: 10-100%

  • Deferential setting point: 5-70%

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: 24 [V]

  • Power source: 24VAC +/-5%, 50/60Hz, 1.7VA or 24VDC 1.4VA

  • Adjustment: Via 1 turn pot. both Diff. and set points

  • Mounting: Four 0.125” holes

  • Manufactured: 100% in U.S.A.
