POWER-PS24.  24 volt DC / 800mA Power supply board.



The POWER-PS24 board is designed to convert 26-30 Volts Ac or DC to stabilize 24V DC. If used properly, it will eliminate the need for expensive industrial power supplies, which would otherwise be needed to carry out the same task.



POWER-PS24 is easy to install, setup and operate. If you want to  professionally power your HVAC products, POWER-PS24 offers the features you need. Mounted easily via two 0.125" mounting holes.



On the right picture is our 24V Power supply board.

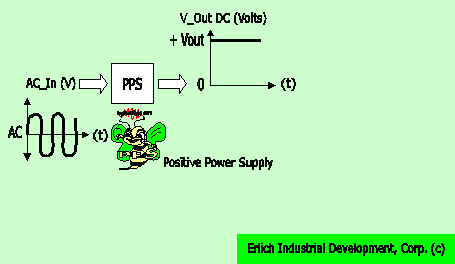

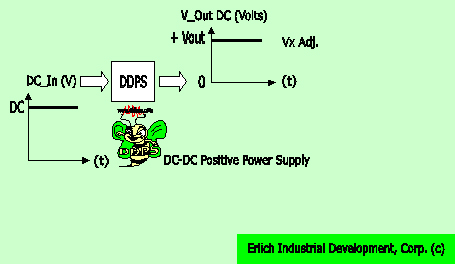

The board is designed to attenuate, filter and regulate 26-30V DC or AC to stable 24V DC.



For our line of transformers click Here



Shown above 24V Power supply board with LED power indicator.




or





1. LED power on indicator






Mounting:



Board, shown above mounted in plastic enclosure (EID-1593 series enclosure) with din-rail-clip (optional).



Note:



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).




POWER-PS24 Features



  • Up to 800mA output.

  • +/-3% voltage stability.

  • Power switch option.

  • Generally powered from any power source, AC or DC, that is larger then 2 volts of the desired 24V output voltage.

  • Also, designed to operate from three 12VDC car batteries

Specifications

  • Input voltage                           26-30V AC or DC

  • Relative Output voltage stability  +/-3%

  • Output current                         Up to 800mA, higher output current models are available.

  • PCB material                             FR4

  • Output Voltage                         24VDC

  • Max power consumption             30W

  • Storage temperature                 40 - 70   [F]

  • Operating temperature               32 - 140 [F] (0 to 60C) @ 95% RH

  • Low board DC voltage                29[V] max

  • Power indicator                         Red LED

  • Manufactured                           100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

POWER-PS24 Power supply board

EID-POWER-PS-24V

$69.00

POWER-PS24 Power supply board with LED power indicator

EID-POWER-PS-24V-LED

$75.00

POWER-PS24 Power supply board with LED power indicator and with 6" wires (4).

EID-POWER-PS-24V-LED

$99.00

Flat configuration option addition.

EID-POWER-PS-24FL

$9.99

Power switch addition.

EID-POWER-PS-24V-PSW

$3.99
