Our pH Electrode Are light-weight and durable, suitable for a wide range of applications. Mating is by a 2-stud bayonet lock (BNC "male" type connector). Our pH electrodes Are made to exacting standards. Every electrode is tested for response, speed, slope, E(0) isolation, drift and temperature response. You can rely on your EID pH electrode to deliver dependable measurements now and well into the future. Use it with your PROBER-PH8 Meter/Logger for the highest accuracy and maximum performance.

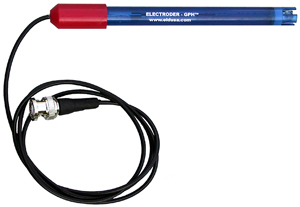

ELECTRODER - General Purpose pH Electrode (GPH)

pH combination electrode, epoxy body, fixed guard, PIN junction, 12mm * 120mm, 0-14 pH range



Although it is the most economical pH electrode on the market. the ELECTRODER-GPH provides reliable and accurate performance. Popular in routine pH determinations, it comes with unique designs. Featuring built in bulb guards. It offers high performance at attractive prices. It's shipped with a soaker bottle, which guarantees high performance out of the box without conditioning the electrode each time.



ELECTRODER - ReFillable Glass pH Electrode (FGP)

pH combination electrode, glass body, annular ceramic junction, 12mm * 120mm, 0-14 pH range



ELECTRODER - Glass pH Electrode (GLP)

pH combination electrode, glass body, annular ceramic junction 12mm * 120mm, 0-14 pH range



ELECTRODER - Glass Spear-Tip pH Electrode (STP)

pH combination electrode, glass body, annular ceramic junction 12mm * 120mm, 0-14 pH range



ELECTRODER - Glass Refillable  Spear-Tip  Semi-Micro pH Electrode (SMP)

pH comb. electrode, glass body, annular ceramic junction 12mm* 8mm * 65mm "I" * 150mm, 0-14 pH range



ELECTRODER - General Purpose Micro pH Electrode (GMP)

pH combination electrode, epoxy body, annular ceramic junction 6mm * 230mm, 0-14 pH range



ELECTRODER - Flat Head pH Electrode (FPH)

pH combination electrode, epoxy body, flat surface, PIN junction 12mm * 120mm, 0-13 pH range

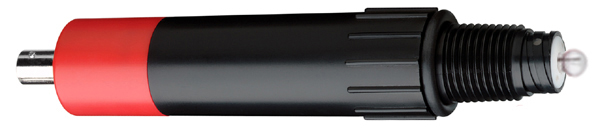

ELECTRODER - Screw-On pH Electrode (SPH)

pH combination electrode, in-line with 1/2" NPT, ABS body, teflon junction 12mm * 120mm, 0-14 pH range

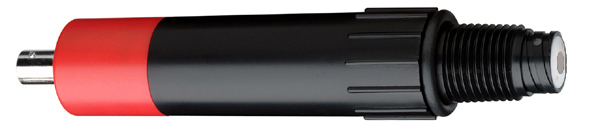

ELECTRODER - Flat Head Screw-On pH Electrode (FSP)

pH combination electrode, in-line with 1/2" NPT, ABS body, teflon junction 12mm * 120mm, 0-14 pH range






EID's low cost electrodes fitting:



Simply slide, twist and look any 10mm to 14mm electrode (probe) into a pipe, tanks or tee fitting utilizing the ELECTRODER-FT5 Compression Fitting Gland.



For an additional gland fittings diameters see also our Liquid-Tight Strain Relief Grips.



The ELECTRODER-FT5 strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the electrode, providing a liquid-tight electrode-grip. The ELECTRODER-FT5 accepts a wide range of electrodes diameters due to large opening and highly flexible strain relief elements, together with a TPE sealing ring.

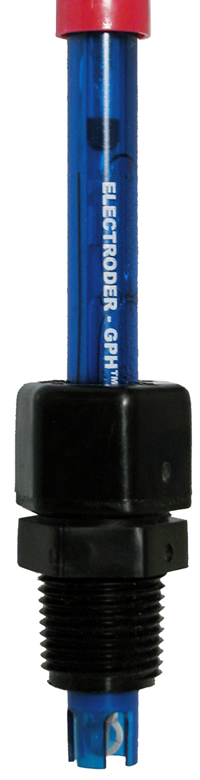

ELECTRODER - GPH 12mm diameter pH electrode mounted in ELECTRODER-FT5 electrode fitting




* Our pH electrodes are furnished standard with a 3-foot low noise coaxial (RG-174) cable and BNC connector. Cable extension lengths up to 12 feet are available. When longer distance requires, or when using the electrode in a industrial environment, use our pH unity gain amplifier AMPER-PH1



* EID Corp. offers many types and styles of OEM pH electrodes both with single and double junction. We will customize them for you. Let us know the style you are looking for and we will produce to your specifications. Contact EID Sales team for more details. Join the thousands who use them every day worldwide.




Many of you asked us -- what are the purchase volume requirements for custom labeling?

Custom labeling requires minimum purchasing quantities of 50 units


Instruction manual and electrode care.



* pH electrode Manual




ELECTRICAL SPECIFICATIONS

Nominal Impedance:

>100 Mega Ohm

Range:

0-14.5 pH

Temperature Range:

0-84oC, (32- 183.2oF, 273.15-357.15oK)

Accuracy at 25C  0-7pH

+/- 0.2%

Accuracy at 25C  7-10pH

+/- 0.4%

Accuracy at 25C  10-12pH

+/- 0.6%

Accuracy at 25C  12-14pH

+/- 0.8%


MATERIALS

Body Housing

Epoxy, Glass and/ or  ABS

BNC Cable

RG-174 or RG58  3ft. (91cm)

BNC Female Contact

Brass, Gold Plated Crimp

Bulb

Full range pH bulb, 20% Lead Glass

Gel

Single or double Junction Ag/AgCl

Cap

Red Polystyrene

Size

12mm * 150mm (0.4725" * 5.906")

Print

White Pad Print

Description and SKU#

Price


ELECTRODER-GPH

EID-E-GPH-A001 for Single junction

EID-E-GPH-A002 for Double junction





Until July 1, 2006 Student Price for

the Single junction electrode is only

$45.99



49.70

74.75



ELECTRODER-GPH COMBO

with thermistor

EID-E-GPH-A001-T10K with 10K thermistor

EID-E-GPH-A001-T20K with 20K thermistor





79.75

79.75



For picture of the ELECTRODER-GPH COMBO tip--

See application not #36

ELECTRODER-FGP

EID-E-FGP-A001



65.75

ELECTRODER-GLP

EID-E-GLP-A001



69.99

ELECTRODER-STP

EID-E-STP-A001



79.99

ELECTRODER-SMP

EID-E-SMP-A001



89.99

ELECTRODER-GMP

EID-E-GMP-A001



89.99

ELECTRODER-FPH

EID-E-FPH-A001



79.99

ELECTRODER-SPH

EID-E-SPH-A001



99.79

ELECTRODER-FSP Flat surface, Double Junction with KCl electrolyte.

EID-E-FSP-AKCl





108.31

ELECTRODER-FSP Flat surface, Double Junction with LiCl electrolyte.

EID-E-FSP-LICl





112.31

ELECTRODER-GPH Kit comes with one electrode with Protection soaker bottle,  BNC-F-F-Adaptor & 12 ft. extension cable.

EID-K-GPH-K005







79.50

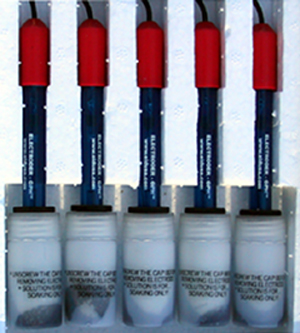

ELECTRODER-GPH 5 Set, comes with 5 general pH electrodes with protection soaker bottles.

EID-K-GPH-A05











Until July 1, 2006 Student Price is only $234.00







249.50



pH Electrode Stand Kit, 6 Pieces *

Rotates 360 Deg.  Both, Vertical & Horizontal

EID-S-GPH-BO06



Until July 1, 2006 Student Price is only

$15.95















* Electrode sold separately





19.99



pH Refill electrolyte solution.

EID-F-GPH-BO01 Single Junction Electrodes

                       KCl/AgCl pH Fill Solution

EID-F-GPH-BO02 Double Junction Electrodes

                       KNO3 pH Fill Solution



9.95



9.95



ELECTRODER-SPH Protective Cap

EID-E-SPH-A0PC





4.99



ELECTRODER-FT5 Compression fitting

EID-E-COM-PRE-SSION-FT5



10.99





ELECTRODER-SPH  Removable Guard

EID-E-SPH-A0RG





2.99



Protection soaker bottle with solution

(4M kCI, pH4 OR pH7)

EID-B-GPH-BO01





3.99

BNC (RG-58) Cable extension cord

EID-C-BNC-58BB-3 for 3 ft.

EID-C-BNC-58BB-6 for 6 ft.

EID-C-BNC-58BB-12 for 12 ft.



6.00

7.00

8.00





Double Female Adapter

EID-A-BNC-305 (UG-914/U)





1.60
