CONVERTER – PHX420. pH, ORP or ISE to 4-20mA Converter/Transmitter Interface Board.



The CONVERTER-PHX420 board is designed to perform linear analytical signal conversion and conditioning function, from the voltage produced by the electrode to industrial standard 4 to 20 mA current signal output. Additionally, industrial standard such as 1 to 5VDC and 2 to 10VDC output modules are available.



The high performance 4-20mA transmitter board power from industrial standard 24V AC or DC



The CONVERTER-PHX420 is a linear low cost 4-20mA transmitter for pH, ORP or ISE interface to remote data-loggers, ADC and PLC. Commonly utilized as the heart of pH In-Line Amplifier pH-ILA.



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The CONVERTER-PHX420 is easy to install, setup and operate. If you want to perform  professional analytical measurement functions from remote locations such as water treatment facilities, oil drilling, well measurements, remote lake water analysis, the CONVERTER-PHX420 offers the features you need.



Mounted easily via three 0.125" mounting holes. or via our modified enclosure with din rail EID-1593LBK and EID-1427DIN (both sold separately).



Connecting the board is simple, just follow these easy steps



1. Connect the electrode via BNC to the 4-20mA transmitter.



3. Connect the current output 4-20mA signal to your remote location, via terminal blocks conveniently mounted on the bottom of the 4-20mA transmitter.



3. Connect the board to 24VDC or 24VAC. via terminal blocks conveniently mounted on the bottom of the 4-20mA transmitter. LED Power indicator will light.

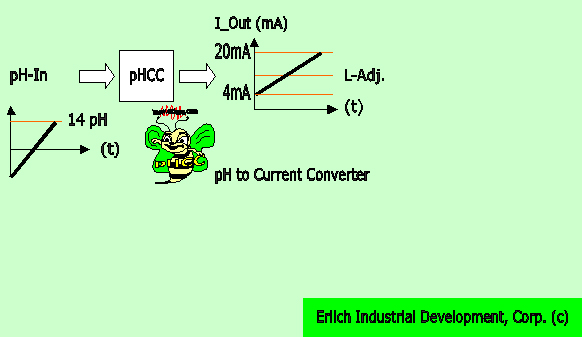

The board monitors the electrode (pH, ORP, ISE) voltage and converts the signal to current.

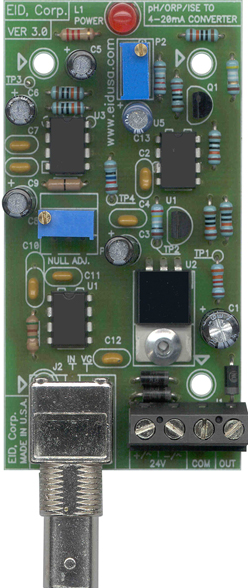

Shown above in a standard configuration

Transmitter +/- 2 VDC to 4-20mA

Note: Using 249 Ohms 1% resistor on the meter (remote side) will produce 1 to 5V for 4-20mA.

         Using 499 Ohms 1% resistor on the meter (remote side) will produce 2 to 10V for 4-20mA.



Please drop us a line at sales@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important-- one of our engineers will be happy to help you achieve them.













Note: Our linear low cost, small size, signal conditioning self-power integral two-wire 4-20mA transmitter for pH, ORP or ISE interface to Data loggers, ADC, DCS Systems, Data acquisitions Systems, Receiver, Analyzer or PLC will accept input voltage of +/- 2.000 VDC.







Shown above mounted in our modified enclosure with DIN-Rail mount (sold separately).







Shown above with 4 wires enclosed with DIN-Rail mount (sold separately).





INTERFACER-AWSR1 Features



  • Sensitive settings via pot. (option)

  • Input any pH, ORP or ISE sensors or electrodes.

  • Power via 24V DC or AC industrial standards.

  • Built-in power LED indicator.

  • +0V input 12mA output multi-turn trimmer adjustment.

  • Converts +/- 2VDC analog voltages to 4-20mA

  • Can be customized to accommodate your input voltage requirement.

  • Industrial Standard output of 4-20mA makes the CONVERTER ideal for remote sensing applications.

  • Linear current output.

  • Current output rated up to 600mA.

  • On board trimmer facilitates precise calibration of output current (0V input to 12mA output)

  • 4-20mA output up to 5 miles.

Specifications

  • PCB material: FR4

  • Input impedance:                      > 14  T-Ohms ( > 1014 Ohm)

  • Max power consumption:            1W

  • Input voltage:                          +/- 2.000 VDC

  • Output Set point:                     +/- 0.001mA

  • Input Null Set point:                  +/- 0.0001mV

  • Output voltage:                        12-18VDC

  • Output Current:                        Linear, two -wires 4 – 20mA standard

  • Resolution:                               0.0001 mA

  • Accuracy                                 ±0.001 mA

  • Output voltage:                        12 to 18VDC industrial standard

  • PCB material:                            FR4

  • Input Filter:                              L.P.F. 2Hz

  • Max power consumption:             0.5W

  • Maximum load:                          Max load 600 Ohms

  • Storage temperature:                 40 - 70   [F]

  • Operating temperature:               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltages:              3, 6, 18 and 24 [V]

  • Power source:                           24VAC +/-5%, 50/60Hz, 1.7VA or 24VDC 1.4VA

  • Power indicator:                        LED Red

  • Adjustment:                              Via two 18 turns pots.

  • Mounting: Three 0.125” holes with centers distance of 1.1" and 2.125"

  • Board dimensions                       1.69" * 3.13" (42.9mm * 79.5mm)

  • Manufactured                           100% in USA

ORP, ISE and pH to two-wires 4-20mA Applications:

  • Process Control in areas with high electrical interference

  • Industrial and Municipal Water Treatment

  • Industrial and Municipal Waste Treatment and Neutralization

  • Suitable for Fume Scrubbers Plating

  • Circuit Board Manufacturing

  • Food and Beverage

  • Chemical Processing

  • Pulp & Paper

  • Mining

  • Power Generation

  • Pharmaceutical

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

CONVERTER-PHX420 pH/ORP/ISE to 4-20mA interface board (transmitter.)

EID-CONVER-TER-PHX420-R1

$279.39

CONVERTER-PHX420 pH/ORP/ISE to 4-20mA interface board (transmitter). with modify enclosure with Din-Rail clip and TB

EID-CONVER-TER-PHX420-RD

$297.54

CONVERTER-PHX420 pH/ORP/ISE to 1-5VDC interface board (transmitter.)

EID-CONVER-TER-PHX1TX5-R1

$285.39

CONVERTER-PHX420 pH/ORP/ISE to 1-5VDC interface board (transmitter.) with modify enclosure with Din-Rail clip + 4 6" wires

EID-CONVER-TER-PHX1TX5-RD

$297.54

CONVERTER-PHX420 pH/ORP/ISE to 2-10VDC interface board (transmitter.)

EID-CONVER-TER-PHX2T10-R1

$285.39

CONVERTER-PHX420 pH/ORP/ISE to 2-10VDC interface board (transmitter.) with modify enclosure with Din-Rail clip + 4 6" wires

EID-CONVER-TER-PHX2T10-RD

$297.54

  •
