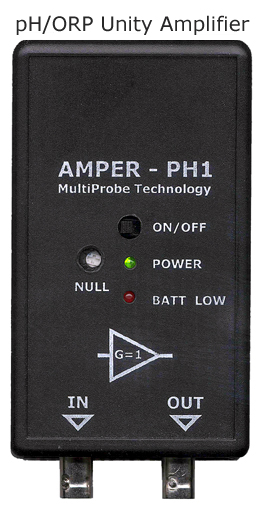

AMPER-PH1  - pH/ORP Unity Amplifier



The AMPER-PH1 system is designed to perform impedance matching with unity gain measurement functions between pH or ORP electrode, and DVM (Digital Volt Meter) or ADC (Analog to Digital Converter). If used properly, it will eliminate the need for an expensive pH meter which would otherwise be needed to carry out the same tasks.



AMPERER-PH1 Battery operated (Standard 9V) and it easy to install, setup and operate. If you want to do professional pH related data acquisition and analysis, AMPER-PH1 offers the features you need.

AMPER-PH1 Features

  • BNC Connector on both Input and Output.

  • Offset Null adjustment

  • On/Off switch

  • Power indicator (Green LED)

  • Low Battery Indicator (red LED)

  • Operate from standard 9V battery

  • 3' BNC to BNC (male to male) cable connection optional

  • High input impedance

  • Low output impedance

  • Calibrated directly from the front panel.

  • EID - MultiProbe Technology

  • Easy configuration menu.

  • Small size unit fits almost anywhere, on your laboratory table on in the field.

  • Compatible with pH and ORP sensors from many sensor manufacturers.

  • Linear scale at +/- 2000mV

  • Rated for full -2 to 19.999 pH range.

  • Operates on low voltage and low current.

Specifications

  • Capacity                               1 Channel per unit.

  • Built in power supply                Floating +/- 4.5 [VDC]

  • Input voltage scale                 +/- 2500.000 [mV]

  • pH scale                               -2 to 19 [pH]

  • Dimension                              4.75” x 2.5” x 1”

  • Max power consumption           1W

  • Storage temperature               40 - 70 [F]

  • operating temperature             50 - 70 [F]

  • DVM connection via                 BNC (female type)

  • low board DC voltage               9 [V]

  • Range (linear factor)                +/- 2500 [mV]

  • Resolution                              Up to 0.01 [mV]

  • Relative accuracy                    Up to +/- 0.005 [mV]

Pricing



* Prices and colors are subject to change without notice.

   Additional 10% discount with student ID USA only.



Description

SKU #

Price

AMPER-PH1 pH Unity gain amplifier voltage to voltage 9V battery clip. Exclude 9V battery!

EID-AMPER-PH1-A001

239.73

AMPER-PH1 OPERATION MANUAL (OEM)

EID-AMPER-OPM-0001

16.99

BNC TERMINATION CAP (OPTION)

EID-0PROBER-0BNC-0002

4.99

TRAINING (OPTION, PER HOUR)

EID-0PROBER-00PH-0000

49.34

  •
