CHECKER-PH3X  - OEM pH simulator



The CHECKER-PH3X system is designed to perform pH electrode simulation function. Simulated standard buffers both US (NIST) and European. If used properly, it will eliminate the need for an expensive pH meter which would otherwise be needed to carry out the same tasks.



CHECKER-PH3X are battery operated (Standard 9V) or external low voltage AC power source and it easy to install, setup and operate. If you want to do professional pH related data acquisition and analysis, CHECKER-PH1 offers the features you need.

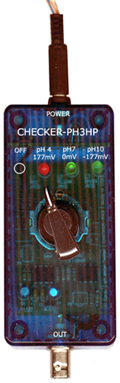

1. CHECKER-PH3HP, external powered, handheld

    Polycarbonate body pH simulator (pH4, pH7 &

    pH10).

2. CHECKER-PH3H, battery powered, handheld ABS

    body pH simulator (pH4, pH7 & pH10).

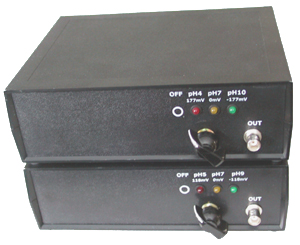

3. CHECKER-PH3D/E, external powered, desktop ABS

    body pH simulator. (US model pH4, pH7 & pH10,

    European model & pH5, pH7 & pH9).

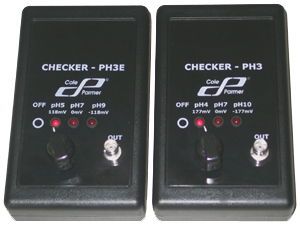

4. CHECKER-PH3/E, battery powered, handheld ABS

    body pH simulator. (US model pH4, pH7 & pH10,

    European model & pH5, pH7 & pH9). Manufactured

    by us to the flagship distributor Cole-Parmer-

    Instrument Company (C-P).



3



 1                          2













                    4                             5

CHECKER-PH3X Features

  • BNC Output Connector.

  • 3 positions front mounted pH (mV simulation) selected knob.

  • On/Off switch via front mounted knob (all the way to the left)

  • Power indicator (for each pH)

  • Operate from standard 9V battery or EID power source (brick) adapter.

  • 3' BNC to BNC (male to male) cable connection optional.

  • High output impedance.

  • Set directly from the front panel.

  • EID - MultiProbe Technology

  • Easy configuration one switch.

  • Small size unit fits almost anywhere, on your laboratory table on in the field.

  • Compatible with pH and ORP electrodes from many sensor manufacturers.

  • Linear scale at 25C.

  • Rated for pH4, pH7 & pH10 US models and pH5, pH7 & pH9 European models).

  • Operates on low voltage and low current.

Specifications

  • Built in power supply                  Floating +/- 4.5 [VDC]

  • Output voltage scale US             +/- 177 [mV] and 0 [mV]

  • Output voltage scale Europe       +/- 118 [mV] and 0 [mV]

  • pH scale US                             4, 7 & 10 [pH]

  • pH scale US Europe                   5, 7 & 9 [pH]

  • Max power consumption             0.25W

  • Storage temperature                 40 - 70 [F]

  • operating temperature               50 - 70 [F]

  • pH meter or DVM connection via  BNC (female type)

  • low board DC voltage                 9 [V]

  • Range (linear factor)                  +/- 1 [mV]

  • Resolution                                Up to 0.1 [mV]

  • Relative accuracy                      Up to +/- 0.5 [mV]

Pricing



* Prices and enclosure colors are subject to change without notice.

   Additional 10% discount with student ID USA only.



Description

SKU #

Price

CHECKER-PH3 for C-P (US model)

EID-CHK-PH3-A0CP-HH-BAT

SRP-139.99

CHECKER-PH3E for C-P (European model)

EID-CHK-PH3-E0CP-HH-BAT

SRP-139.99

CHECKER-PH3H OEM (US model)

EID-CHK-PH3-AOEM-HH-BAT

129.99

CHECKER-PH3EH OEM (European model)

EID-CHK-PH3-EOEM-HH-BAT

139.99

CHECKER-PH3PHE (US model) Blue

EID-CHK-PH3-AOEM-HH-PWR

152.99

CHECKER-PH3D (US model)

EID-CHK-PH3-AOEM-DT-PWR

152.99

CHECKER-PH3DE (US model)

EID-CHK-PH3-EOEM-DT-PWR

156.99

CHECKER-PH3X OPERATION MANUAL

EID-CHK-OPM-0001

16.99

BNC TERMINATION CAP (OPTION)

EID-CHKER-BNC-0003

4.99

TRAINING (OPTION, PER HOUR)

EID-0PROBER-00PH-0000

49.34
