Trimmer (Trimming Potentiometer) is a small device for measuring, comparing, or controlling electric potentials; specifically, a kind of resistor that can be varied, as in a rotary device used to control the volume of a radio, TV, etc. They perform a variety of circuit adjustments in all types of electronic equipment. Around the world, trimmers are used in virtually every electronic market. We are proudly using Trimpot^® single and multi-turn trimmers by Bourns Inc. Both in our industrial standard interface board, as well as electronic DIY kits. These ensure easy calibration with high accuracy.

Multi-turns Trimmers (MT Trimmers) specifications:

Manufacture                                Bourns® Trimmers Sires 3296W

Rotational Life                              200 Cycles

Number of Turns                           25 Turns

Power Rating                                0.5 Watts

Mounting Type                             Through-hole, 3 Pins

Resistance value in stock               100 Ohms, 500 Ohms, 1K, 2K, 10K, 5K, 50K, 100K & 500K

Tolerances                                   ±10%

CRV/ENR                                      1% or 3 Ohms (whichever is greater)

Temperature Coefficient                 ±100ppm/°C

Construction                                Sealed

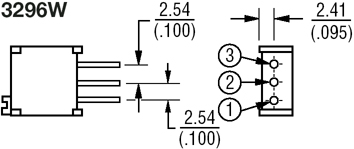

Multi-turns Trimmers Mechanical drawings:

Dimension are mm/Inches

Packaging:

* Standard 50 Pc. per rails.

* Please be advised that minimum MT trimmers soled in bundle of two plastic rails (100pc).

Description and SKU#

Price per

100pc.

Price per

1000pc.

Bourns Inc. P#


Trimmer Bourns, 100 ohms Linear multi-turns

EID-T-TRM-100-MT

$135

$1,189

3296W-1-100

3296W

By directly from our large inventory and save!

Trimmer Bourns, 500 ohms Linear multi-turns

EID-T-TRM-500-MT

$140

$1,250

3296W-1-500

Trimmer Bourns, 1K Linear multi-turns

EID-T-TRM-01K-MT

$120

$1,100

3296W-1-102

Trimmer Bourns, 2K Linear multi-turns

EID-T-TRM-01K-MT

$102

$895

3296W-1-202

Trimmer Bourns, 5K Linear multi-turns

EID-T-TRM-05K-MT

$100

$895

3296W-1-502

Trimmer Bourns 10K Linear multi-turns

EID-T-TRM-10K-MT

$100

$895

3296W-1-103

Trimmer Bourns 50K Linear multi-turns

EID-T-TRM-50K-MT

$100

$895

3296W-1-503

Trimmer Bourns 100K Linear multi-turns

EID-T-TRM-100K-MT

$100

$895

3296W-1-104

Trimmers Bourns 500K Linear muli-turn

EID-T-TRM-500K-MT

$150

$1,200

3296W-1-504

  ^•
