Electrical Enclosures (NEMA Rated)



All Electrical Enclosures are in stock. Choose from light or heavy duty NEMA Enclosures. When a standard enclosure isnít exactly what you need, we can have it modified for the ideal enclosure solution. We can cut, mill paint and drill them for you to fit your needs-- Good news for the hundreds who call about the "Hammond Manufacturing" line of products, Quality Products since 1917! Yes, we carry the flagship electrical enclosures, racks, aluminum, plastic and metal enclosures by Hammond Manufacturing TM.







NEMA 1, 3, 3R, 4, 4X, 12 & 13 Rated Electrical Enclosures



NEMA Industry Definitions (NEMA Standards) Where; Definitions Pertaining to Non-Hazardous Locations:



Type 1 Enclosures are constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).



Type 3 Enclosures are constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts, to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt) and windblown dusty, to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow), and that will be undamaged by the external formation of ice on the enclosure.



Type 3R Enclosures are constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts, to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt) to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow), and that will be undamaged by the external formation of ice on the enclosure.



Type 4 Enclosures are constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts, to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dusty, to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water), and that will be undamaged by the external formation of ice on the enclosure.



Type 4X Enclosures are constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts, to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dusty, to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water), that provides an additional level of protection against corrosion, and that will be undamaged by the external formation of ice on the enclosure.



Type 12 Enclosures are constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts, to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flying), and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).



Type 13 Enclosures are constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts, to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flying), to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing), and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.



Protection Rating - Quick Selection Guide



Provides a Degree of Protection Against:

Type 1

Type 3R

Type 12

Type 13

Type 4

Type 4X

Contact with Enclosed Equipment

Falling Dirt

Falling & Lightly Splashing Water

Dust

Oil & Coolant

Sleet & Ice

Splashing Water &
Hose-Down

Corrosives



Industry and the Products they use



The following is a list of those industries with the enclosures most commonly used by them.


Industry

Examples of Products Used

Utilities, Municipalities (water/waste water)

Industrial Enclosures, Non Metallic NEMA 2 & 4X

Saw Mills, Pulp & Paper, Mining

Industrial Disconnect, Freestanding, Corrosion Resistant

Farm, Irrigation Systems

Corrosion Resistant, Non Metallic NEMA 4X

Transportation Industries

Industrial Enclosures, Aluminum NEMA 12 & 4

Marine, Naval, Canadian Forces

Industrial, Freestanding NEMA 4, Non Metallic & Stainless Steel

General Industries

Industrial Modular Operator Interface

Process Industries (oil, chemical, food processing)

Industrial Corrosion Resistant, 316 Stainless Steel



Information Specific to Enclosures


Electrical enclosures shown in our web site are designed for industrial electrical applications and as such should be selected, transported, handled, installed, and re-fabricated by qualified professional electricians. These products are not intended for resale or repackaging for household applications or use by the general public. All applications of these products should be in accordance with proper inspections, test approvals, warnings, notices, and instructions as indicated by Consumer Product Safety Regulations and all other applicable local, state, provincial, and federal laws.



The supplied enclosures built to the 3rd party specifications (i.e. UL, CSA) as noted in this web site. We offers no guarantee or warranty as to the applicability of our products outside these specifications. If you have any concerns about the appropriate enclosure selection for your application, please contact EID for advice regarding the variables in your particular situation.

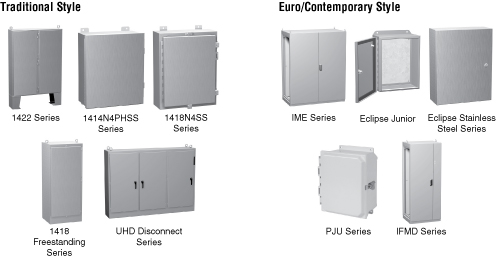

Electrical Enclosures Two Design Styles



The application or use normally decides the style. For example, if frequent opening is required, the new 1/4 turn contemporary design is faster and easier than removing the compression clamps. If the application demands heavy equipment mounted to the doors or large cutouts that weaken the door structure, a heavy duty traditional style is recommended. We offers for sale a variety of both Traditional and Euro/Contemporary designs with various NEMA ratings, material types and features.



- Traditional Design


Traditional design is generally heavy duty or severe environment conditions.


- Euro or Contemporary Design


Euro/Contemporary design is generally used for appearance, ease of entry or for use with modular accessories.

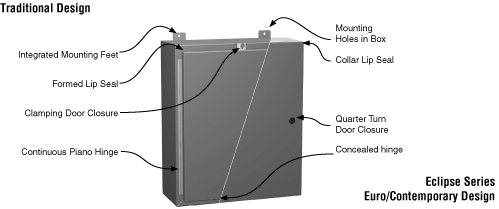

EID-1418 Series Traditional Design

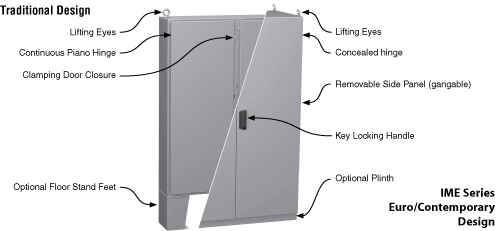

EID-1422 Series Traditional Design



Features and Benefits of Enclosure Types



Features

Traditional

Euro/Contemporary

Enclosure Types

Wall-mounts, Floor-mounts, Freestanding

Wall-mounts, Floor-mount Modular

NEMA Rating

Type 12, 4 & 4X

Type 12, 4 & 4X

Material Type

Mild Steel, Stainless Steel, Non-metallic

Mild Steel, Stainless Steel, Non-metallic

Finish

Mild Steel
ASA 61 Gray exterior
White interior
Stainless Steel - brushed
Non-metallic - Medium Gray

Mild Steel
ASA 61 Gray Exterior
RAL 7035 interior/exterior
Stainless Steel - brushed
Non-metallic - Medium Gray

Hinges

Continuous piano hinge
advantage - greater strength

Concealed hinge
advantage - easily removable

Door Closure

Clamps, screws or handle
advantage - maximum surface area

Quarter Turn - 2 or 3 point handle
advantage - easily accessible entry

Padlocking

Comes standard on enclosure

Accessory padlock adaptor available

Mounting Options

Integrated mounting feet

Holes through box or optional feet

Lip Construction

Flat or formed lip seal

Flanged trough collar (FTC) lip seal

Inner Panel

White inner panel included

White or galvanized inner panel available as an accessory*

* Eclipse Junior Series includes a galvanized inner panel. IME Series includes white inner panel.





In-house added value services:

  • 24 hour turn around milling and drilling.

  • Custom Electrical Enclosure. Just send us your schematics and let our team of engineers build it.

  • Custom CNC cuts available.

  • Pad printing up to 3" * 2" in size, variety of colors.

  • Assembly capabilities.

Electrical Enclosures high-end materials:

  • Aluminum

  • Steel

  • Stainless Steel

  • Non-Metallic

Minimum order:



$3,000.



New, free shipping! (US only) for any racks order above $12,000



How to  order Electrical Enclosures:



E-mail us at sales@eidusa.com with EID's Electrical Enclosure part number (p#), and we'll promptly provide you with a quote. Or contact our sales or customer service department (704) 366-HELP (4357). Please state the Part number (P#EID-XYZ) or Series you deem appropriate and quantities on the e-mail subject line.
