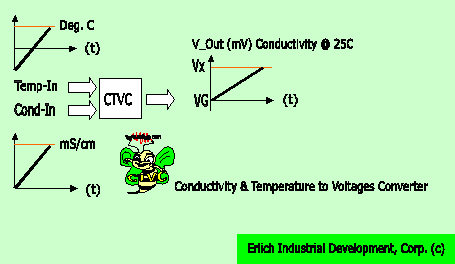

CONVERTER – CNDX. Conductivity cell K=1 with 10K@25C thermistor interface board, with built- in temperature compensation.
The CONVERTER-CNDX board is designed to perform conductivity measurement to voltage conversion. If used properly, it will eliminate the need for expensive board or conductivity meter, which would otherwise be needed to carry out the same tasks.
The CONVERTER-CNDX is easy to install, setup and operate. If you want to do professional remote conductivity measurement related functions, The CONVERTER-CNDX offers the features you need. Mounted easily via four 0.125" mounting holes.
Simply connect the board to 9VDC or 9V battery connect your conductivity cell to the input and our board will convert it to voltage. ie. for input equal to 1413 uS/cm the output voltage is 1413 mV.
Note: Enclosure and mounting screws are sold separately.

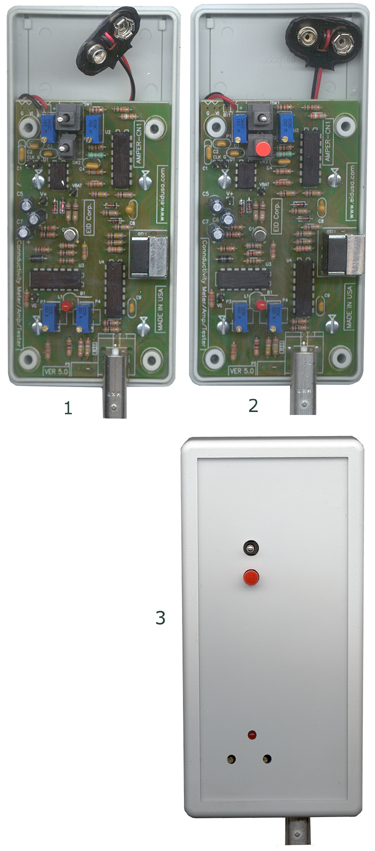

1. Shown with three positions power switch; momentary, off and on. 2. Shown with momentary push button power switch 3. Shown mounted in EID-1599 series enclosure (sold separately)
* For our big selection of conductivity cells click hear
On the right picture is our EID-1599 series enclosure with wall mounting holes (fit any US industrial standard outlet). This optional configuration includes the 9V power simulator as well as the conductivity interface board.
|
1. 0-200 uS/cm fine adjustment 2. range select: 0-200 uS/cm 0-2000 uS/cm 0-7 mS/cm 3. 0-2000 uS/cm fine adjustment 4. Multi-positions power switch 5. LED power indicator 6. Zero adjustment 7. Calibration adjustment 8. Output via BNC connector 9. Input via mini-DIN6 connector
On the left picture is our 9V battery simulation. board, shown mounted in plastic enclosure (EID-1593 series enclosure). The board design to attenuate filter and regulate 10-24V DC or AC to stable 9V DC.
For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here
|
|
|
OEM conductivity board
The OEM custom board is provided with wires (option) for remote applications. Simply connect it to your PLC or Controller and control the conductivity of your aqua solutions.
* For OEM conductivity board 0-3500uS/cm with build-in power regulator (see below). Information, wiring and calibration click here
Above picture is our OEM 0-3500uS conductivity board with build-in power regulator. The board, shown mounted in plastic enclosure (EID-1599 series enclosure).
The above board configuration is design to attenuate filter and regulate 11-24V DC, 11-16V AC or 12V car battery (for field applications) to stable 9V DC.
For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here
Note: Wires, enclosure and five mounting screws are sold separately.
NEW OEM configured for cell via terminal blocks (TB)
Available settings for K=0.1, 0.5, 1, 10 with and without TC
CONVERTER-CNDX Features
On board multi-turn trimmers facilitates precise calibration of output voltage
Specifications
|
||
|
Pricing
* Prices, SKU#, P# and colors are subject to change without notice. Additional 10% discount with student ID, USA only. |
||
|
Description |
SKU # |
Price |
|---|---|---|
|
CONVERTER-CND1 Conductivity cell to voltage converter with push button power switch |
EID-CONVER-CND-PUSH |
$279.00 |
|
CONVERTER-CNDS Conductivity cell to voltage converter with 3 positions power switch |
EID-CONVER-CND-3SWT |
$299.00 |
|
CONVERTER-CND2 Conductivity cell 0-2000uS/cm to voltage converter with push button power switch |
EID-CONVER-CND-2000 |
$249.00 |
|
CONVERTER-CNDW Conductivity cell to voltage converter with push button power switch end wall mounted enclosure. Power via 11-18V DC or AC. |
EID-CONVER-CND-WALL |
$339.00 |
|
CONVERTER-CNDB Conductivity cell to voltage converter Enclosure |
EID-CONVER-CND-ENCL |
$29.00 |
|
Battery simulator, Input up to 24V DC output +9VDC /0.5A Fully assembled |
EID-K-VRG-09VA |
$32.00 |
|
|
||
