CONVERTER – CNDD2. Industrial conductivity to voltage converter, with built- in temperature compensation. and LCD display.



The CONVERTER-CNDD2 board is designed to perform conductivity cell readings to voltage conversion. If used properly, it will eliminate the need for expensive board or conductivity meter, which would otherwise be needed to carry out the same tasks.



The CONVERTER-CNDD2  is easy to install, setup and operate. If you want to do professional remote conductivity measurement related functions, The CONVERTER-CNDD2 offers the features you need. Mounted easily via four 0.125" mounting holes.



Simply connect the board to 10-24V DC or AC connect your conductivity cell to the input and our board will convert it to voltage. ie. for  input equal to 1413 uS/cm the output voltage is 1413 mV. the display will read 1413uS.



Note: Enclosure and mounting screws are sold separately.

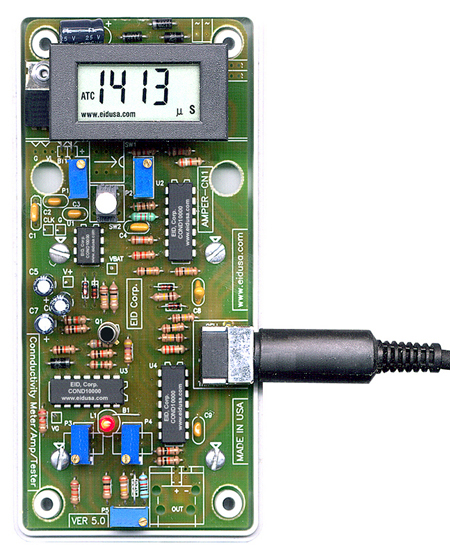

1. Shown on the right mounted in plastic enclosure (EID-1593 series enclosure). The board design to attenuate filter and regulate 10-24V DC or AC to stable 9V DC.



For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here



* For our big selection of conductivity cells click hear









ELECTRODER - ABS body Conductivity 2 Cells Electrode (AC2)

Conductivity electrode, ABS body,  2 cells carbon (graphite) plates, K=1 with 10K Ohms thermistor



For our big selection of conductivity cells click hear



For our stat of the art line of Industrial conductivity electrodes click here





CONVERTER-CNDD2 Features



  • Built-in power LED indicator.

  • Zero output multi-turn trimmer adjustment.

  • Calibration multi-turn trimmer adjustment.

  • 0-200 uS/cm multi-turn trimmer adjustment. (option).

  • 0-7 mS/cm multi-turn trimmer adjustment (option).

  • Multi positions power switch (shipped standard push button power switch)

  • Power via 9V DC or 9V industrial standard battery.

  • Converts uS/cm or mS/cm to Voltage.

  • Built in temperature compensation

  • Accommodate any EID conductivity cell K=1 with 10K thermistor.

  • Can be customized to accommodate your requirement.

  • Industrial Standard output, ideal for remote sensing applications.

  • Linear voltage output.

  • Built in oscillator (cell driver)

On board multi-turn trimmers facilitates precise calibration of output voltage



Specifications

  • Input                                      Rated to 0-10mS/cm

  • Output Voltage                         0 – 2V standard, calibrated for 1413mV with 1413 uS/cm input @ 25C

  • PCB material                             FR4

  • Input Filter                               L.P.F. 40 to 100Hz

  • Max power consumption              0.25W

  • Temp. Compensation:                set for 10K ohms thermistor

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 9 [V]

  • Power source                            9VDC +/-5%, 50/60Hz, 0.6VA or  9VDC battery

  • Power indicator                          LED Red

  • Adjustment                               Via trimmers

  • Mounting                                  Four 0.125” holes

  • Manufactured                            100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

CONVERTER-CNDD2  0-2000uS Conductivity meter (OEM) Power via 11-24VDC.

EID-CONVER-CND-DMET2

$329.00

Conductivity cell. ELECTRODER-AC2 and  CONVERTER-CNDD2 conductivity meter board  combination

EID-INTERF-ACE-CNDDP-AC2

$399.99

CONVERTER-CNDDB  Conductivity cell to voltage converter Enclosure

EID-CONVER-CNDD-ENCL

$29.00

  •
