The Class 2 Type Transformers BP series. Class 2, plug in, energy limiting transformers.





Key Features:

  • Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.

  • Enclosed in an attractive plug in black plastic case.

  • For indoor use only.

  • Input 120VAC - 20 VA units are inherently limited - no fuses or circuit breakers, 40 VA units use an internal slow blow fuse.

  • Secondary - 2 recessed slot head screw terminals (on plug side).

  • All models - 60 Hz.

  • CSA certified (#LR33322) and UL listed (#E84592)

P#

A.C. Input
(Primary)
V (RMS)

A.C. Output Secondary (RMS)

Power Rating
VA

V

A

EID-BPD2E

120

12

1.67

20

EID-BPD2EE

120

14

1.43

20

EID-BPD2F

120

16

1.25

20

EID-BPD2FF

120

18

1.11

20

EID-BPD2G

120

24

0.83

20

EID-BPE2E

120

12

3.33

40

EID-BPE2EE

120

15

2.86

40

EID-BPE2F

120

16

2.50

40

EID-BPE2FF

120

18

2.22

40

EID-BPE2G

120

24

1.67

40

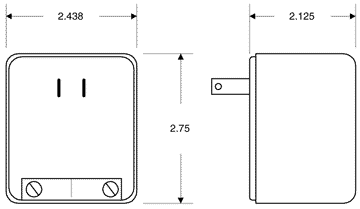

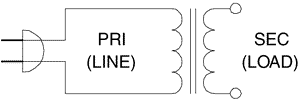

Mechanical & Schematic Data:



20VA

40VA
