Plastic Hand Held Enclosures (EID-1599 "S" Series) Polystyrene Version

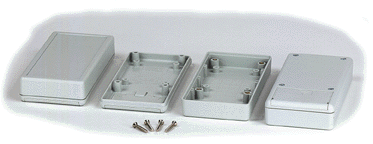

1599 Photo



Features and benefits:

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.

  • Molded from economical high impact polystyrene.

  • Recessed top for membrane display or pad.

  • Lap joint construction provides protection against access of dust and splashing water.

  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.

  • Designed to meet IP54.

  • Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.

Economical Polystyrene Plastic



Part Number

Color

Battery Door

1-99

100-1K

Units

Length

Width

Enclosure Depth (Includes Lid)

EID-1599BSGY

Grey

No





Inches

5.12

2.56

0.97

mm

130

65

25

EID-1599BSGYBAT

Grey

Yes





Inches

5.12

2.56

0.97

mm

130

65

25

EID-1599ESGY

Grey

No





Inches

6.70

3.35

1.33

mm

170

85

34

EID-1599ESGYBAT

Grey

Yes





Inches

6.70

3.3

1.33

mm

170

85

34

EID-1599HSGY

Grey

No





Inches

8.66

4.33

1.73

mm

220

110

44

EID-1599HSGYBAT

Grey

Yes





Inches

8.66

4.33

1.73

mm

220

110

44

EID-1599KSGY

Grey

No





Inches

8.66

5.5

1.60

mm

220

140

40.5

EID-1599KSGYBAT

Grey

Yes





Inches

8.66

5.5

1.60

mm

220

140

40.5



versions use self tapping
screws. Perfect where economy is important
and where repetitive assembly and
disassembly of lid is not vital.

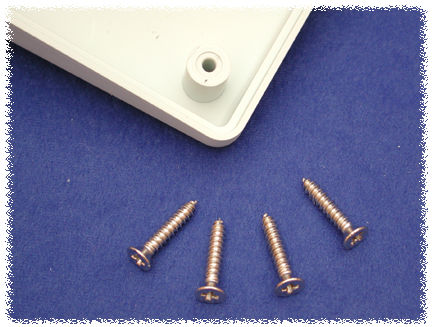

Self Tapping Lid Screws



Battery Door Information



Part numbers above ending in "BAT" include a battery door (shown below)

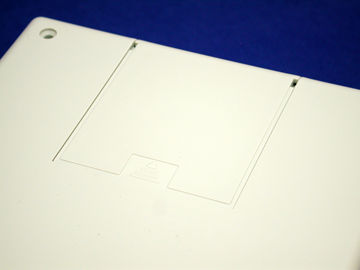

Closed Battery Door

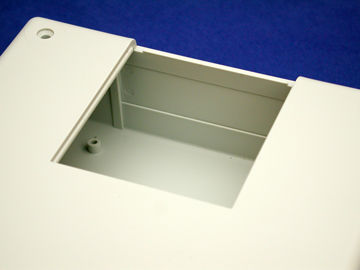

Open Battery Door

Battery Door Closed

Battery Door Open



Accessories:

Screws:

  • Accessory screws for mounting P.C. boards into standoffs (#4 x 1/4" pan head) P/N EID-1593ATS50 (qty. 50), P/N EID-1593ATS100 (qty. 100).

  • Replacement self tapping screw, used in polystyrene EID-1599BS series (i.e. without brass inserts). #4 x 3/4" EID-1599BTS100 - Package of 100

  • Replacement self tapping screw, used in polystyrene EID-1599ES, HS & KS series (ie...without brass inserts). #4 x 5/8" EID-1598TS100 - Package of 100

Belt / Pocket Clip Option:



Click Here To Enlarge



  • Molded from tough nylon.

  • Includes 2 nylon screws (insulated to avoid internal interference).

  • Mounting template included.

Black - Part Number EID-1599CLIP
Grey (shown) - Part Number EID-1599CLIPGY



Battery Holder Kits:

  • Designed for our battery door enclosure (i.e. part numbers ending in BAT).

  • Kits include all the parts required to install the battery or batteries.

  • Kit includes the battery holder, wires, divider and foam anti-rattle pad.

Part Number

Battery Holder Kit For:

Fits Battery Door Enclosure Size:

EID-BH1AAWKIT

1 AA Cell

EID-1599B & EID-1599E series

EID-BH2AAWKIT

2 AA Cells

EID-1599B & EID-1599E series

EID-BH1AAAWKIT

1 AAA Cell

EID-1599B & EID-1599E series

EID-BH2AAAWKIT

2 AAA Cells

EID-1599B & EID-1599E series

EID-BH3AAAWKIT

3 AAA Cells

EID-1599E size only

EID-BH4AAAWKIT

4 AAA Cells

EID-1599E size only

EID-BS61KIT

1 - 9V Cell

EID-1599B & EID-1599E series



Battery Dividers:

  • Grey ABS plastic panel barriers which insert vertically into the P.C. card guides

Part Number (Package of 5)

Part Num. (Package of 100)

Use With Enclosure Series:

EID-1599BD5

EID-1599BD100

EID-1599B

EID-1599ED5

EID-1599ED100

EID-1599E

EID-1599HD5

EID-1599HD100

EID-1599H



Notes:

  • All Dimensions in inches & mm

  • A black nylon belt/pocket clip (Part Number EID-1599CLIP) or in gray nylon (Part Number EID-1599CLIPGY) is also available (see photo below).

  •
