OEM - INTERFACER – HIVV1, High impedance interface board calibration, information and more...
High impedance interface board accommodating pH, ORP and Ion selective electrodes.
The OEM custom board is provided with wires (option) for remote applications. Simply connect it to your PLC or controller and control the pH, ORP or ISE of your solutions and buffers.
|
|
Board mounting & wiring
Mounted easily via four or four 0.125" mounting holes. The board design to fit in EID-1593 series enclosure. Use 4-40 screws 0.25 long to mount it to the enclosure.
* Connect Input wires to electrode direct or via BNC connectors (female and male type)
* Connect output wires to PLC, ADC or voltmeter
* Connect PWR to 11-24VDC or 11-18VAC or 12V car battery
Shown above mounted in EID-1593 Enclosure, and connected to pH electrode (left)
Note: Wires, enclosure, connectors, electrode and four mounting screws are sold separately.
* For EID-1593 enclosure series click hear
OEM Configure it your way
Shown above (rear & side view) EID-1593 Enclosure with DIN-RAIL-CLIP option, BNC input and wires

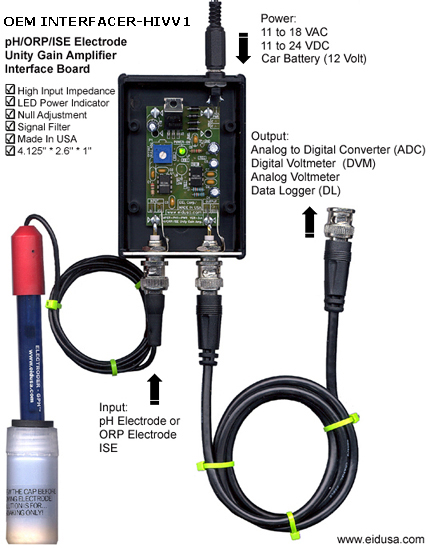

Shown above mounted in EID-1593 Enclosure, BNC input and Output/Power wires Without front cover, shown with all options

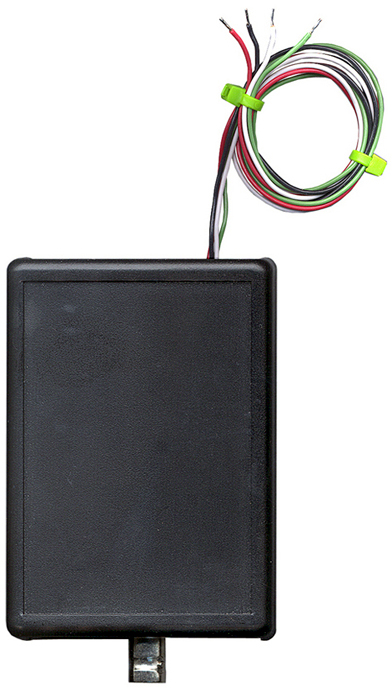

Shown above mounted in EID-1593 Enclosure, BNC input and Output/Power wires With front mounted cover Specific design to application in the water-treatment center operate on 24V AC or DC

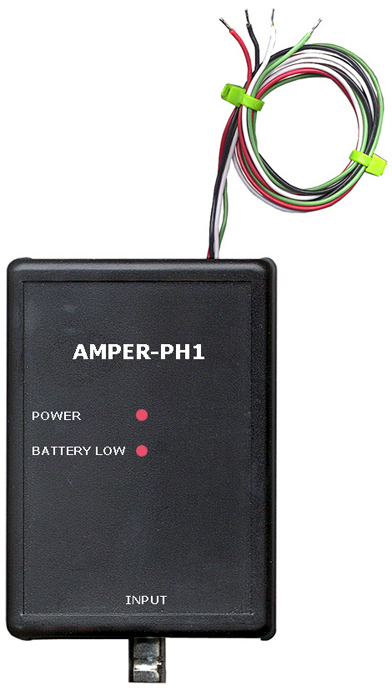

Shown above mounted in EID-1593 Enclosure, BNC input and Output/Power wires With front mounted cover with both power and battery low indicators (LED, many colors are available) Specific design to application in the field that operate on 12V battery and/or 12V solar panels

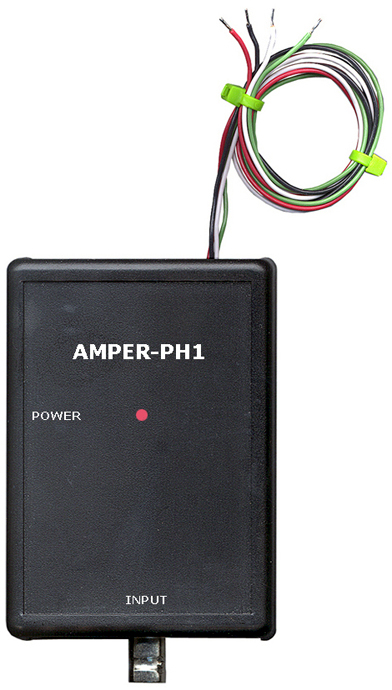

Shown above mounted in EID-1593 Enclosure, BNC input and Output/Power wires With front mounted cover with power indicators (LED, many colors are available) Specific design for ground water application operate on 12V or 24V DC
Shown above mounted in EID-1593 Enclosure, BNC input and Output/Power wires With front mounted cover with power indicators (LED, many colors are available) Specific design to any industrial and laboratory and field application This OEM board/enclosure will carry your logo, and/or any other print you will deem appropriate for your product
Note: Wires, DIN-Rail-Clip, enclosure, and four mounting screws are sold separately.
* For EID-1593 enclosure series click hear * For EID-1427DINCLIP DIN RAIL mounting clip click hear
Board power supply information
Power via 11-24VDC or 11-16VAC or 12V car battery.
Note: Power down transformer sold separately.
* For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here
Electrodes information
The board is designed to measure voltage of high impedance glass electrodes (10^14).
* For our big selection of pH electrode click hear
* For our big selection of ORP electrode click hear
* For our big selection of ISE electrode click hear
Calibrations
Please be advised that electrode wire connections to the board can be done either via the BNC female type connector, or electrode wires can be soldered directly to the board (corresponding connector pins).
1. Short input
2.
Connect and power the board via 11-24VDC or 11-16VAC or 12V car battery.
3. Power the board for about 30 – 90 seconds. At the same time, take a output reading with high accuracy volt meter and set ofset-null (P1) trimmer (100K ohms trimmer) so the output voltage is 0.000mV
4. turn the power off, remove input short, and connect your electrode.
5.
Insert the cell into unknown solution, power the board, and get corresponding voltage
readings.
