INTERFACER-HIVV1 - High Impedance Input voltage to voltage converter.



The INTERFACER-HIVV1 board is designed to perform unity gain amplification when high impedance input is apply such as pH, ORP or ISE measurements. If used properly, it will eliminate the need for expensive meter, which would otherwise be needed to carry out the same tasks.



INTERFACER-HIVV1  is easy to install, setup and operate. If you want to do professional voltage measurement related functions, INTERFACER-HIVV1 offers the features you need. Mounted easily via four 0.125" mounting holes.

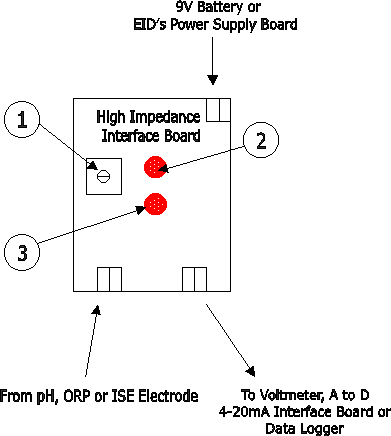

1. Offset- Null Adjustment

2. LED Power on indicator

3. LED low battery indicator

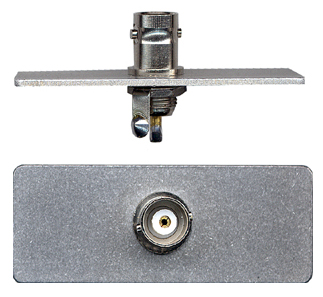

On the right is our mounting panel with BNC connector Front and side view (soled separately).



For panel/board mounting enclosure click here

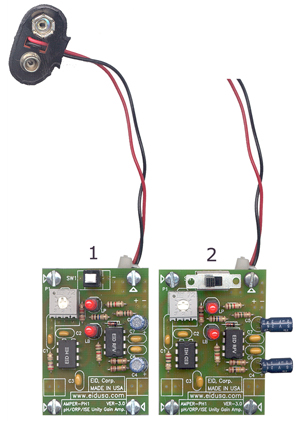

1. Shown above with 9V Battery Clips.

2. Shown above with Slide Switch in for flat

    mounting.







On the left picture is our 9V battery simulation. board, shown mounted in plastic enclosure (EID-1593 series enclosure). The board design to attenuate filter and regulate 10-24V DC or AC to stable 9V DC.



For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here







INTERFACER-HIVV1P

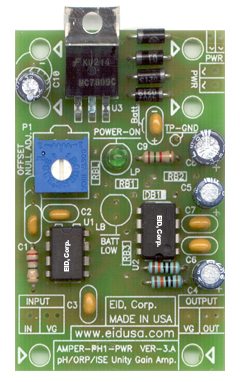

with built-in power regulator. operate on 11-24VDC or VAC






OEM high impedance input unity gain amplifier board



The OEM custom board is provided with wires (option) for remote applications. Simply connect it to your PLC or Controller and read the mV of your electrode.



* For OEM pH/ORP/ISE unity gain amplifier board with build-in power regulator (see below). Information, wiring and calibration click hear.

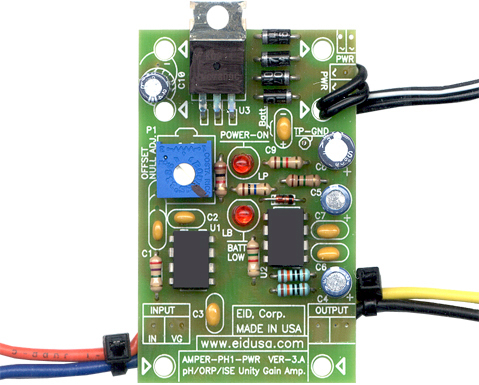

Above picture is our OEM board with build-in power regulator. The board, can be mounted in plastic enclosure (EID-1593 series enclosure) see picture application not #39



The above board configuration is design to attenuate filter and regulate 11-24V DC, 11-16V AC or 12V car battery (for field applications) to stable 9V DC.



For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here



Note: Wires, enclosure and mounting screws are sold separately.



OEM Configure it your way

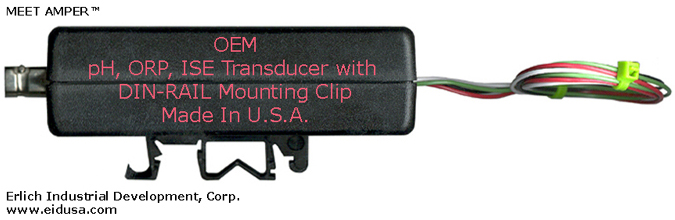

Shown above (rear & side view) EID-1593 Enclosure with DIN-RAIL-CLIP option, BNC input and wires





Shown above mounted in EID-1593 Enclosure, BNC input and Output/Power wires

Without front cover, with all options






INTERFACER-HIVV1 Features



  • Built-in power and low battery LED indicator.

  • Unity gain amplifier.

  • Power switch option.

  • Offset null adjustment via trimmer.

  • Also, designed to operate from 12VDC car battery via Our 12v to 9V adapter for remote applications.




Specifications

  • Input resistance                      > 10^14 Ohms

  • Input voltage                          +/-2.5V

  • Output voltage                        +/-2.5V

  • PCB material                             FR4

  • Output Voltage                        Float

  • Max power consumption            0.1W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60C) @ 95% RH

  • Low board DC voltage                9 [V]

  • Power source                          9V battery or EID's 9V voltage simulator

  • Power indicator                        LED Green

  • Battery indicator                      LED Red

  • Manufactured                          100% in USA
