INTERFACER-HIVV2 - Dual High Impedance Input voltage to voltage converter, with built in power supply.

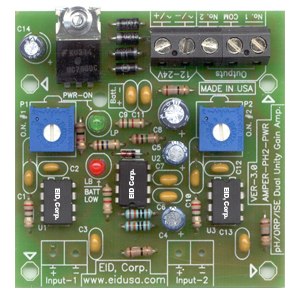

The INTERFACER-HIVV2 board is designed to perform dual unity gain amplification when high impedance input is apply such as pH, ORP or ISE measurements. If used properly, it will eliminate the need for expensive controller or meter, which would otherwise be needed to carry out the same tasks.



INTERFACER-HIVV2  is easy to install, setup and operate. If you want to do professional voltage measurement related functions, INTERFACER-HIVV2 offers the features you need. Mounted easily via four 0.125" mounting holes.



The board input power design to attenuate, filter, and regulate 10-24V DC or AC to stable 9V DC.



For our 110V or 220V to 12VAC power down transformer (Class 2 Type Transformers EID-BP series) click Here

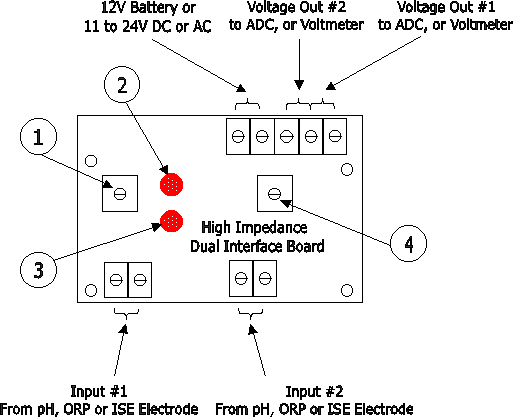

1. Offset- Null Adjustment Input #1

2. LED Power on indicator

3. LED low battery indicator

4. Offset- Null Adjustment Input #2



INTERFACER-HIVV2 Features



  • Built-in power and low battery LED indicator.

  • Dual Unity gain amplifier.

  • Offset null adjustment via trimmer for each channel.

  • Also, designed to operate from 12VDC car battery for remote applications.

Specifications

  • Input resistance                      > 10^14 Ohms

  • Input voltage                          +/-2.5V

  • Output voltage                        +/-2.5V

  • PCB material                             FR4

  • Output Voltage                        Float

  • Max power consumption            0.3W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               9 [V]

  • Power source                          11-24V DC or AC

  • Power indicator                        LED Green or Red

  • Battery indicator                      LED Red

  • Manufactured                          100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

INTERFACER-HIVV2 Dual Unity gain amplifier voltage to voltage

EID-INTERF-ACE-HIVV2

$229.50

INTERFACER-HIVV2 Dual Unity gain amplifier voltage to voltage with TB (2P+2P+5P)

EID-INTERF-ACE-HIVV2-TB

$239.50

INTERFACER-HIVV2 Dual Unity gain amplifier voltage to voltage with 6" wires (6).

EID-INTERF-ACE-HIVV2-W

$249.20

Interface panel with 2 BNC connector addition.

EID-INTERF-PAN-2BNC

$18.99

Power switch addition.

EID-INTERF-ACE-HIVV2-PSW

$3.99

  •
