Industrial OEM High Precision In-Line 3 Channels 0-10V Outputs with dual pH, ISE, mV, ORP and Temperature inputs Transducer Interface Board.
The board is designed to perform 3 Channels: 2 Channels pH, ORP, mv, Ion Selective Electrode (ISE) and temperature signals amplification to 3 outputs, each 0-10VDC.
If used properly, it will eliminate the need for expensive boards and instruments, which would otherwise be needed to carry out the same tasks, or a pricey PLC.
The board is easy to install, setup and operate. If you want to do professional precision electrochemistry pH, ORP, mv, ISE and temperature 0...10V readings, The board offers the features you need.
Mounted easily via Industrial standard enclosure with Din-Rail Clip and (optional) and wire via convenient BNC connectors both, Input from the electrodes (probes) and the 0...10V outputs, where the it power via industrial standard 24V AC or DC.
Setting the board is simple, just follow these easy steps:
1. Connect BNC cable between each output and your PLC
2. Connect electrodes BNC to the inputs
3. Power the board of 24V AC or DC. Preferred stable 24V DC (industrial standard).
Due to super stable on board power supply regulators the 24V power can be controlled (on/Off) via PLC's relay or switch.
The board is ideal when an electrode high impedance signal is required by external remote system such as PLC.
Please drop us a line at sales@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--one of our OEM engineers will be happy to help you achieve them.
While the standard outputs configurations are 0.000V to 10.000V upon request we can configure the board for the following outputs: 0.000 to 3.300V, 0.000 to 5.000V
Each channel has its own Zero and Span adjustments for maximum linearity and precision!
|
Shown above In-Line configured for dual pH, ISE, mv, ORP and Temperature electrodes input and corresponding triple 0-10v outputs, power of 24V AC or DC. Model 3A10X0 Ideal for control water treatment center via industrial PLC with 0-10V inputs.
front panel with marking Input 1,2 & 3. Where; the rear panel marked output 1, 2 & 3. |
|
|

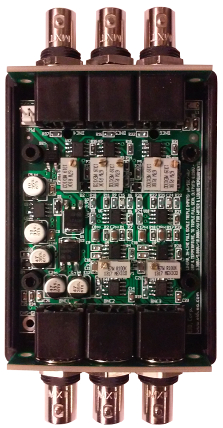

Figure A above shown with maximum configuration and options
1. BNC Input #1, Temperature First electrode. 2. BNC Input #2, pH, mV, ORP or ISE Second electrode. 3. BNC Input #3, pH, mV. ORP or ISE Third electrode. 4. Offset-Null Adjustment via multi-turn trimmer for Channel #2. 5. Offset-Null Adjustment via multi-turn trimmer for Channel #3. 6. SPAN Linearity Adjustment via multi-turn trimmer for Channel #1 (temperature). 7. ZERO and SPAN Adjustment via multi-turn trimmer for Channel #2. 8. ZERO and SPAN Adjustment via multi-turn trimmer for Channel #3. 9. BNC output #1,, 0 to 10V. 10. BNC output #2, 0 to 10V. 11. BNC output #3, 0 to 10V.. 12. Power Input 13. Power on indication. 14. Optional Chassis Ground wire (upon request)
PLC, Data loggers, ADC or DCS Systems, Data acquisitions or Receivers/Analyzer Electrodes Interface with 0 to 10V single-ended outputs.
Note: 3 outputs of 0 to 3.3V and 0 to 5V models are available (optional)

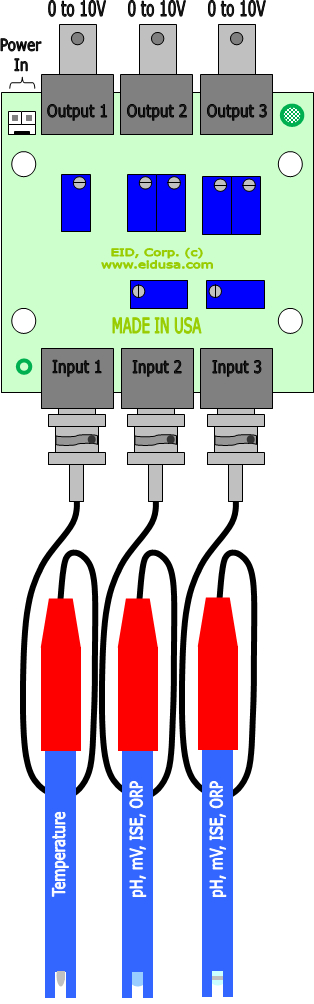

Figure B shown above configured for 3 electrochemistry electrodes, Temperature (left) and two additional pH/ORP/mV/ISE (center and Right))
Professional electrochemistry no problems; measure mV, pH, Temperature, ORP and ISE's directly from any PLC 0-10V inputs utilizing EID's configurable transducers. Easy as 123.
Features
|
||
|
Specifications
Output Voltage: Float Max power consumption: 1W Storage temperature: 40 - 70 [F] Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH Power indicator: LED Green Manufactured: 100% in USA Good modules, build to less-- pH, mV, ISE, ORP & Temperature Boards and electrodes since 1996--
Shown above (B/W picture), PCB panel of our electro chemistry transducer board--OEM QA team Since 1996 Our OEM multi-channel boards supports a wide variety of pH, mV, ISE and ORP sensors, probe and electrodes that have very high internal resistance and impedance that can range from 0.5 MΩ to several GΩ to few TΩ (Tera Ohms) >1012 Ohms, and On board power filtration provides immunity to noise and transient voltages often encountered in harsh industrial environments. If you want linear "noise free" multiple channels measurements of electrodes in a industrial environment give us a call.
Additionally we can match exact probes impedance to board input for maximum precision! Visit our glass shop for inside peek--
PROUDLY DESIGNED, FABRICATED and MADE IN THE U.S.A., all of our transducers and interface board are build with high quality, high grade components and since we are an OEM manufacturing company, with in-house R&D facility, we can print your logo on the enclosures and PCBs. We customize the interface boards and transducers to fit your requirements and needs. Just drop us a line at: sales@eidusa.com or call us directly at (704) 366-HELP (4357).
Applications:
|
||
|
Pricing
* Prices, SKU#, P# and colors are subject to change without notice. |
||
|
Description |
SKU # |
Price |
|---|---|---|
|
triple 0-10V outputs. Two channels pH/mV/ORP/ISE and temperature inputs Model 3A10X0, with 6 BNC |
EID-3E-PHMVORPISE-T-BNC-10X0 |
Call |
|
triple 0-3.3V outputs. Two channels pH/mV/ORP/ISE and temperature inputs Model 3A3X3, with 6 BNC |
EID-3E-PHMVORPISE-T-BNC-3X3 |
Call |
|
triple 0-5V outputs. Two channels pH/mV/ORP/ISE and temperature inputs Model 3A5X0, with 6 BNC |
EID-3E-PHMVORPISE-T-BNC-5X0 |
Call |
|
triple 0-3V outputs. Two channels pH/mV/ORP/ISE and temperature inputs Model 3A5X0, with 6 BNC |
EID-3E-PHMVORPISE-T-BNC-3X0 |
Call |
|
triple 0-1.8V outputs. Two channels pH/mV/ORP/ISE and temperature inputs Model 3A5X0, with 6 BNC |
EID-3E-PHMVORPISE-T-BNC-1X8 |
Call |
|
Modified Translucent blue ABS Plastic Instrument enclosures option |
EID-1593LTBU |
$17.75 |
|
Modified black ABS Plastic Instrument enclosures option |
EID-1593LBK |
$15.75 |
|
Din rail mounting mounting kit option |
EID-1427DINCLIP |
$4.24 |
|
|
||
