Our Temperature Sensor the SENSER-GXXX are light-weight and durable, suitable for a wide range of applications. Mating is by a 3.5mm type connector. This economical, general purpose research temperature electrode is made to exacting standards. Every electrode is tested for response, Beta, slope, isolation, drift and temperature response. You can rely on your EID Temp. electrode panel and sensor deliver dependable measurements now, and well into the future.





SENSER - SS Temperature Sensor (TM20) With 20K Thermistor





SENSER - SS Temperature Sensor (TM10) With 10K Thermistor







SENSER - General Purpose Glass Body Temperature Sensor with sensor of your choose X (GTSX)







SENSER - General Economy Temperature  with sensor of your choose X(GETXX)

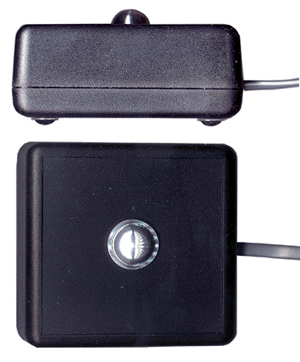

SENSER - General Purpose Temperature Sensor Dome sensor of your choose X (GTDX)

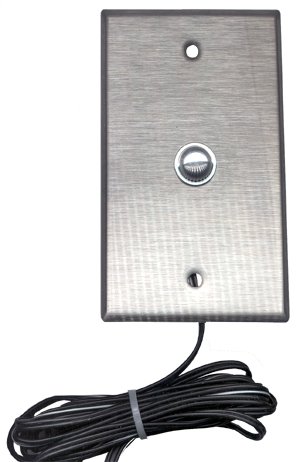

SENSER - General Purpose temperature Panel Sensor Dome sensor of your choose X (GPDX)








* Our TEMP sensors (probes) are furnished standard with a 3-foot low noise cable and 3.5mm standard connector. Cable extension lengths up to 10 feet are available.



* Although it is the most economical TEMP electrode on the market. the SENSER-TMP20 provides reliable and accurate performance. Popular in routine temperature determinations, it comes with unique designs, featuring built in stainless steel tube guard. It offers high performance at attractive prices.



* The SENSER-TM20 is aimed at the researcher in the laboratory, scientists in the plant or out in the field.



* EID Corp. offers many types and styles of temperature electrodes and temperature elements. We will customize them for you. Let us know the style you are looking for and we will produce to your specifications. Contact EID Sales team for more details. Join the thousands who use them every day around the world.




20K/10K THERMISTOR THERMAL & ELECTRICAL SPECIFICATIONS

Impedance at 25oC:

20,000 Ohms or 10,000 Ohms

Temperature Range:

-30 to 150oC, (0- 176oF, 273.15-353.15oK)

Accuracy at 25oC

+/- 1%

Accuracy at Full Range  +/- 3%
Alpha @ 25oC -4.30% / oC
0/50 Beta Value 3811 +/- .94%
Dissipation Constant Minimum 4.5mW 0oC (25 to 75oC in still Air)
Gas Thermal Time Constant Maximum 50 Second (25 to 75oC in still Air)
Liquid Thermal Time Constant  2 Second Typical In Well Stirred Oil Bath
Maximum Power Rating 450mW

SENSER-GTM20/10 MATERIALS

Body Housing

3/16" Stainless steel

Connector

3.5mm Male type

Cap

Flexible Rubber

Sensor NTC Thermistor Epoxy Resin Coated

Size

10mm * 150mm

Description and SKU#

Price


SENSER-TM20 General purpose SS sensor with 20K thermistor

EID-T-0TM-A020





45.99



SENSER-TM10 General purpose SS sensor with 10K thermistor

EID-T-0TM-A010





45.99



SENSER-GETXX General Economy plastic body temperature  sensor

EID-T-GET-A0XX





29.79





SENSER-GETXX General purpose glass body temperature  sensor

EID-T-GGT-A0XX





49.79





SENSER-GTMXX General purpose Glass body temperature  sensor

EID-T-GTM-A0XX





59.79





SENSER-TMD General purpose desktop temperature sensor

EID-T-TMD-D0XX





59.70





SENSER-TPD General purpose panel mounted temperature sensor

EID-T-TPD-D0XX





59.70

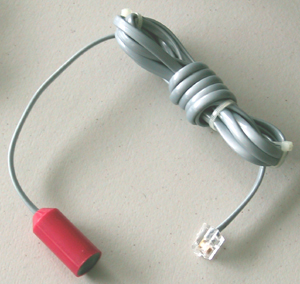

SENSER-STM1

EID-T-STM-A001



29.70



SENSER-STM2 for PROBER-TM4

EID-T-STM-A002



19.70



SENSER-STM3 for PROBER-TM4

EID-T-STM-A003



49.99



SENSER-STM4 for PROBER-TM4

EID-T-STM-A004



59.75



SENSER-STM5 for PROBER-TM4

EID-T-STM-A005



23.35



SENSER-STM6 for PROBER-TM4

EID-T-STM-A006



24.75



SENSER-STM7 for PROBER-TM4

EID-T-STM-A007



35.50



SENSER-STM9 for PROBER-TM4

EID-T-STM-A009



43.70
