Our pH/ORP Field Rebuildable Combination Electrode are light-weight and durable, suitable for a wide range of applications. The EID model ELECTRODER-FRC electrode housing features an easily replicable pH/ORP cartridge constructed in an ABS body. In its standard design, the ELECTRODER-FRC electrode employs a rugged, full range sensing element for either pH or ORP with a guard for maximum protection. An optional flat glass or platinum design resists coating and abrasion from severe process considerations. Rebuilding the sensor is fast and easy with the threaded pH or ORP cartridge. EID's reference technology allows use of this single junction electrode in the harshest applications without fear of reference contamination. The ELECTRODER-FRC housing includes an integral temperature element and and optional ORP element. You can rely on your EID electrode to deliver dependable measurements now and well into the future. Use it with your PROBER-PH8 Meter/Logger for the highest accuracy and maximum performance.



ELECTRODER - Field Rebuildable pH/ORP Electrode Cartridge and housing (FRC)

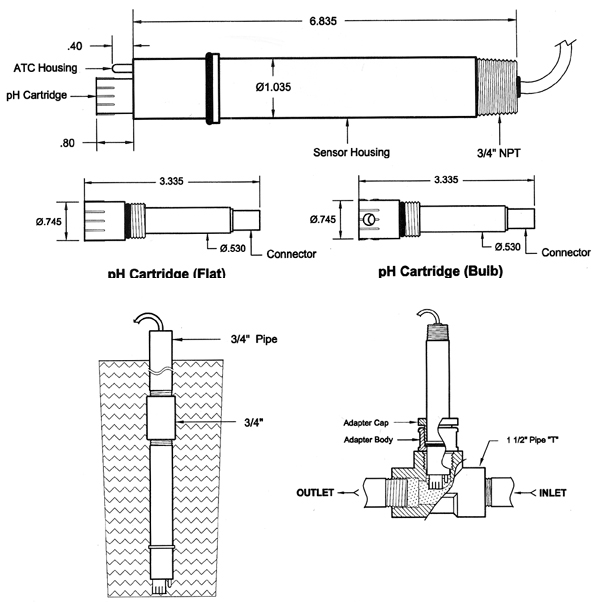

Probe Dimensions & Recommended Mounting

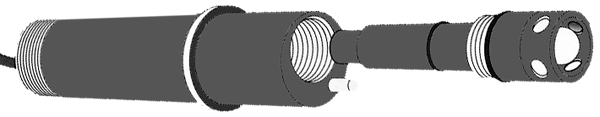

ELECTRODER - FRC Assembly (with pH cartridge bulb)




* Our ORP electrodes are furnished standard with a 3-foot low noise coaxial (RG-174) cable and BNC connector. Cable extension lengths up to 12 feet are available. When longer distance requires, or when using the electrode in a industrial environment, use our pH unity gain amplifier AMPER-PH1



* Our ORP electrode are aimed at the researcher in the laboratory, scientists in the plant or out in the field.



* EID Corp. offers many types and styles of ORP electrodes. We will customize them for you. Let us know the style you are looking for and we will produce to your specifications. Contact EID Sales team for more details. Join the thousands who use them every day worldwide.


Many of you asked us -- what are the purchase volume requirements for custom labeling?

Custom labeling requires minimum purchasing quantities of 50 units




ELECTRICAL SPECIFICATIONS

Nominal Impedance:

>100 Mega Ohm

Temperature Range:

0-84oC, (32- 183.2oF, 273.15-357.15oK)

Junction

Single and/or Double

Slope

>97%

MATERIALS

Body Housing

ABS or CPVC

ORP Sensing Element

Platinum band with High purity

O-ring EPR/Vitron (others avalible)
Max Pressure 100 PSI

Print

White Pad Print (custom labeling only)

Description and SKU#

Price


ELECTRODER-FRC pH Cartridge only

EID-C-FRC-PH0L for bulb pH (cartridge only) for low ionic strength water measurement, 0-12 pH range.

EID-C-FRC-PH0G for bulb pH (cartridge only) for general purpose, 0-14 range.

EID-C-FRC-PH0F for Flat pH (cartridge only) for abrasive application, 0-13 range.



CALL





CALL



CALL

ELECTRODER-FRC ORP Cartridge only

EID-C-FRC-ORP for ORP with Platinum band.



CALL



ELECTRODER-FRC DO Cartridge only

EID-C-FRC-0DX for DO



CALL



ELECTRODER-FRC ISE Cartridge only

EID-C-FRC-IXX for ISE (XX species code)



CALL



ELECTRODER-FRC Conductivity Cartridge only

EID-C-FRC-C01 for Conductivity cell K=1

EID-C-FRC-C10 for Conductivity cell K=10



CALL

CALL



ELECTRODER-FRC Probe housing only

EID-H-FRC-530K for housing, 30K thermistor & 5M CE approved cable. tinned lead.

EID-H-FRC-1030 for housing, 30K thermistor & 10' CE approved cable. tinned lead.



CALL



CALL



BNC (RG-58) Cable extension cord

EID-C-BNC-58BB-3 for 3 ft.

EID-C-BNC-58BB-6 for 6 ft.

EID-C-BNC-58BB-12 for 12 ft.



6.00

7.00

8.00

Double Female Adapter

EID-A-BNC-305 (UG-914/U)





1.60

  •
