INTERFACER-LHR4  LO-HI input relay boards



The RELAY-X4PS & RELAY-X4PS boards are designed to turn four SPDT relays on and off as a direct response to low voltage inputs.



If used properly, it will eliminate the need for expensive units, which would otherwise be needed to carry out the same tasks.



RELAY-X4PS and RELAY-Y4PS are easy to install, setup and operate. If you want to do professional high voltage switching related functions, RELAY-X4PSL & RELAY-Y4PS offers the features you need. Mounted easily via seventh 0.125" mounting holes.



The RELAY-X4PS & RELAY-Y4PS boards are powered via 110V or 220V AC. It come standard with 12V relays. 5V and 24V relay are also available.



This board is ideally for high voltage or current signal switching. Also been use to switch indication lamp status signals.



Where the EID-RELY-X4PS all relay's center are tied to AC rail!












Self power quad relay board models:

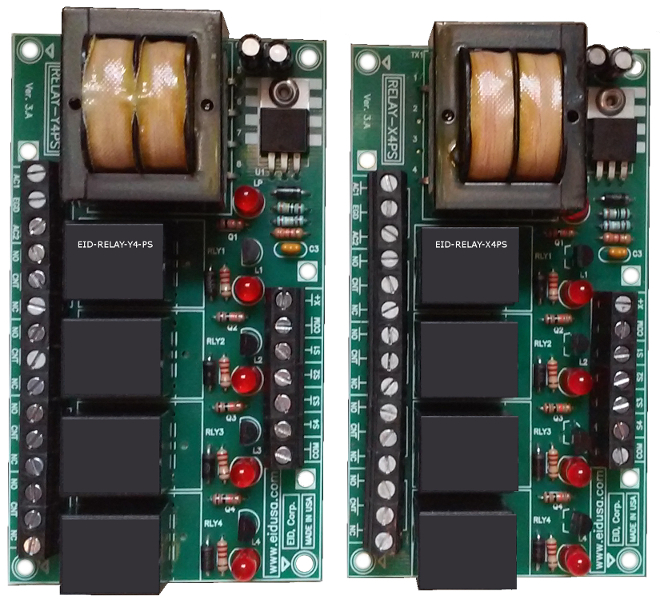

Shown above EID-RELAY-Y4PS (left), and EID-RELY-X4PS (right) Industrial self powered quad relay board

Where the EID-RELY-X4PS all relay's center are tied to AC rail! Both boards are powered directly via 110V AC. 220V AC models are also available.






RELAY-X4PS & RELAY-Y4PS Features



  • Built-in relay on LED indicator for each relay.

  • Power indicator LED

  • Power source via self isolation power transformer and Filter DC power source.

  • +X un auxiliary DC voltage for driving external board or sensor.

Specifications

  • PCB material                            FR4

  • Relay switch min. rating            110V/12A other values are available

  • Max power consumption            1W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               12 [VDC]

  • Power source                          Isolate 110V or 220V down to 12V DC via regulator

  • Relay on  indicator                   LED Green or Red

  • Wires Connections                   Via terminal-block

  • Manufactured                          100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.



Description

SKU #

Price

RELAY-X4PS Self Power Quad Relay board (5V relays)

EID-RELAY-X4PS-XXX5V

$157.92

RELAY-X4PS Self Power Quad Relay board (12V relays)

EID-RELAY-X4PS-XX12V

$137.22

RELAY-X4PS Self Power Quad Relay board (24V relays)

EID-RELAY-X4PS-XX24V

$157.92

RELAY-Y4PS Self Power Quad Relay board (5V relays)

EID-RELAY-Y4PS-XXX5V

$157.92

RELAY-Y4PS Self Power Quad Relay board (12V relays)

EID-RELAY-Y4PS-XX12V

$137.22

RELAY-Y4PS Self Power Quad Relay board (24V relays)

EID-RELAY-Y4PS-XX24V

$157.92

  •
