The full bridge diode boards will allow you to easily rectify all your AC voltages. The Terminal Block TB connector is included and makes it easy to use.

Basic operation of the voltage regulator board

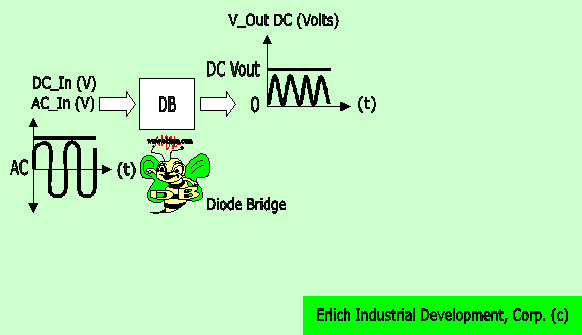

A full wave bridge rectifier (diode bridge) is an a circuit utilizing of four diodes in a bridge configuration to convert alternating current (AC) into direct current (DC), also known as full-wave rectification.

The diodes bridge D1-D4, will convert input AC voltage to DC voltages (See below kit drawing). Additionally, the diode bridge ensures that the polarity of the bridge output remains the same, regardless of the input voltage polarity.

Model A                                Model B

High current (up to 3A)         Low current (up to 1A)

or

Schematic

Three main configurations can be achieve using the board:

• Convert alternating current (AC) into direct current (DC).

• Converting transformer with center Tap (TC) into positive and negative outputs.

• Ensuring the output polarity remains the same no matter how you connect the battery to the board.

Option

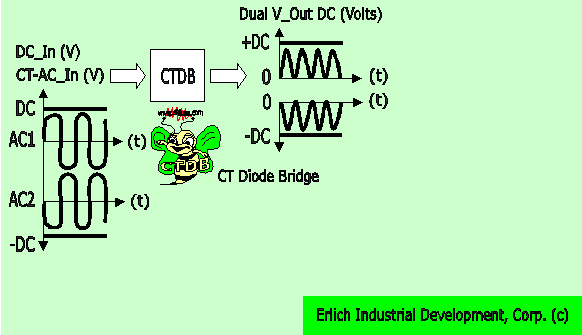

Transformer with central tap (CT) configuration, see schematic below.

For our line of transformers click Here or for Isolation AC Power Transformer board click Here

Please drop us a line at hvac@eidusa.com and let us know where you use this unique full diode bridge board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.

  ^•
