Welded - "Contempra" Rack Frames (EID-C2 Series)



C2 Welded Rack Frame

Features:

  • Heavy duty - welded rack (1,500 lb even load rating)...

  • Standard 19” panel width (23” overall)...

  • Choice of three depths:

    1. usable depth of 21.63" (23.63” overall)

    2. usable depth of 29.50" (31.50” overall)

    3. usable depth of 34.00" (36.00" overall)

  • Unit is shipped as welded frame only with 4 leveling feet...

  • Panel rails are NOT included (see accessories listed below or link here to rail )...

  • Save time & money, link here (EID-C2RR series) to our assembled "Rapid Rack" version, complete with our most popular accessories...

  • Heavy duty: 14 gauge steel frame (black or gray/beige)...

  • Recommended maximum weight (EID-C2F247836 tested) - 1,500 pounds...

  • Finished in a rugged, powder paint.

  •

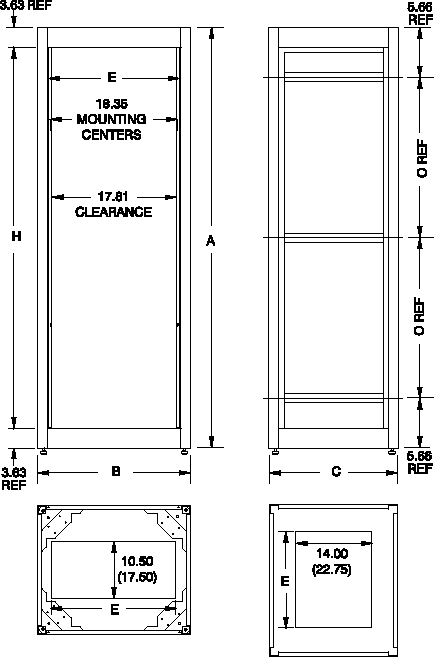

    C2 Frame Line Art



    23.63" Deep models:
    Usable Depth = 21.63"

    Part Number

    1-99

    Color

     Paint Texture

    Panel Height

    Overall Dimensions

    Inches

    Units

    A

    B

    C

    H

    EID-C2F193523BK1
    EID-C2F193523CG1



    Black
    Gray/Beige

    Textured
    Textured

    35

    20

    42.31

    23

    23.63

    35.06

    EID-C2F194223BK1
    EID-C2F194223CG1



    Black
    Gray/Beige

    Textured
    Textured

    42

    24

    49.31

    23

    23.63

    42.06

    EID-C2F194923BK1
    EID-C2F194923CG1



    Black
    Gray/Beige

    Textured
    Textured

    49

    28

    56.31

    23

    23.63

    49.06

    EID-C2F195623BK1
    EID-C2F195623CG1



    Black
    Gray/Beige

    Textured
    Textured

    56

    32

    63.31

    23

    23.63

    56.06

    EID-C2F196323BK1
    EID-C2F196323CG1



    Black
    Gray/Beige

    Textured
    Textured

    63

    36

    70.31

    23

    23.63

    63.06

    EID-C2F197023BK1
    EID-C2F197023CG1



    Black
    Gray/Beige

    Textured
    Textured

    70

    40

    77.31

    23

    23.63

    70.06

    EID-C2F197823BK1
    EID-C2F197823CG1



    Black
    Gray/Beige

    Textured
    Textured

    78

    45

    86.06

    23

    23.63

    78.81



    31.50" Deep models:
    Usable Depth = 29.50"

    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Overall Dimensions

    Inches

    Units

    A

    B

    C

    H

    EID-C2F193531BK1
    EID-C2F193531CG1



    Black
    Gray/Beige

    Textured
    Textured

    35

    20

    42.31

    23

    31.5

    35.06

    EID-C2F194231BK1
    EID-C2F194231CG1



    Black
    Gray/Beige

    Textured
    Textured

    42

    24

    49.31

    23

    31.5

    42.06

    EID-C2F194931BK1
    EID-C2F194931CG1



    Black
    Gray/Beige

    Textured
    Textured

    49

    28

    56.31

    23

    31.5

    49.06

    EID-C2F195631BK1
    EID-C2F195631CG1



    Black
    Gray/Beige

    Textured
    Textured

    56

    32

    63.31

    23

    31.5

    56.06

    EID-C2F196331BK1
    EID-C2F196331CG1



    Black
    Gray/Beige

    Textured
    Textured

    63

    36

    70.31

    23

    31.5

    63.06

    EID-C2F197031BK1
    EID-C2F197031CG1



    Black
    Gray/Beige

    Textured
    Textured

    70

    40

    77.31

    23

    31.5

    70.06

    EID-C2F197831BK1
    EID-C2F197831CG1



    Black
    Gray/Beige

    Textured
    Textured

    78

    45

    86.06

    23

    31.5

    78.81



    36.00" Deep models:
    Usable Depth = 34.00"



    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Overall Dimensions

    Inches

    Units

    A

    B

    C

    H

    EID-C2F193536BK1
    EID-C2F193536CG1



    Black
    Gray/Beige

    Textured
    Textured

    35

    20

    42.31

    23

    36

    35.06

    EID-C2F194236BK1
    EID-C2F194236CG1



    Black
    Gray/Beige

    Textured
    Textured

    42

    24

    49.31

    23

    36

    42.06

    EID-C2F194936BK1
    EID-C2F194936CG1



    Black
    Gray/Beige

    Textured
    Textured

    49

    28

    56.31

    23

    36

    49.06

    EID-C2F195636BK1
    EID-C2F195636CG1



    Black
    Gray/Beige

    Textured
    Textured

    56

    32

    63.31

    23

    36

    56.06

    EID-C2F196336BK1
    EID-C2F196336CG1



    Black
    Gray/Beige

    Textured
    Textured

    63

    36

    70.31

    23

    36

    63.06

    EID-C2F197036BK1
    EID-C2F197036CG1



    Black
    Gray/Beige

    Textured
    Textured

    70

    40

    77.31

    23

    36

    70.06

    EID-C2F197836BK1
    EID-C2F197836CG1



    Black
    Gray/Beige

    Textured
    Textured

    78

    45

    86.06

    23

    36

    78.81


    Accessories:

    Casters

    1425 C2 Caster Set

    • No drilling required...

    • Mounts into existing holes in “EID-C2” type racks...

    • Swivel, ball bearing units, hard composition type wheels...

    • Adds only 0.75” to height of cabinet by fitting up inside base of rack...

    • Sold in sets of 4.


    Part Number

    1-9 10-99 100-999

    Mfg. Specified
    Capacity
    (set of 4)

    Wheel Diameter
    (Inches)

    Height Added To
    Rack
    (Inches)

     EID-1425B



    360 lbs.

    3"

    0.75"

     EID-1425BM



    700 lbs.

    3"

    0.75"

     EID-1425BH



    1050 lbs.

    3"

    0.75"



    General Accessory

    • Extra Panel Rails

    • Tops solid, vented & Raised - note: existing solid top must be removed

    • Fan Tops 4" or 10" Fans - note: existing solid top must be removed

    • Doors solid, louvered & plexi

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels Louvers, slots, baffles etc.

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Shelves & Slides - Dual Vertical Rail Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Vertical rack mount power bars

    • Blowers

    • Fan Trays

    • Mounting (Hardware)

    Other colors and 24" panel width, available on special order.



    Notes:

    • All Dimensions in inches

      •
