Rack Accessories - Rails (CCR & CPR series)



Tapped Rails | Square Hole Rails | Rail Accessories

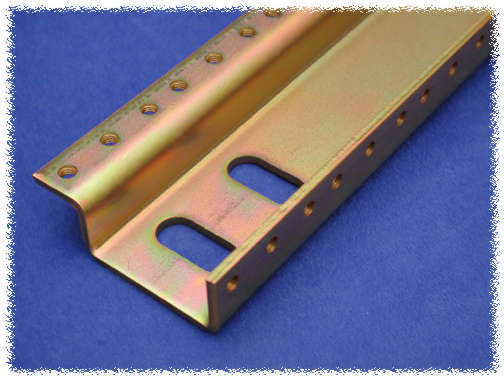

Tapped Rail - Zinc Plated



TAPPED RAILS

Features:

  • Sold in pairs

  • Drilled and tapped (10-32)

  • For hardware link here

  • Heavy duty - 10 gauge steel

  • Full EIA hole centers (5/8 - 5/8 - 1/2 inch spacing)

  • Bolts vertically in rack to amhal struts

  • Includes all rack mounting hardware

  • Zinc plated finish

  • Front of rail allows for 19" panel rack mounting

  • Rear of rail flanged for rear support or accessory mounting

Part Number
(Sold in Pairs)

1-9

10-99

100-999

Finish

Panel Height

Inches

Units

EID-CCR35TZPL







Zinc Plated

35

20

EID-CCR42TZPL







Zinc Plated

42

24

EID-CCR49TZPL







Zinc Plated

49

28

EID-CCR56TZPL







Zinc Plated

56

32

EID-CCR63TZPL







Zinc Plated

63

36

EID-CCR70TZPL







Zinc Plated

70

40

EID-CCR78TZPL







Zinc Plated

78.75

45



Click Here To Enlarge

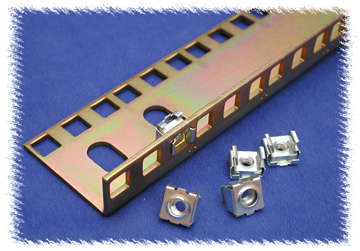

SQUARE HOLE RAILS

Features:

  • Sold in pairs

  • Square hole punched (allows choice of hardware for 10-32 or 12-24 or M6 screw thread)

  • Heavy Duty - 12 gauge steel

  • Full EIA hole centers (5/8 - 5/8 - 1/2 inch spacing)

  • Bolts vertically in rack to amhal struts

  • Includes all rack mounting hardware

  • Zinc plated finish

  • Front of rail allows for 19" panel rack mounting

  • Rear "L" of rail for rear support or accessory mounting

  • includes a starter quantity (25) of 10-32 cage nuts (for additional hardware link here )



Part Number
(Sold in Pairs)

1-9

10-99

100-999

Finish

Panel Width

Panel Height

Inches

Units

EID-CPR70SZPL

Zinc Plated

19"

70

40

EID-CPR78SZPL

Zinc Plated

19"

78.75

45

EID-CPR70SZPL

Zinc Plated

23"

70

40

EID-CPR78SZPL

Zinc Plated

23"

78.75

45



NOTE: when using 19" rails in 24" racks, our EID-CAK1924 adaptor kit is required (see below)

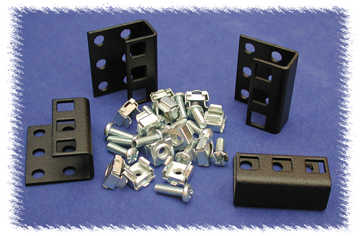

Square Hole Panel Rail Adaptor

Click Here To Enlarge

Part Number EID-CPRSA

  • use with our panel mount shelves (RFVS & RFUS series) with square hole rails

  • set of 4

  • includes mounting hardware


24" To 19" Adaptor Kit

Click here to enlarge

Shown installed (below) in a 24" rack
using square hole panel rails.

Click here to enlarge

Part Number EID-CAK1924

  • Sold for 1 pair of rails

  • Used only on 24" wide racks.

  • Converts rack to standard 19" mount.

  • Provides additional wiring space along both sides of 19" rack mounted equipment.

  • Fits between panel rail and horizontal channel (amhal struts).

  • Constructed of black anodized extruded aluminum.

  • Kit includes six adaptor brackets and required hardware for one pair of rails.

  • Includes all mounting hardware

    •


    Additional Hardware Used to Mount Panel Rail To Amhal Strut

    Amhal Strut - Mounting Hardware

    Part Number EID-1463S (package of 3 - nuts, bolts & washers)

    • 3/8 x 16 spring loaded nuts (for "C" channels)

    • 0.75" hex head bolts & washers

    • enough hardware to mount one rail

    • NOTE: mounting hardware is included with above rails



    Notes:

    • All Dimensions in inches

      •
