Rack Mounting Hardware (EID-1421 & EID-1463 Series)

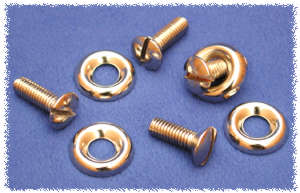

1421 Hardware

Part Number EID-1421
(package of 4 screws & 4 metal cup washers)

  • 10-32 x 0.625"

  • Slotted oval head screws

  • Steel cup washers (0.60" outside diameter)

  • Nickel plated

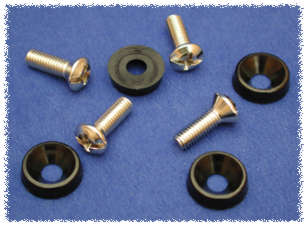

1421A Hardware

Part Number EID-1421A
(Package of 4 screws & 4 plastic cup washers)

  • 10-32 x 0.625"

  • Slotted & phillips combination oval head screws

  • Nickel plated screws

  • Black plastic cup washers (0.58" outside diameter)

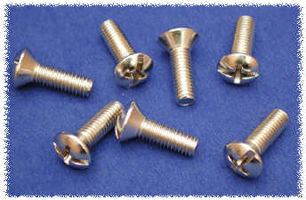

1421A_B Hardware

Part Number EID-1421A25B (package of 25)
Part Number EID-1421A100B (package of 100)

  • 10-32 x 0.625"

  • Slotted & phillips combination oval head screws

  • Nickel plated

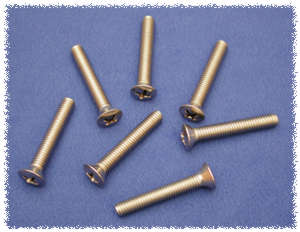

1421F25 Hardware

Part Number EID-1421F25 (package of 25)

  • 10-32 x 1.25" phillips oval head screws

  • Nickel plated

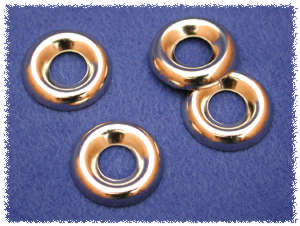

 1421E_W Hardware

Part Number EID-1421E25W (package of 25)
Part Number EID-1421E100W (package of 100)

  • Metal cup washers

  • 0.60" outside diameter

  • Use with 10-32 countersunk screws above

  • Nickel plated

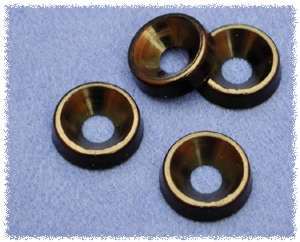

 1421A_W Hardware

Part Number EID-1421A25W (package of 25)
Part Number EID-1421A100W (package of 100)

  • Black plastic cup washers

  • 0.58" outside diameter

  • Use with 10-32 countersunk screws above

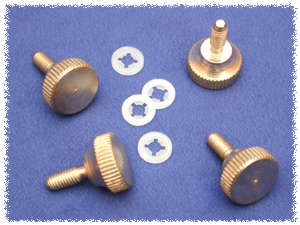

1421B Hardware

Part Number EID-1421B (package of 4 screws & 4 washers)

  • 10-32 x 0.5" thumb screws

  • With captivated nylon washers

  • Nickel plated

  • Works with panels up to 0.09" thick

  • Head is 0.62" dia. x 0.37" high

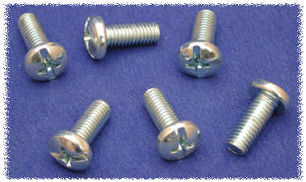

1421D Hardware

Part Number EID-1421D (package of 25)

  • 10-32 x 0.5"

  • Slotted & phillips combination pan head screws

  • Use where economy is important OR for close spacing. Example: multiple 1.75" (1U) panels are mounted next to each other (as cup washers will interfere with each other)

  • Zinc plated

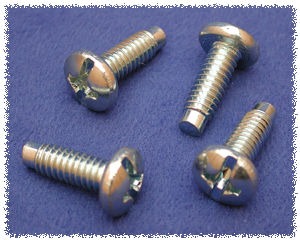

H1224S20 Hardware

Part Number EID-H1224S20 (package of 20)

  • 12-24 x 5/8" Slotted & phillips combination pan head screws

  • Zinc plated

  • Used mainly on our Aluminum open relay racks (RRAL series)

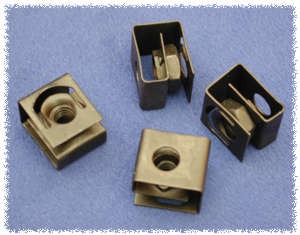

1421N Clip Nuts

USE ON ROUND HOLE RAILS ONLY

Part Number EID-1421N25 (package of 25)
Part Number EID-1421N100 (package of 100)

  • 10-32 clip nuts for punched (round) panel rails

  • Has the holding strength of a 10-32 nut

  • Black finish

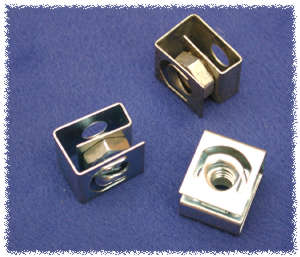

 1421NP Clip Nuts

USE ON ROUND HOLE RAILS ONLY

Part Number EID-1421NP25 (package of 25)
Part Number EID-1421NP100 (package of 100)

  • 10-32 clip nuts for punched (round) panel rails

  • Has the holding strength of a 10-32 nut

  • Zinc plated

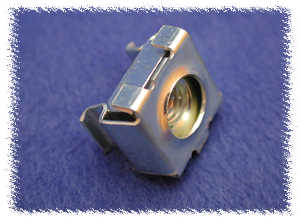

10-32 Cage Nut

USE ON SQUARE HOLE RAILS ONLY

Part Number EID-1421CNA25 (package of 25)
Part Number EID-1421CNA100 (package of 100)

  • 10-32 cage nuts for square hole punched panel rails

  • Has the holding strength of a 10-32 nut

  • Zinc plated



12-24 Cage Nut

USE ON SQUARE HOLE RAILS ONLY

Part Number EID-1421CNC25 (package of 25)
Part Number EID-1421CNC100 (package of 100)

  • 12-24 cage nuts for square hole punched panel rails

  • Has the holding strength of a 12-24 nut

  • Zinc plated



M6 Cage Nut

USE ON SQUARE HOLE RAILS ONLY

Part Number EID-1421CNB25 (package of 25)
Part Number EID-1421CNB100 (package of 100)

  • M6 cage nuts for square hole punched panel rails

  • Has the holding strength of a M6 nut

  • Zinc plated



 1463S Hardware

Part Number EID-1463S (package of 3)

  • 3/8 x 16 spring loaded nuts (for "C" channels)

  • 0.75" hex head bolts & washers

  • used to mount one rack rail (used in racks with Amhal strut rail mounting)



Notes:

  • All Dimensions in inches

  •
