Aluminum - Open Frame Racks (EID-RRAL Series)

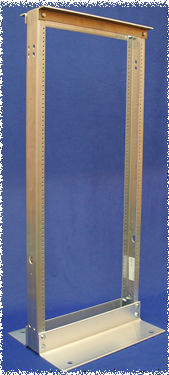

RRAL48

Features:

  • Lightweight aluminum...

  • Shipped knocked down...

  • Choice of 19" or 23" panel width...

  • Easy assembly - only 12 bolts...

  • Front & rear flange is drilled and tapped (12-24) universal EIA (5/8 - 5/8 - 1/2 inch) spacing...

  • Includes quantity 30, 12-24 x 5/8" pan head screws...

  • For use as a single, free standing unit for support of standard 19” (or 23") rack mount devices...

  • Compatible with most other manufacturers for joining (see joining kit below)...

  • Recommended maximum weight (EID-RRAL2384 tested) - 840 pounds...

  • Available either unfinished (shown) or black textured powder paint.

    •



    19" Panel Width

    Part Number

    Color

    Paint Texture

    Panel Width

    Panel Height

    Overall Dimensions

    		 1-99

    Inches

    Units

    Width

    Height



    EID-RRAL1948
    EID-RRAL1948BK

    Unfinished
    Black

    N/A
    Textured

    19"

    42

    24

    20"

    48"



    EID-RRAL1972
    EID-RRAL1972BK

    Unfinished
    Black

    N/A
    Textured

    19"

    66.5

    38

    20"

    72"



    EID-RRAL1984
    EID-RRAL1984BK

    Unfinished
    Black

    N/A
    Textured

    19"

    78.75

    45

    20"

    84"



    23" Panel Width

    EID-RRAL2348
    EID-RRAL2348BK

    Unfinished
    Black

    N/A
    Textured

    23"

    42

    24

    24"

    48"



    EID-RRAL2372
    EID-RRAL2372BK

    Unfinished
    Black

    N/A
    Textured

    23"

    66.5

    38

    24"

    72"



    EID-RRAL2384
    EID-RRAL2384BK

    Unfinished
    Black

    N/A
    Textured

    23"

    78.75

    45

    24"

    84"

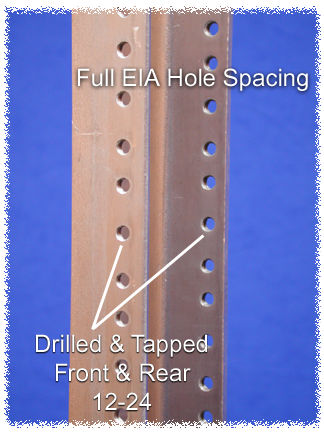

    Vertical Rail Close Up


    Rail Close Up


    Vertical Cable Organizers:



    Dual Vertical Cable Organizers

    • Used to organize large bundles of connecting wires

    • Manufactured in 16 Ga. steel

    • Mounts to either side of open relay rack

    • Finished in rugged black textured powder paint

    • Two units shown here, with a black painted EID-RRAL open relay rack



    Part Number

    Use

    Color

    Rack Height

    		1-9 10-99 100-999

    EID-RRCMS48

    Single Side

    Black

    48"



    EID-RRCMS72

    Single Side

    Black

    72"



    EID-RRCMS84

    Single Side

    Black

    84"



    EID-RRCMD84

    Both Sides (shown)

    Black

    84"




    Joining Kit:

    RRALJK Photo

    Part Number EID-RRALJK

    • Kit contains enough hardware to join two relay racks

    • Used to join relay racks side by side

    • No drilling required

    • Connects through supplied 6 holes (2 in top, middle & bottom) of frame


    19" Panel Accessories:

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Blowers

    • Fan Trays

    • Mounting hardware

    23" Panel Accessories:

    • 19" to 23" panel adaptors

    • Shelves

    Notes:

    • All Dimensions in inches

      •
