Fixed Shelf (Un-vented or Vented) Attach to both pair of rack combination rails The vented version provides a sturdy shelf without obstructing upward heat movement Front & rear lip folded down for extra strength Heavy duty, 14 Ga. steel construction Sides folded up for easy hardware installation from above Sides are slotted for easy adjustment with most rail depth locations Rugged textured powder paint finish If used with our square hole rails you will need to order P/N CPRSA rail adaptor for each shelf ordered. Link here to more information. MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)
UN-VENTED 19" Rack Mount   Part Number 1-99 Color Paint Texture Shelf Depth RFUS1918BK1 RFUS1918CG1   Black Grey/Beige Textured Textured  18" RFUS1921BK1 RFUS1921CG1   Black Grey/Beige Textured Textured  21" RFUS1926BK1 RFUS1926CG1   Black Grey/Beige Textured Textured  26" RFUS1931BK1 RFUS1931CG1   Black Grey/Beige Textured Textured 31"   UN-VENTED 24 " Rack Mount   Part Number 1-99 Color Paint Texture Shelf Depth RFUS2418BK1 RFUS2418CG1   Black Grey/Beige Textured Textured  18" RFUS2421BK1 RFUS2421CG1   Black Grey/Beige Textured Textured  21" RFUS2426BK1 RFUS2426CG1   Black Grey/Beige Textured Textured  26" RFUS2431BK1 RFUS2431CG1   Black Grey/Beige Textured Textured 31" Note: Weight load tested (RFUS2426BK1) to 350 pounds.   VENTED 19" Rack Mount   Part Number 1-99 Color Paint Texture Shelf Depth RFVS1918BK1 RFVS1918CG1   Black Grey/Beige Textured Textured  18" RFVS1921BK1 RFVS1921CG1   Black Grey/Beige Textured Textured  21" RFVS1926BK1 RFVS1926CG1   Black Grey/Beige Textured Textured  26" RFVS1931BK1 RFVS1931CG1   Black Grey/Beige Textured Textured 31"   VENTED 24 " Rack Mount   Part Number 1-99 Color Paint Texture Shelf Depth RFVS2418BK1 RFVS2418CG1   Black Grey/Beige Textured Textured  18" RFVS2421BK1 RFVS2421CG1   Black Grey/Beige Textured Textured  21" RFVS2426BK1 RFVS2426CG1   Black Grey/Beige Textured Textured  26" RFVS2431BK1 RFVS2431CG1   Black Grey/Beige Textured Textured 31"   Note: Weight load tested (RFVS2426BK1) to 350 pounds. Square Hole Panel Rail Adaptor Part Number CPRSA use with RFVS & RFUS series (above) when using square hole rails set of 4 includes mounting hardware
	Rail Mounted Sliding Shelf (Vented or Un-vented) Attach to both pair of 19” rack rails The vented version provides a sturdy shelf without obstructing upward heat movement Heavy duty ball bearing slides included Heavy duty, 14 Ga. steel construction Folded on all four sides for extra strength Rugged textured powder paint finish MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)
UN-VENTED 19" Rack Mount   Part Number Color Paint Texture Shelf Depth Slide Travel RSUS1918BK1 RSUS1918CG1 Black Grey/Beige Textured Textured  18" 18" RSUS1921BK1 RSUS1921CG1 Black Grey/Beige Textured Textured  21" 20" RSUS1926BK1 RSUS1926CG1 Black Grey/Beige Textured Textured  26" 26" RSUS1931BK1 RSUS1931CG1 Black Grey/Beig Textured Textured 31" 28"   UN-VENTED 24 " Rack Mount   Part Number Color Paint Texture Shelf Depth Slide Travel RSUS2418BK1 RSUS2418CG1 Black Grey/Beige Textured Textured  18" 18" RSUS2421BK1 RSUS2421CG1 Black Grey/Beige Textured Textured  21" 20" RSUS2426BK1 RSUS2426CG1 Black Grey/Beige Textured Textured  26" 26" RSUS2431BK1 RSUS2431CG1 Black Grey/Beig Textured Textured 31" 28"   Note: Weight load tested (RFUS2426BK1) to 120 pounds.   VENTED 19" Rack Mount   Part Number Color Paint Texture Shelf Depth Slide Travel RSVS1918BK1 RSVS1918CG1 Black Grey/Beige Textured Textured  18" 18" RSVS1921BK1 RSVS1921CG1 Black Grey/Beige Textured Textured  21" 20" RSVS1926BK1 RSVS1926CG1 Black Grey/Beige Textured Textured  26" 26" RSVS1931BK1 RSVS1931CG1 Black Grey/Beige Textured Textured 31" 28"   VENTED 24 " Rack Mount   Part Number Color Paint Texture Shelf Depth Slide Travel RSVS2418BK1 RSVS2418CG1 Black Grey/Beige Textured Textured  18" 18" RSVS2421BK1 RSVS2421CG1 Black Grey/Beige Textured Textured  21" 20" RSVS2426BK1 RSVS2426CG1 Black Grey/Beige Textured Textured  26" 26" RSVS2431BK1 RSVS2431CG1 Black Grey/Beige Textured Textured 31" 28"   Note: Weight load tested (RSVS2426BK1) to 120 pounds.

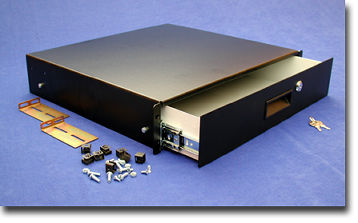

	Rail Mounted Storage Drawer Standard 19" rack mount Plastic front pull handle Complete drawer with slides, hardware, lock & two keys Drawer shroud, 14 Ga. steel construction Available in 3 depths Rear support brackets included for all depths or can be supported from rear accessory rail Drawer interior smooth white powder paint for high visibility Front face finished in tough textured powder paint MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)
12" DEEP DRAWER   Part Number 1-99 Color Paint Texture Drawer Height Slide Travel EID-RDRW1900312BK1 EID-RDRW1900312CG1   Black Grey/Beige Textured Textured  3.50" 12" EID-RDRW1900512BK1 EID-RDRW1900512CG1   Black Grey/Beige Textured Textured  5.25" 12" EID-RDRW1900712BK1 EID-RDRW1900712CG1   Black Grey/Beige Textured Textured  7.00" 12" EID-RDRW1900812BK1 EID-RDRW1900812CG1   Black Grey/Beige Textured Textured  8.75" 12" EID-RDRW1901212BK1 EID-RDRW1901212CG1   Black Grey/Beige Textured Textured 12.25" 12"   16" DEEP DRAWER   Part Number 1-99 Color Paint Texture Drawer Height Slide Travel EID-RDRW1900316BK1 EID-RDRW1900316CG1   Black Grey/Beige Textured Textured  3.50" 16" EID-RDRW1900516BK1 EID-RDRW1900516CG1   Black Grey/Beige Textured Textured  5.25" 16" EID-RDRW1900716BK1 EID-RDRW1900716CG1   Black Grey/Beige Textured Textured  7.00" 16" EID-RDRW1900816BK1 EID-RDRW1900816CG1   Black Grey/Beige Textured Textured  8.75" 16" EID-RDRW1901216BK1 EID-RDRW1901216CG1   Black Grey/Beige Textured Textured 12.25" 16"   22" DEEP DRAWER   Part Number 1-99 Color Paint Texture Drawer Height Slide Travel EID-RDRW1900322BK1 EID-RDRW1900322CG1   Black Grey/Beige Textured Textured  3.50" 22" EID-RDRW1900522BK1 EID-RDRW1900522CG1   Black Grey/Beige Textured Textured  5.25" 22" EID-RDRW1900722BK1 EID-RDRW1900722CG1   Black Grey/Beige Textured Textured  7.00" 22" EID-RDRW1900822BK1 EID-RDRW1900822CG1   Black Grey/Beige Textured Textured  8.75" 22" EID-RDRW1901222BK1 EID-RDRW1901222CG1   Black Grey/Beige Textured Textured 12.25" 22"   Note: Weight load tested (EID-RDRW1900322BK1) to 60 pounds (no rear support), (EID-RDRW2400822BK1) to 120 pounds (with rear support).
	Rail Mounted Equipment Slides Standard 19" rack mountable Sold in pairs Mounts to front & rear flange on both pairs of vertical panel rails (not included) Heavy duty - double rail, ball bearing type MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)
Part Number  1-99 Length Capacity (Pair) Slide Travel EID-RSLIDE12   12" 120 # 12" EID-RSLIDE16   16" 130 # 16" EID-RSLIDE22   22" 120 # 22"   Drawing of Rail Mounting

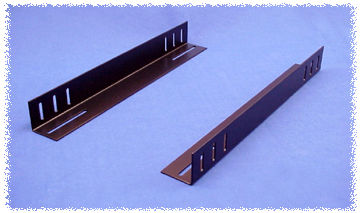

	Adjustable Side Support Angles Angles mount on accessory rails with either leg or both used as support Slots allow up/down and front/back adjustments Made of 14 gauge steel, with dimensions of 1.75" x 1.75" Finished in rugged textured black powder paint Requires mounting hardware MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)
Part Number 1-9 10-99 100-999 Color Length EID-RASA12BK3       Black 9.97" EID-RASA16BK3       Black 14.95" EID-RASA22BK3       Black 20.95" EID-RASA28BK3       Black 28.00"

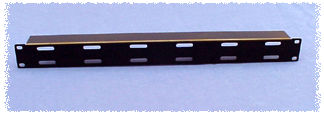

	Rail Mounted Rear Support Bar Standard 19" rack mountable Heavy duty 14 gauge steel support fastens between accessory rails for support across rear of equipment Folded top edge for extra deep edge & extra strength Uses only 1U (1.75") of panel space Includes slots for easy installation of cable ties or velcro belts for cable organizing Rugged textured black powder paint finish Requires mounting hardware
Part Number 1-9 10-99 100-999 Color Paint Texture Length EID-RASB19BK1       Black Textured 19"
