EUSB to up to four I2C-Temperature-Sensor Kit

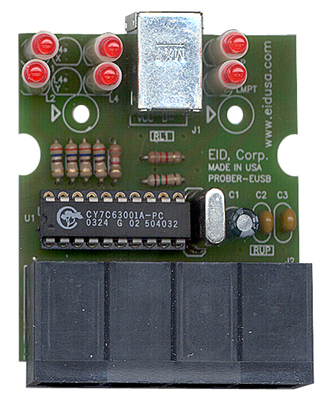

EID's universal serial bus (EUSB) to I2C temperature silicon based sensors kit is an Electronics kit

that allows you to connect up-to four Maxim/Dallas DS1621 or NSC LM75 Temperature sensor to your Personal Computer (PC) Universal serial port.



The status LEDs can be use to indicate alert i.e when temperature is out of range.



The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.



No need for external Power supply! just plug to your computer and monitor your room temperature.



Please note: EUSB wire and Temperature sensors wires and board are sold separately.






Kit Software

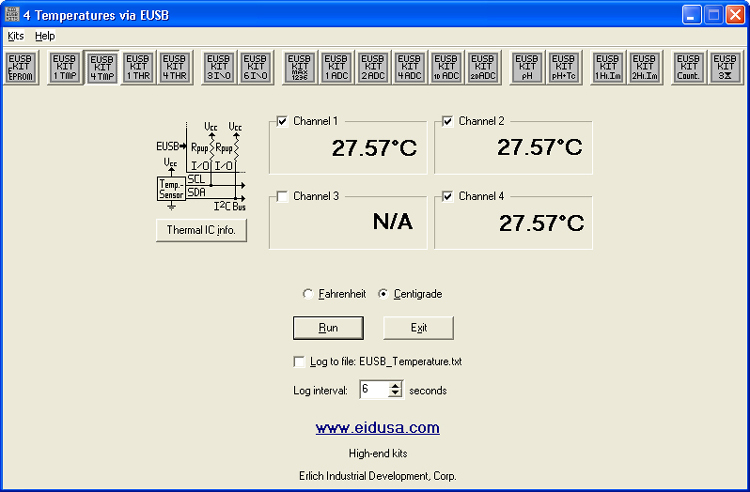

Kit screen shot (shown above) indicates temperature in degrees Centigrade



Free demo software (see above screen shots) allows you to fully read and log the 4 temperature sensors. The remote temperature sensors are a I2C controlled Integrated circuit (IC). The sensor's ambient temperature can be displayed in both Fahrenheit (F) and degrees Centigrade (C).



We implemented very minimal log mechanisms with this demo software. You can log the readings into pre-specified file, named: EUSB_Temperature.txt. The software will automatically save it in the same directory you install into your demo software. The log file is limited to 1000 lines. The logged temperature readings includes automatic stamping of time and date. This unique free feature allows you to monitor the temperature over time. Simply choose from on screen the interval you want the temperature to be logged (6-100 seconds).



You can open the log file from other programs while the demo software is running and logging to the same file. Our free demo code includes built-in  implementation of Dynamic Data Exchange (DDE) functions that allows you to do so. You can open the file in MS-Excel, MS-Word, Notepad etc. Simply share it and read it from anywhere over the network. (MS- Excel, MS-Word and Notepad are trademarks of Microsoft corp.)



Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft Corp.)



Please be advised, the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!



All you need to do is plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can log and  read the 4 IC temperature sensor's ambient temperature.

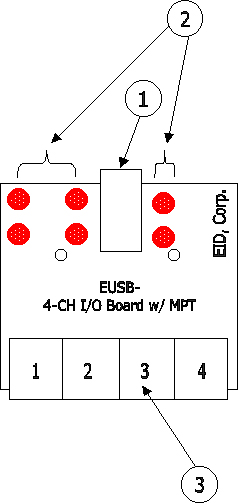

Kit Drawing









1. EUSB connector (connect your cable between the connector and your PC)

2. 6 LEDs Status

3. I2C-Temperature sensor connector (4 ports I2C via RG45 6 pins connector)






Kit Includes

  • CY7C63001          IC                  1pc.

  • 7.5K Ohms           Resistor           2pc.

  • 3.3K Ohms           Resistor           2pc.

  • 360  Ohms           Resistor           4pc.

  • 0.1MF                 Capacitor        1pc.

  • 4.7MF                 Capacitor        1pc.

  • 0.1MF                 Capacitor        3pc.

  • Red LED              LED                6pc.

  • USB Connector                          1pc.

  • 4 PORT RG45 connector (4 pins)   1pc.

  • Crystal 6MZ                              1pc.

  • PCB                                         1pc.

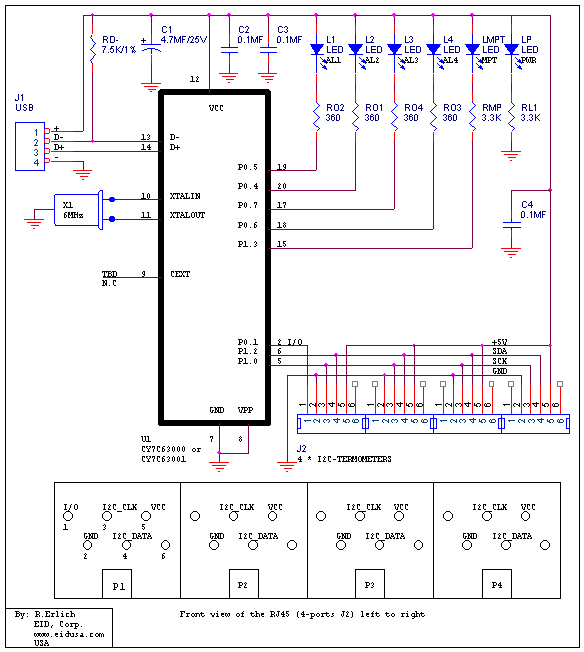

Schematic









Description and SKU#

Price


EUSB to 4 IC Temperature Kit

EID-K-EUSB-L4-I2CT-ASM   Fully assembled

EID-K-EUSB-L4-I2CT-PCB   PCB Only

EID-K-EUSB-L4-I2CT-KIT    Kit

EID-K-EUS-BS-LIB1S    Software (Library only)



69.00

18.63

39.00

12.00

Fully Assembled 4 Temp Sensors, with 3' wire, connector and cable.

EID-K-TEMP-DS1621-4S-ASM  4 Temp. Sensors

EID-K-TEMP-NSLM75-4S-ASM  4 Temp. Sensors





60.00



60.00





EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99





USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
