AMPER – CNDX conductivity amplifier interface. CELL K=1 with 10K@25C thermistor interface board, with built- in temperature compensation.



The AMPER-CNDX board is designed to perform conductivity measurement to voltage conversion. If used properly, it will eliminate the need for expensive board or conductivity meter, which would otherwise be needed to carry out the same tasks.



The AMPER-CNDX  is easy to install, setup and operate. If you want to do professional remote conductivity measurement related functions, The AMPER-CNDX offers the features you need. Mounted easily via four 0.125" mounting holes.



Simply connect the board to 9VDC or 9V battery connect your conductivity cell to the input and our board will convert it to voltage. ie. for  input equal to 1413 uS/cm the output voltage is 1413 mV.



The output can be connected to DVM (Digital Volt Meter) or ADC (Analog to Digital Converter)

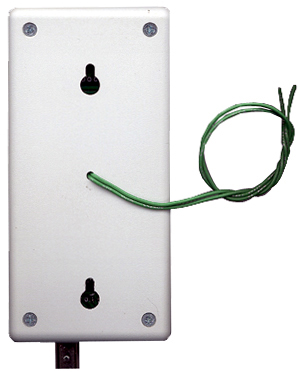

On the right picture of our conductivity interface enclosure with wall mounting holes (fit any US industrial standard outlet). This optional configuration includes the 9V power simulator as well as the conductivity interface board.









* For our big selection of conductivity cells click hear

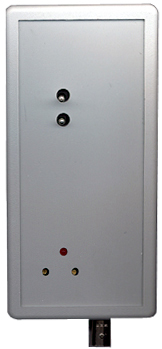

Shown above with three positions power switch; momentary-on, off and on.

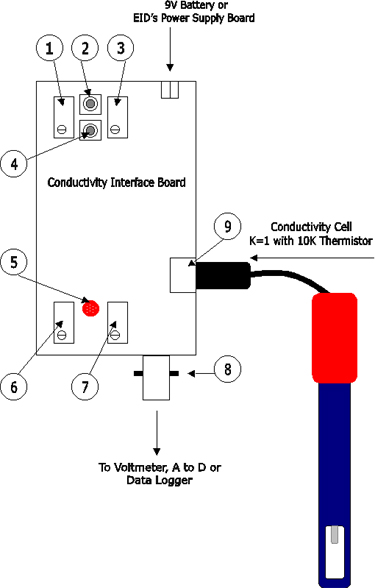

1. 0-200 uS/cm fine adjustment

2. range select:

    0-200 uS/cm

    0-2000 uS/cm

    0-7 mS/cm

 3. 0-2000 uS/cm fine adjustment

 4. Multi-positions power switch

 5. LED power indicator

 6. Zero adjustment

 7. Calibration adjusment

 8. Output via BNC connector

 9. Input via mini-DIN6 connector























AMPER-CNDX Features



  • Built-in power LED indicator.

  • Zero output multi-turn trimmer adjustment.

  • Calibration multi-turn trimmer adjustment.

  • 0-200 uS/cm multi-turn trimmer adjustment.

  • 0-7 mS/cm multi-turn trimmer adjustment.

  • Multi positions power switch (shipped standard push button power switch)

  • Power via 9V DC or 9V industrial standard battery.

  • Converts uS/cm or mS/cm to Voltage.

  • Built in temperature compensation

  • Accommodate any EID conductivity cell K=1 with 10K thermistor.

  • Can be customized to accommodate your requirement.

  • Industrial Standard output, ideal for remote sensing applications.

  • Linear voltage output.

  • Built in oscillator (cell driver)

On board multi-turn trimmers facilitates precise calibration of output voltage



Specifications

  • Input                                      Rated to 0-10mS/cm

  • Output Voltage                         0 – 7V standard, calibrated for 1413mV with 1413 uS/cm input @ 25C

  • PCB material                             FR4

  • Input Filter                               L.P.F. 60Hz

  • Max power consumption              0.25W

  • Temp. Compensation:                set for 10K ohms thermistor

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 9 [V]

  • Power source                            9VDC +/-5%, 50/60Hz, 0.6VA or                                                                            9VDC battery

  • Power indicator                          LED Red

  • Adjustment                               Via trimmers

  • Mounting                                  Four 0.125” holes

  • Manufacture                             100% in USA

Pricing



* Prices and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

AMPER-CND1  Conductivity cell to voltage converter with push button power switch



EID-AMPER-CND-PUSH



$379.00

AMPER-CNDS  Conductivity cell to voltage converter with 3 positions power switch



EID-AMPER-CND-3SWT



$399.00

AMPER-CND2  Conductivity cell 0-2000uS/cm to voltage converter with push button power switch



EID-AMPER-CND-2000



$349.00

AMPER-CNDW  Conductivity cell to voltage converter with push button power switch end wall mounted enclosure. Power via 11-18V DC or AC.





EID-AMPER-CND-WALL





$439.00

AMPER-CNDB  Conductivity cell to voltage converter Enclosure



EID-AMPER-CND-ENCL



$39.00

Battery simulator, Input up to 24V DC

output  +9VDC /0.5A Fully assembled



EID-K-VRG-09VA



$32.00

  •
