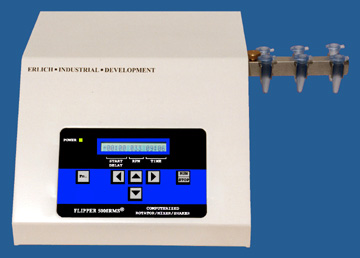

FLIPPER 5000RMS - Mixer, Rotator and Shaker

FLIPPER-5000RMS system is designed to perform three functions: rotating, mixing and wave shaking. If used properly, it will eliminate the need for three separate machines otherwise needed to accomplish the same tasks.

FLIPPER-5000RMS provides full range of features in a compact, easy-to-install, and user friendly unit. You will be able to control all functions from a conveniently mounted front panel or your PC. At all time a large Liquid Crystal Display (LCD) clearly shows the unit mode of operation.

Whether you are in the lab, field or at home, you can use the FLIPPER-5000RMS system for extended hands-off operation. No external timers are required for this device. it is equipped with an Uninterrupted Power Supply (UPS) which eliminates stoppages due to power failures.





Features

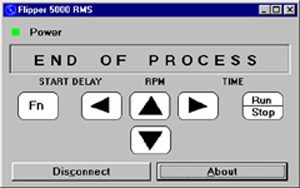

  • Software package

  • Uninterrupted Power Supply (UPS)

  • Set RPM, Time and other functions

  • Three modes of operations Rotating, Mixing and wave Shaking (RMS)

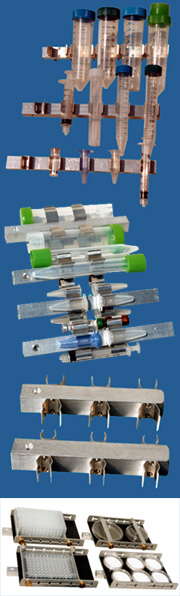

  • Many holder (clip-bars and tray) for mounting tubes petri-dish syringe and more

Specifications

  • Capacity                               up to 8 Channels two units can connected to

  • Power requirement                  110V/60Hz AC

  • Built in power supply                AC 110/220 [Volt], 50/60 [Hz]

  • Dimension                              10 x 6 x 10

  • Max power consumption           30 [W]

  • Storage temperature               40 - 70 [F]

  • operating temperature             50 - 77 [F]

  • PC connection via                   EID-F-F RS232

  • Internal Battery                      Rechargeable 12 [V] DC 1.2 [AH]

  • Tray Inside damnations:           7.25"*4.25"

Clip size



a. AAA holds tubes sizes 0.375" to 0.468"

b. AA holds tubes sizes 0.531" to 0.656"

c. C holds tubes sizes 0.875" to 1.125"

  • Process time:                          0 - 99:99 [Hours]

  • Stop time:                              0 - 99:99 [Minutes]

  • Delay time:                             0 - 99:99 [Hours]

  • RPM (Clip Bar)                          0 - 60 Revolutions Per Minute (RPM)

  • RPM (Clip Tray)                        0 - 60 Revolutions Per Minute (RPM)

  • Angle (Clip Bar)                        0 - 3600

  • Angle (Tray)                            0 - 450

Stop mode:

a. Fast - stop at 60 [RPM] (tray option 20 RPM)

b. Slow - stop at the next round up decade RPM

c. RPM  - stop at the current RPM

Pricing

* Pricing are subject to change without notice.

Description

SKU #

Price

FLIPPER-5000RMS EID-FLIPPER-5000-ARMS 2,699
Installation (option) EID-FLIPPER-5000-ARMS 19.99
REMOTE SOFTWARE EID-FLIPPER-5000-ASFT 79.99
10 AAA CLIPS BAR VERTICAL EID-FLIPPER-5000-VAAA 59.00
10 AA CLIPS BAR VERTICAL EID-FLIPPER-5000-V10A 52.00
10 C CLIPS BAR VERTICAL EID-FLIPPER-5000-V10C 49.75
6 AAA CLIPS BAR VERTICAL EID-FLIPPER-5000-V6AA 49.00
6 AA CLIPS BAR VERTICAL EID-FLIPPER-5000-V06A 32.00
6 C CLIPS BAR VERTICAL EID-FLIPPER-5000-V06C 39.75
8 AAA CLIPS BAR HORIZONTAL EID-FLIPPER-5000-H8AA 59.00
8 AA CLIPS BAR HORIZONTAL EID-FLIPPER-5000-H08A 52.00
8 C CLIPS BAR HORIZONTAL EID-FLIPPER-5000-H08C 59.75
4 D CLIPS BAR HORIZONTAL EID-FLIPPER-5000-H04D 49.75
TRAY EID-FLIPPER-5000-HTRY 60.00
TRAY BAR LOCK AND 2 SCREWS EID-FLIPPER-5000-HTRY 15.00
EID-F-F RS232 CABLE 6' EID-FLIPPER-0232-0002 14.99
POWER CABLE 110V/60 Hz 6' EID-FLIPPER-0PWR-110A 9.99
TRAINING (PER HOUR) EID-FLIPPER-5000-0000 49.34
