STIRRER-MS1PB/R & MS1AK/G/B  - single magnetic stirrers



The STIRRER-MS1XX system is designed to perform single stirrer function.



STIRRER-MS1XX is a single-station controlled-velocity magnetic stirrer. The STIRRER-MS1XX  is easy to install, setup and operate. If you want to do professional stirrer related functions, STIRRER-MS1XX offers the features you need. All controlled via a single-top mounted knob dedicated to control the speed of the platform.





STIRRER-MS1PB/R & MS1AK/G/B Features



  • Compact controlled velocity magnetic stirrer.

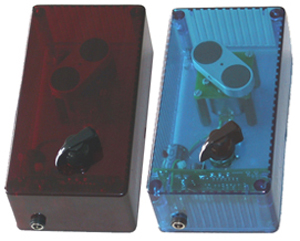

  • Chemical resistant blue or red see-thru enclosure molded from flame retardant, translucent polycarbonate (material carries a UL flammability rating of 94V-0). Models STIRRER-MS1PB and MS1PR or

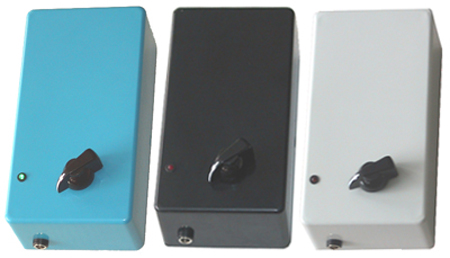

  • Enclosure molded from flame retardant Gray, black or  blue ABS plastic material carries a UL flammability rating of 94V-0. Models STIRRER-MS1AG, MS1AK and MS1AB
  • Unique enclosure with lap joint construction provides protection against damage from dust and splashing water
  • Governor motor provides predictable stirrer velocity.
  • Balanced aircraft aluminum dual magnet holder ensures consistent magnetic bar centering.
  • Built-in speed control and power LED indicator.
  • Also design to operate from 12VDC car battery for remote applications.

Specifications

  • Color:                                   See-thru blue or red, Gray, black or  blue

  • Enclosure material:                  Ragged Chemical resistant Polycarbonate or ABS

  • Motor:                                  Governor motor

  • Magnet holder:                       Balanced aircraft aluminum dual-magnet holder (1.125" on center)

  • Magnet bars size                     Accommodates 0.75" to 1.25" magnetic bars

  • Stirring Capacity:                    1 liter, approximately 0.26 gallons

  • Speed range min:                    90-120RPM

  • Speed range max:                   900-1200RPM

  • Dimension                              5.9 x 3.2 x 2

  • Power Supply US                     110/115VAC 60Hz  to 12-18VDC or VAC

  • Power Supply Europe                220/240VAC 60Hz  to  12-18VDC or VAC

  • Max power consumption            4W

  • Storage temperature                40 - 70   [F]

  • operating temperature              32 - 140 [F] (0 to 60C) @ 95% RH

  • low board DC voltage                +/- 12 [V]

  • Power indicator                        LED

  • Manufacture                           100% in USA

CNC Balanced Aluminum Magnets holder (Not plastic !)







Pricing



* Prices and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

Package includes stirrer, one magnetic bar, operation manual & power brick

STIRRER-MS1PB see-thru blue magnetic stirrer

EID-STIRRER-MS1-P00B

139.00

STIRRER-MS1PB see-thru Red magnetic stirrer

EID-STIRRER-MS1-P00R

139.00

STIRRER-MS1AB blue magnetic stirrer

EID-STIRRER-MS1-A00B

149.00

STIRRER-MS1AG gray magnetic stirrer

EID-STIRRER-MS1-A00G

149.00

STIRRER-MS1AK Black magnetic stirrer

EID-STIRRER-MS1-A00K

149.00

Training

Via phone per call (per 10 minutes)

EID-0PROBER-00PM-0010

12.00

Training (OPTION, PER HOUR)

EID-0PROBER-00PH-0001

49.34

Options

Daisy chain power feed per unit

EID-STIRRER-DCX-0001

27.00

Magnetic bar 1"

EID-STIRRER-BAR-0001

5.00

CNC Balanced Aluminum Magnet Holder

with 2 magnets and Hex-set screws

EID-STIRRER-MAG-H-2X

54.33
