STIRRER-MS2PB/R  - magnetic stirrers



The STIRRER-MS2PB/R system is designed to perform up to two stirrer functions simultaneously. If used properly, it will eliminate the need for two different stirrers, which would otherwise be needed to carry out the same tasks.

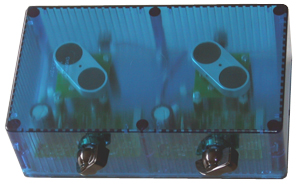

STIRRER-MS2PB/R is a dual-station controlled-velocity magnetic stirrer. The STIRRER-MS2PB/R  is easy to install, setup and operate. If you want to do professional stirrer related functions, STIRRER-MS2PB/R offers the features you need. All controlled via a single-front mounted knob dedicated to control the speed of each platform.

For additional pictures, click here.



STIRRER-MS2PB/R Features



  • Dual-station controlled-velocity magnetic stirrer.

  • Chemical resistant blue or red see-thru enclosure is molded from flame retardant, translucent polycarbonate (material carries a UL flammability rating of 94V-0).

  • Unique enclosure, with lap joint construction, provides protection against damage from dust and splashing water.

  • Governor motor provides predictable stirrer velocity.

  • Balanced aircraft aluminum dual-magnet holder ensures consistent magnetic bar centering.

  • Built-in dual speed control and power LED indicator.

  • Also design to operate from 12VDC car battery for remote applications.

Specifications

  • Color:                                   See-thru blue or red

  • Enclosure material:                  Ragged Chemical resistant Polycarbonate (material carries a                                            UL flammability rating of 94V-0)

  • Motor:                                  Governor motor

  • Magnet holder:                       Balanced aircraft aluminum dual-magnet holder (1.125" on center)

  • Magnet bars size                     Accommodates 0.75" to 1.25" magnetic bars

  • Stirring Capacity:                    1 liter, approximately 0.26 gallons

  • Speed range min:                    90-120RPM

  • Speed range max:                   900-1200RPM

  • Dimension                              7.5” x 4.3” x 2.25”

  • Power Supply US                     110/115VAC 60Hz  to 12-18VDC or VAC

  • Power Supply Europe                220/240VAC 60Hz  to  12-18VDC or VAC

  • Max power consumption            6W

  • Storage temperature                40 - 70   [F]

  • operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • low board DC voltage                +/- 12 [V]

  • Power indicator                        LED

  • Manufacture                           100% in USA

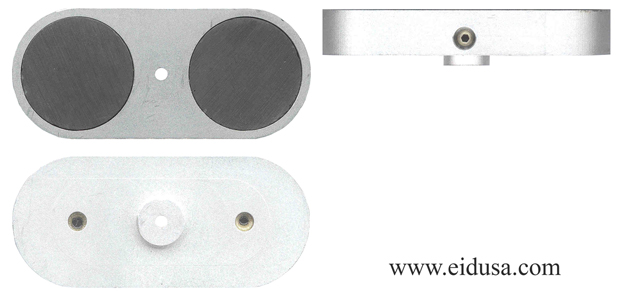

CNC Balanced Aluminum Magnets holder (Not plastic !)



Pricing



* Prices and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

Package includes stirrer, two magnetic bars, operation manual & power brick

STIRRER-MS2PB dual-station see-thru blue magnetic stirrer

EID-STIRRER-MS2-P00B

249.00

STIRRER-MS2PB dual-station see-thru red magnetic stirrer

EID-STIRRER-MS2-P00R

249.00

Training

Via phone per call (per 10 minutes)

EID-0PROBER-00PM-0010

12.00

Training (OPTION, PER HOUR)

EID-0PROBER-00PH-0001

49.34

Options

Daisy chain power feed per unit

EID-STIRRER-DCX-0001

27.00

Magnetic bar 1"

EID-STIRRER-BAR-0001

5.00



CNC Balanced Aluminum Magnet Holder

with 2 magnets and Hex-set screws

EID-STIRRER-MAG-H-2X

54.33

  •
