INTERFACER–QUAD-ADR4-SMT. Adjustable voltage/current sensitive quad relay control Board.



The INTERFACER-QUAD-ADR4-SMT board is designed to perform 4 relays switching function based on two set points voltages or currents levels "PICK UP" and "DROP OUT"



1. Per relay (Chanel) Differential ("Drop Out") voltage set point



2. Per relay (Chanel) Trip set point ("Pick Up")



The board can accommodate three industrial inputs configurations:



1. Input current 4-20mA (or 0-20mA)



2. Input current 1-5mA (or 0-5mA)



3. Input current 10-50mA (or 0-50mA)



4. Input voltage 0-5VDC



5. Input voltage 0-10VDC (or custom see Application note #108)



6. Input voltage 0-15VDC



7. Input voltage 0-20VDC



8. Input voltage 0-30VDC



9. Input voltage 0-60VDC

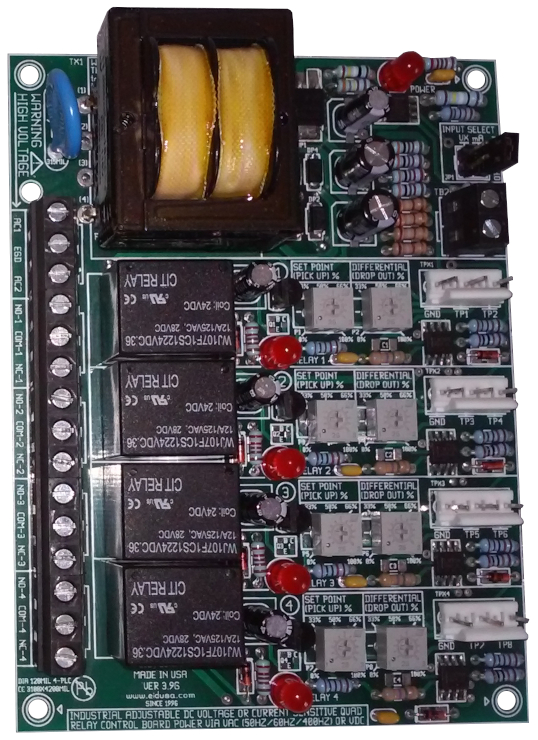

Voltage sensitive quad relay board shown above OEM in Trough-Hole configurations

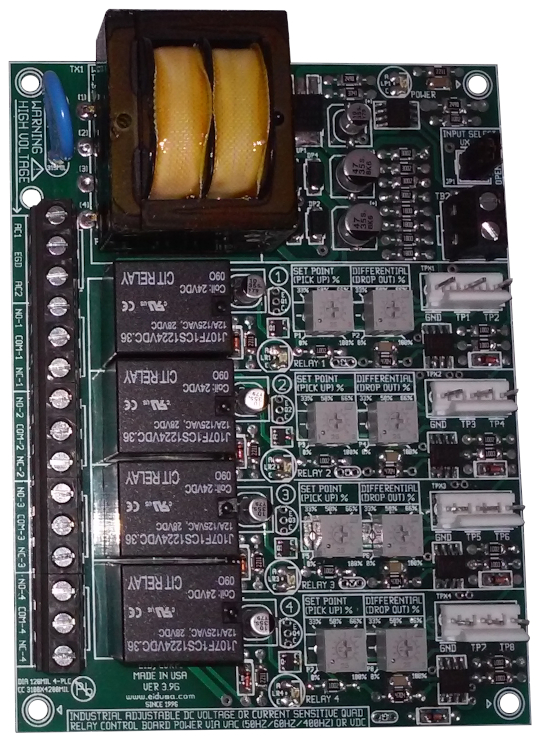

Voltage sensitive quad relay board shown above OEM in SMT configurations



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The INTERFACER-QUAD-ADR4-SMT-SMT is easy to install, setup and operate. If you want to do professional relay switching via setting of voltage or current, The INTERFACER-QUAD-ADR4-SMT-SMT offers the features you need.



As mentioned above, the board can be configured to accept input signals of 0-60V, 0-30V, 0-20V, 0-15V, 0-10V, 0-5V or 1-5mA, 4-20mA or 10-50mA.



Mounted easily via four 0.125" mounting holes.



Setting the board is simple Just follow these easy steps



1. Connect the board to 120VAC



2. Set the board via jumper provided to the desired input configuration (10V, 5V or 4-20mA).



3. Connect your voltage or current signal to the input. Set the each reference point until its relay turns on (LED will light up).



4. Adjust the input signal to the desired trip out point.



5. Adjust the each span trimmer until its relay turns off.



The board remembers input setting points and the relays will turn on and off based on them.



The board is ideal when an analog signal is required to switch 4 relay i.e. circulating pumps, recalculating fans, high and low fan speeds, humidifiers, pool chlorine feeding pumps, sensor level switching functions, differential switching controls, analog signal to relay on/off, analog signal voltage or current alarms and more.



Please drop us a line at HVAC@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.

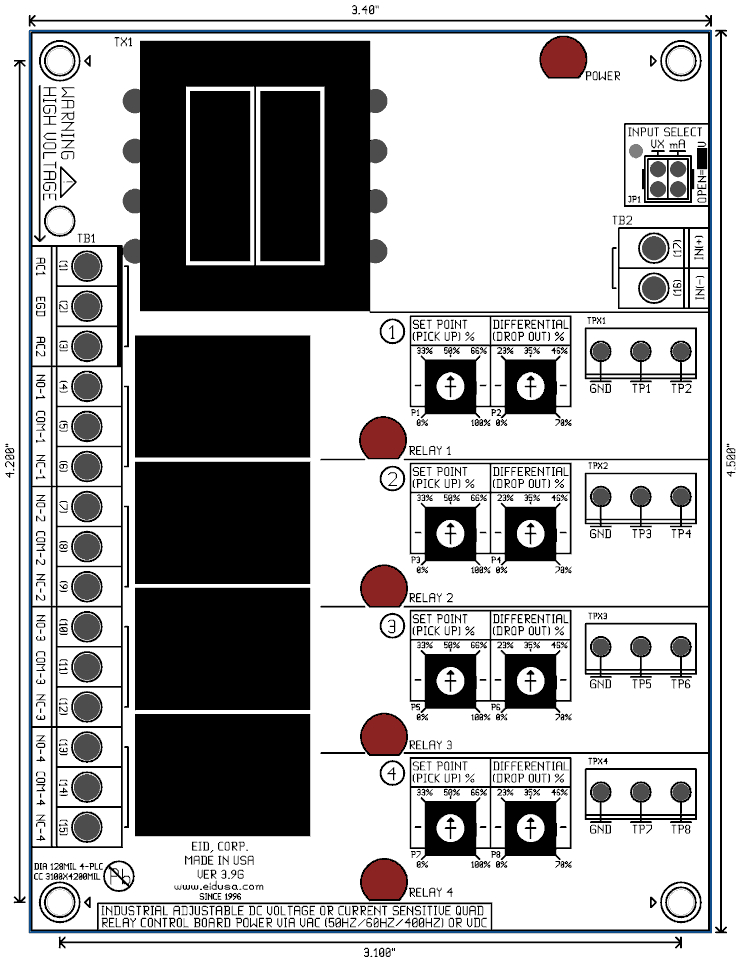

TB1:



Pins 1, 2 & 3 Power 120VAC +/-10% (50HZ/60HZ/400HZ) Hot, Neutral and Earth Ground



Pins 4, 5, 6 Relay 1 NC, COM & NC



Pins 7, 8,9 Relay 2 NC, COM & NC



Pins 10, 11,12 Relay 1 NC, COM & NC



Pins 13, 14, 15 Relay 2 NC, COM & NC



TB2:



Pins 16 & 17  Single Ended (SE) Input signal (Voltage/current)



Relay 1, 2, 3 & 4 SET POINTS (PICK UPS):



Per channel (relay) Set-point (Pick up) calibration trimmer "trip" adjustment.



Relay 1, 2, 3 & 4 DIFFERENTIAL (DROP OUT):



Per channel (relay) Differential (Drop out) calibration trimmer adjustment.



Test Point (TPX1 to TPX4):



Relay 1, 2, 3 & 4 SET POINTS (PICK UPS) & DIFFERENTIAL (DROP OUT) test point



Per channel (relay) Differential (Drop out) calibration trimmer adjustment.





JP1:



Input select: Voltage or current 0-5V, 0-10V, 4-20mA



RELAY LED



Per relay LED on indicator



POWER LED



LED, relay on indicator





INTERFACER-QUAD-ADR4-SMT-SMT Features



  • High and low voltage settings - relay switching points.

  • Input voltage or current settings via on-board jumpers.

  • Power via 120V AC +/-10%

  • Can be customized to accommodate your input voltage or current requirements.

  • Each Relay on LED indicator

  • Power on LED indicator

Specifications

  • PCB material: FR4

  • Input Signal: 0-60V, 0-30V, 0-20V, 0-15V, 0-10V or 0-5V or 1-5mA, 4-20mA, 10-50mA

  • Input impedance 0-10V non-isolated input: >100K Ohms

  • Input impedance 0-5V non-isolated input: >20K Ohms

  • Input impedance 4-20mA non-isolated input: >100K

  • Max power consumption: 0.5W

  • Set point: 0-100%

  • Deferential setting point: 0-70%

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: 24 [V]

  • Power source: 120V AC +/-10%

  • Adjustment: Via 1 turn pot. both Diff. and set points

  • Mounting: Four 0.125” holes

  • Manufactured: 100% in U.S.A.

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

INTERFACER-QUAD-ADR4-SMT-SMT 0-10 voltage to 4 relay on/off

EID-INTERF-ECER-Q-ADR4-10S

Call/E-mail

INTERFACER-QUAD-ADR4-SMT-SMT 0 0-5 voltage to 4 relay on/off

EID-INTERF-ECER-Q-ADR4-5S

Call/E-mail

INTERFACER-QUAD-ADR4-SMT-SMT 0 4-20mA current to 4 relay on/off

EID-INTERF-ECER-Q-ADR4-4-20S

Call/E-mail

INTERFACER-QUAD-ADR4-SMT-SMT 0 0-15V, voltage to 4 relay on/off

EID-INTERF-ECER-Q-ADR4-15S

Call/E-mail

INTERFACER-QUAD-ADR4-SMT-SMT 0 0-20V, voltage to 4 relay on/off

EID-INTERF-ECER-Q-ADR4-20S

Call/E-mail

INTERFACER-QUAD-ADR4-SMT-SMT 0 0-30V, voltage to 4 relay on/off

EID-INTERF-ECER-Q-ADR4-30S

Call/E-mail

INTERFACER-QUAD-ADR4-SMT-SMT 0 Comb. 0-5, 0-10 or 4-20mA to relay on/off

EID-INTERF-ECER-Q-ADR4-COMBS

Call/E-mail

Adj. via 2 multi-turn trimmer (up to 20 turns) trimmers (option)

EID-INTERF-ECER-QADR4-2MTTS

Call/E-mail

 •
