INTERFACER–ADR1-SMT. Adjustable voltage/current sensitive relay control Board.

The INTERFACER-ADR1 board is designed to perform relay switching function based on two set points voltages or currents level "PICK UP" and "DROP OUT"

1. Differential voltage set point

2. Trip set point

The board can accommodate three industrial inputs configurations:

1. Input current 4-20mA (or 0-20mA)

2. Input current 1-5mA (or 0-5mA)

3. Input current 10-50mA (or 0-50mA)

4. Input voltage 0-5VDC

5. Input voltage 0-10VDC (or custom see Application note #108)

6. Input voltage 0-15VDC

7. Input voltage 0-20VDC

8. Input voltage 0-30VDC

9. Input voltage 0-60VDC

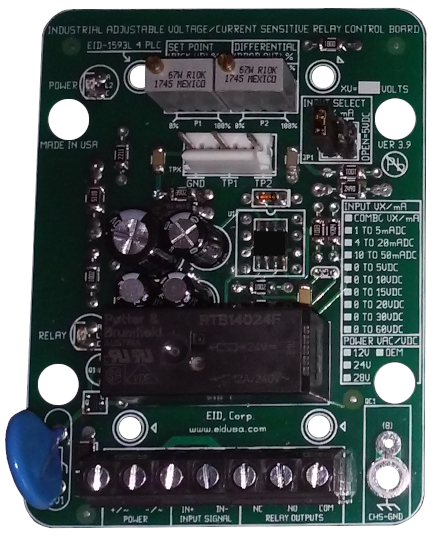

Shown above SMT version with two with two adjustable multi-turn trimmer (option) Input set to 0-10V DC

If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.

The INTERFACER-ADR1-SMT is easy to install, setup and operate. If you want to do professional relay switching via setting of voltage or current, The INTERFACER-ADR1-SMT offers the features you need.

As mentioned above, the board can be configured to accept input signals of 0-60V, 0-30V, 0-20V, 0-15V, 0-10V, 0-5V or 1-5mA, 4-20mA or 10-50mA.

Mounted easily via four 0.125" mounting holes.

Setting the board is simple Just follow these easy steps

1. Connect the board to 24VDC or 24VAC or 28VDC or 28VAC

2. Set the board via jumper provided to the desired input configuration (10V, 5V or 4-20mA).

3. Connect your voltage or current signal to the input. Set the reference point until relay turns on (LED will light up).

4. Adjust the input signal to the desired trip out point.

5. Adjust the span trimmer until the relay turns off.

The board remembers input setting points and the relay will turn on and off based on them.

The board is ideal when an analog signal is required to switch two position loads i.e. circulating pumps, recalculating fans, high and low fan speeds, humidifiers, pool chlorine feeding pumps, sensor level switching functions, differential switching controls, analog signal to relay on/off, analog signal voltage or current alarms and more.

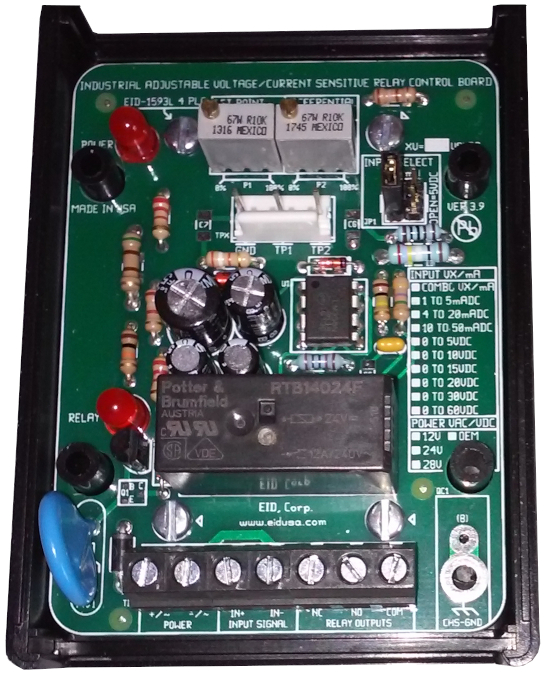

Shown above in optional Black enclosure P#EID-1593LBK (open) with two adjustable multi-turn trimmer (option).

Input set to 0-10VDC (Through-hole version).

Please drop us a line at HVAC@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.

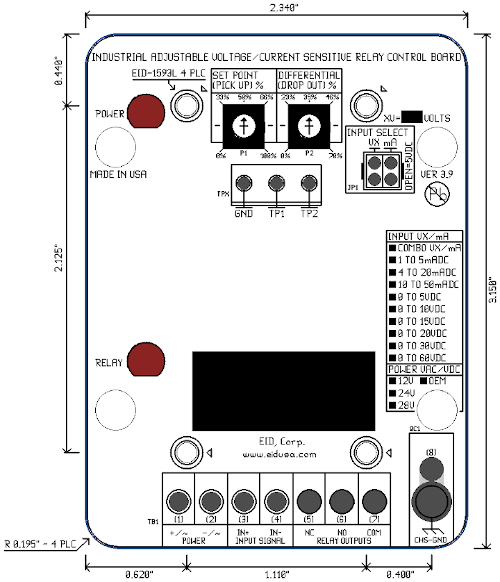

TB1:

Pins 1 & 2Power 24V or 28V AC or DC

Pins 3 & 4 Single Ended (SE) Input signal (Voltage/current)

Pins 3,6 & 7 Relay NC,NO & COM

SET POINT (PICK UP):

Set-point (Pick up) calibration trimmer adjustment.

DIFFERENTIAL (DROP OUT):

Differential (Drop out) calibration trimmer adjustment.

Test Point (TPX):

Relay SET POINTS (PICK UPS) & DIFFERENTIAL (DROP OUT) test point

JP1:

Input select: Voltage or current 0-5V, 0-10V, 4-20mA

RELAY LED

LED, relay on indicator

POWER LED

LED, relay on indicator

Mounting Option

Simply snap the Din-Rail mounded enclosure into your NEMA 4 box (enclosure) for watertight applications

EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side view

EID-1593LBK Black ABS plastic instrument enclosure with Din-Rail mounting options also available

INTERFACER-ADR1-SMT Features

• High and low voltage settings - relay switching points.

• Input voltage or current settings via on-board jumpers.

• Power via 24V or 28V DC or AC industrial standards.

• Can be customized to accommodate your input voltage or current requirements.

• Relay on LED indicator

• Power on LED indicator

Specifications

• PCB material: FR4

• Input Signal: 0-60V, 0-30V, 0-20V, 0-15V, 0-10V or 0-5V or 1-5mA, 4-20mA, 10-50mA

• Input impedance 0-10V non-isolated input: >100K Ohms

• Input impedance 0-5V non-isolated input: >20K Ohms

• Input impedance 4-20mA non-isolated input: >100K

• Max power consumption: 0.5W

• Set point: 10-100%

• Deferential setting point: 0-70%

• Storage temperature: 40 - 70   [F]

• Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage: 24 [V]

• Power source: 24VAC or 28V +/-5%, 50/60Hz, 1.7VA or 24VDC 1.4VA

• Adjustment: Via 1 turn pot. both Diff. and set points

• Mounting: Four 0.125” holes

• Manufactured: 100% in U.S.A.

Pricing

* Prices, SKU#, P# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

INTERFACER-ADR1-SMT 0-10 voltage to relay on/off

EID-INTERF-ECER-ADR1-10S

$189.27

INTERFACER-ADR1-SMT 0 0-5 voltage to relay on/off

EID-INTERF-ECER-ADR1-5S

$189.27

INTERFACER-ADR1-SMT 0 4-20mA current to relay on/off

EID-INTERF-ECER-ADR1-4-20S

$189.27

INTERFACER-ADR1-SMT 0 0-15V, voltage to relay on/off

EID-INTERF-ECER-ADR1-15S

$189.27

INTERFACER-ADR1-SMT 0 0-20V, voltage to relay on/off

EID-INTERF-ECER-ADR1-20S

$189.27

INTERFACER-ADR1-SMT 0 0-30V, voltage to relay on/off

EID-INTERF-ECER-ADR1-30S

$189.27

INTERFACER-ADR1-SMT 0 Comb. 0-5, 0-10 or 4-20mA to relay on/off

EID-INTERF-ECER-ADR1-COMBS

$189.27

Adj. via 2 multi-turn trimmer (20 turns) trimmers (option)

EID-INTERF-ECER-ADR1-2MTTS

$25.99

TRANSDUCER-DVMA420-ZSE EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options.

EID-CONVER-TER-VC420-D-BLU

$25.99

Modified Translucent blue ABS Plastic Instrument enclosures option.

EID-1593LTBU

$15.75

Modified black ABS Plastic Instrument enclosures option

EID-1593LBK

$10.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.44

 ^•
