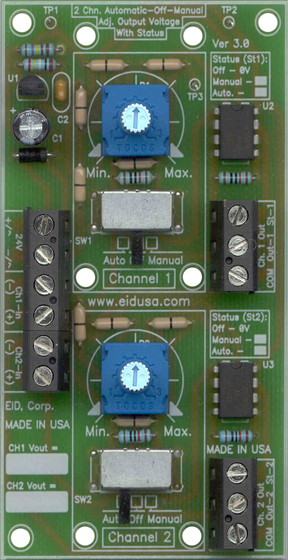

INTERFACER-2CSO. High accuracy dual channel signal override board, with per channel three position switch and switch feedback status (alarms).

The INTERFACER-2CSO board is designed to perform three tasks: A. Pass a voltage signal to the Controller, HAVC, PLC, Damper or Actuator directly from the remote signal. B. Cut the signal from the remote location. C. Provide manual simulation of 0 to10V signal. If used properly, it will eliminate the need for expensive filed adjustment equipment which would otherwise be needed to carry out the same tasks. This board is ideally for Damper and Actuator signal override.

The INTERFACER-2CSO board installs between a controller or PLC and an actuators to provide adjustable analog (voltages) override when needed. In normal operation the corresponding signals route from the PLC or controller through the board to the actuators or dumpers. Switching to override from automatic to manual, allows the engineer to independently checkout  of actuators, dumpers and linkage operation to the controller utilizing the front mounted potentiometers. Additionally, provides temporary override voltages or cut the signals if the controller malfunctions. The controller or the PLC at any given time will know the status via the feedback status output.

INTERFACER-2CSO is easy to install, setup and operate. If you want to do professional voltage measurement and setting related functions, INTERFACER-2CSO offers the features you need. Mounted easily via up to nine 0.125" mounting holes.

The board design to powered via industrial standard 24V DC or AC.

Output voltage fine Adjustment via front mounted Potentiometers.

All wires to and from the board down via contently Terminal Blocks.

Additionally the board has two per channel corresponding feedback output  of switch Status, allow the remote controller to detect the Switch position:

0V Dc for off position (signal cut off)

5V DC for Manual position,

10V DC for Automatic (pass through position)

Options

You can purchase the INTERFACER-2CSO with 0-10V DC output (standard), or with your desire output voltage range.

INTERFACER-2CSO Features

• Hand off operation for fine 0 to 10V DC output adjustment via trimmer.

• 3 positions switch: Hand (manual output, override simulator) - Off - Automatic (pass through signal)

Specifications

• PCB material                            FR4

• Output Voltage                        Ref. to ground voltage

• Max power consumption            0.1W

• Storage temperature                40 - 70   [F]

• Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage               5 or 9 [V]

• Power source                          24V simulator

• Manufactured                         100% in USA

Pricing

* Prices, P#, SKU# and colors are subject to change without notice.

INTERFACER-2CSO High accuracy 2 channels signal switching Manual-Off-Automatic interface board. Power via 24V DC or AC.

EID-INTERF-ACER-2CSO-XX10

$97.89

  ^•
