Dual outputs adjustable reference voltage + PS



The board is designed to convert 7-24V Volts AC or DC to stabilize two voltage outputs:



Output #1: 5,6,9 or 12V DC.



Output #2: Adj. 0 to 0.50V, 0.75V, 1.00V, 1.25V, 2.00V, 2.25V or 2.50V DC.



If used properly, it will eliminate the need for expensive industrial reference power supplies, which would otherwise be needed to carry out the same task.



The is easy to install, setup and operate. Mounted easily via two 0.125" mounting holes.



On board multi-turn trimmer adjustment facilitates precise calibration of output voltage.



This unique board design provides you with the ability to wire your wires easily via front mounted terminal blocks (6).

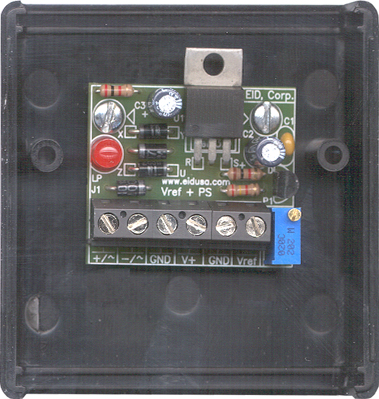

Shown above with two outputs: 5VDC/800mA power supply, and  adj. output voltage 0 to 2.25VDC. LED power indicator (option).






Board, shown above mounted in plastic enclosure (EID-1593 series enclosure).



Note:



Plastic enclosure sold separately (for demonstration only).



For our 110V or 220V to 12VAC, 14VAC, 16VAC, 18VAC or 24VAC power down transformer (Class 2 type transformers EID-BP series) click Here






Features



  • 5V, 9V or 12V DC. Up to 800mA output. With +/-3% voltage stability.

  • Adj. 0 to 0.75, 1.25, 2.00, 2.25 or 2.75V DC, Up to 90mA output. With +/-2% voltage stability.

  • Power switch option.

  • Generally powered from any power source, AC or DC, that is larger then 2 volts of the desired DC output voltage (up to 24V).

  • Also, designed to operate from 12VDC car battery via Our 12v to 9V adapter for remote applications.

Specifications

  • Input voltage                           7-24V AC or DC

  • Relative Output voltage stability  +/-3%

  • Output 1 current                       Up to 800mA, higher output current models are available.

  • Output 2 current                       Up to 90mA, higher output current models are available.

  • PCB material                             FR4

  • Output 1 Voltage                      5,6,9 or 12V DC

  • Output 2 Voltage                      Adj. 0 to 0.5, 0.75, 1.00, 1.25, 2.00 or 2.75V DC

  • Max power consumption             10W

  • Storage temperature                 40 - 70   [F]

  • Operating temperature               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                29[V] max

  • Power indicator                         Red LED

  • Manufactured                           100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

V_ref (0 to 0.50V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-0050

$62.00

V_ref (0 to 0.50V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-0050

$63.00

V_ref (0 to 0.50V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-0050

$64.00

V_ref (0 to 0.75V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-0750

$62.00

V_ref (0 to 0.75V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-0750

$63.00

V_ref (0 to 0.75V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-0750

$64.00

V_ref (0 to 1.00V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-1000

$62.00

V_ref (0 to 1.00V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-1000

$63.00

V_ref (0 to 1.00V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-1000

$64.00

V_ref (0 to 1.25V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-1250

$62.00

V_ref (0 to 1.25V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-1250

$63.00

V_ref (0 to 1.25V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-1250

$64.00

V_ref (0 to 2.00V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-2000

$69.00

V_ref (0 to 2.00V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-2000

$73.00

V_ref (0 to 2.25V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-2000

$74.00

V_ref (0 to 2.25V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-2250

$69.00

V_ref (0 to 2.25V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-2250

$73.00

V_ref (0 to 2.25V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-2250

$74.00

V_ref (0 to 2.50V) 90mA + 5V/800mA PS board

EID-POWER-PS-05V-ADJ0-2500

$69.00

V_ref (0 to 2.50V) 90mA + 9V/800mA PS board

EID-POWER-PS-09V-ADJ0-2500

$73.00

V_ref (0 to 2.50V) 90mA + 12V/800mA PS board

EID-POWER-PS-12V-ADJ0-2500

$74.00

Jumbo-LED power indicator option

EID-POWER-PS-ADJ-LED

$1.5

Power switch addition.

EID-POWER-PS-24V-PSW

$3.99

  •
