INTERFACER-HAT5. High accuracy temperature interface board, utilizing Industrial standard temperature sensor (transducer) AD590.



The INTERFACER-HAT5 board is designed to perform high accuracy temperature conversion. If used properly, it will eliminate the need for expensive temperature meters, which would otherwise be needed to carry out the same tasks.



INTERFACER-HAT5 is easy to install, setup and operate. If you want to do professional temperature measurement related functions, INTERFACER-HAT5 offers the features you need. Mounted easily via four 0.125" mounting holes.



The board design to powered via 5V or 9VDC.



Four main models are available:



1. INTERFACER-HAT5C5 converts the current produced by the transducer AD590 to voltage that represents temperature in degrees Centigrade (C). This model operates on 5VDC.



2. INTERFACER-HAT5F5 converts the current produced by the transducer AD590 to voltage that represents temperature in degrees Fahrenheit (F). This model operates on 5VDC.



3. INTERFACER-HAT5C9 converts the current produced by the transducer AD590 to voltage that represents temperature in degrees Centigrade (C). This model operates on 9VDC.



4. INTERFACER-HAT5F9 converts the current produced by the transducer AD590 to voltage that represents temperature in degrees Fahrenheit (F). This model operates on 9VDC.



The AD590 is a two terminal integrated circuit (IC) temperature transducer. The IC's linear current output is equal to 1uA per deg Kelvin (K). It's ideal for remote temperature sensing up to hundreds of feet from the board when shielded twisted pair wire is used. The board will convert it to degrees C or F, depending on model.

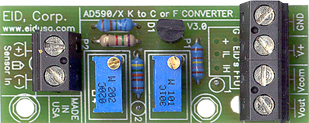

Shown above with terminal blocks configuration

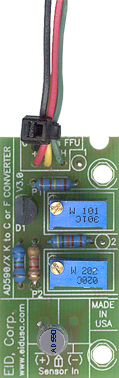

Shown above with AD590 sensor and wires configuration

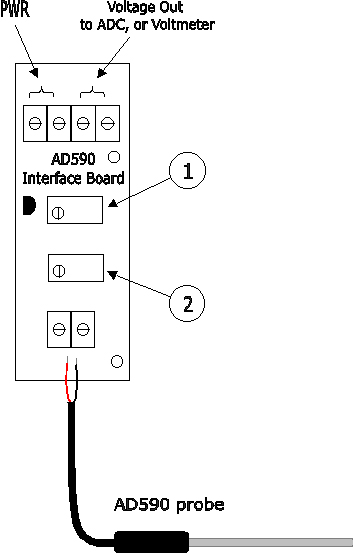

1. Fine Adjustment

2. Reference Adjustment. 273.15mV for model A (result in degrees C) . 523.67mV for model B. (result in degrees F.)





Options



You can purchase the INTERFACER-HAT5XX (X=model #) standard, without lid--or with 6" wire lids or with terminal blocks, for additional cost. See price list below.





INTERFACER-HAT5 Features



  • Fine adjustment via multi turn trimmer.

  • Reference adjustment via multi turn trimmer.

  • Connection via external wires or terminal blocks (option).

Specifications

  • PCB material                            FR4

  • Output Voltage                        Ref. to ground voltage

  • Max power consumption            0.1W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               5 or 9 [V]

  • Power source                          5VDC or 9V battery or EID's 9V voltage simulator

  • Manufactured                         100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

INTERFACER-HAT5C5 High accuracy temperature interface board. Degree C. Power via 5VDC.

EID-INTERF-ACER-HAT5C5

$29.00

INTERFACER-HAT5C5 High accuracy temperature interface board. Degree C with 6" wires (6). Power via 5VDC.

EID-INTERF-ACER-HAT5C5-W

$35.00

INTERFACER-HAT5F5 High accuracy temperature interface board. Degree F. Power via 5VDC.

EID-INTERF-ACER-HAT5F5

$29.00

INTERFACER-HAT5F5 High accuracy temperature interface board. Degree F with 6" wires (6). Power via 5VDC.

EID-INTERF-ACER-HAT5F5-W

$35.00

INTERFACER-HAT5C9 High accuracy temperature interface board. Degree C. Power via 9VDC.

EID-INTERF-ACER-HAT5C9

$31.00

INTERFACER-HAT5C9 High accuracy temperature interface board. Degree C with 6" wires (6). Power via 9VDC.

EID-INTERF-ACER-HAT5C9-W

$37.00

INTERFACER-HAT5F9 High accuracy temperature interface board. Degree F. Power via 9VDC.

EID-INTERF-ACER-HAT5F9

$31.00

INTERFACER-HAT5F9 High accuracy temperature interface board. Degree F with 6" wires (6). Power via 9VDC.

EID-INTERF-ACER-HAT5F9-W

$37.00

AD590K in a TO-92 case

EID-INTERF-ACER-590-TO92

$15.99

Power switch addition.

EID-INTERF-ACE-HAT5-PSW

$3.99

4P Terminal blocks + installation & Q/A addition.

EID-398800304-X

$0.40

Terminal blocks + installation & Q/A Addition.

EID-39880030X-IQA

$3.00

  •
