4 pre-adjustable output power supply board module with output select via push button switch.



The POWER-36PX4 power supply board is designed to convert AC or DC input voltage to stabilize custom 4 adjustable DC voltage output (1.25 to 24V DC each, separately) via push button switch.



If used properly, it will eliminate the need for up to four expensive industrial power supplies, which would otherwise be needed to carry out the same task.



The POWER-36PX4 is easy to install, setup and operate. If you want to  professionally power your lab test environment input voltage boards and/or products, the POWER-36PX4 offers the features you need. Mounted easily via  0.125" mounting holes (choose from up to 11).



This unique board is designed to attenuate, filter and regulate 12-36V DC or AC to up to four stable custom output DC Volts.



The POWER-36PX4 will replace up to 4 power supply.



For our line of transformers click Here



Note: Heat-sink and push button are available, and are sold separately.

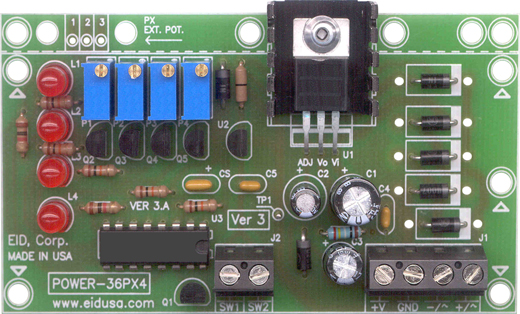

Shown above with 4 adjustable regulate output 1.25V to 24V DC

in a low current configuration with Heat-Sink (sold separately).



Please drop us a line at sales@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important-- one of our engineers will be happy to help you achieve them.







Note: for lab testing equipment, our linear low cost small size 4 adjustable output voltage power supply board model is a must!



For our Isolation AC Power Transformer board click Here

POWER-36PX4 Features

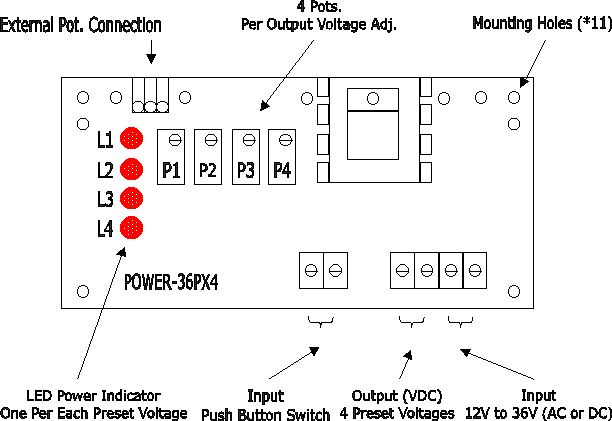

  • Up to 250mA 4 selectable output via push button switch.

  • 4 LED power indicators and output for each selectable voltage indication.

  • 4 multi-turn trimmers (Pots.) for easy output stable voltages calibration.

  • Generally powered from any power source, AC or DC, that is larger then 2 volts of the desired output voltages.

  • Also, designed to operate from two or three 12VDC car batteries for field applications.

Specifications

  • Input voltage                           12-36V AC or DC

  • Relative Output voltage stability  +/-3%

  • Output current                         Up to 250mA, higher output current models are available.

  • PCB material                             FR4

  • Output Voltage                         Custom from 1.25V to 24V DC set via multi-turn trimmer

  • Max power consumption             7W

  • Storage temperature                 40 - 70   [F]

  • Operating temperature               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                36[V] max

  • Manufactured                           100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

Low current 4 pre-adjustable output (1.5 to 24V DC) power supply board with output select via push button switch.

EID-POWER-36P-X4-NH-LC

$138.93

High current 4 pre-adjustable output (1.5 to 24V DC) power supply board with output select via push button switch.

EID-POWER-36P-X4-NH-HC

$177.87

  •
