The Audio Type Transformers 1608 to 1620, 1645, 1650 series. "Classic push-pull ultra-linear audio tube transformers.



1650 Picture



Key Features:

  • Designed for push-pull tube output circuits.

  • Enclosed (shielded), 4 slot, above chassis Type "X" mounting, both end bells include knockouts for optional above chassis wiring.

  • Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum. Except the 1650E (70 Hz. to 30 Khz. +/- 1 db max. - ref. 1 Khz.)

  • Insulated flexible leads 8" min.

  • All units (except the EID-1650G) include 40% screen taps for Ultra-Linear operation (if desired).

  • Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output. The 1650G does NOT have primary screen taps and will not support "Ultra-Linear" applications.

  • For the "ultimate" in Push-Pull output see our line of epoxy potted output transformers.

P#

Audio Watts (RMS)

Primary Impedance

Max. DC Per Side

Secondary Impedance

Wt. Lbs.

EID-1608

10

8,000 ct

100 ma.

4-8-16

2.5

EID-1609

10

10,000 ct

100 ma.

4-8-16

2.5

EID-1615

15

5,000 ct

100 ma.

4-8-16

3.25

EID-1650E

15

8,000 ct

100 ma.

4-8-16

3.5

EID-1620

20

6,600 ct

158 ma.

4-8-16

3.5

EID-1650F

25

7,600 ct

128 ma.

4-8-16

4

EID-1645

30

5,000 ct

128 ma.

4-8-16-70V

4.5

EID-1650G

35

6,600 ct

200 ma.

3.5/8/16/250/500

5

EID-1650H

40

6,600 ct

200 ma.

4-8-16

6.5

EID-1650K

50

3,400 ct

318 ma.

4-8-16

7

EID-1650N

60

4,300 ct

318 ma.

4-8-16

8

EID-1650P

60

6,600 ct

200 ma.

4-8-16

8

EID-1650R

100

5,000 ct

318 ma.

4-8-16

12

EID-1650T

120

1,900 ct

403 ma.

4-8-16

14

EID-1650W

280

1,900 ct

806 ma.

4-8-16

28


Suggested Tube Types:



P#

Audio Watts (RMS)

Primary
Impedance

Operation

Tube Types

EID-1608

10

8,000 ct

Push-Pull (2 Tubes)

6AQ5, 6V6, 6BQ5, EL84

EID-1609

10

10,000 ct

Push-Pull (2 Tubes)

6AQ5, 6V6, 6BQ5, EL84

EID-1615

15

5,000 ct

Push-Pull (2 Tubes)

2A3, 6A3, 6AQ5, 6B4G, 6L6, 6V6

EID-1650E

15

8,000 ct

Push-Pull (2 Tubes)

6AQ5, 6V6, 6BQ5, EL84

EID-1620

20

6,600 ct

Push-Pull (2 Tubes)

6AQ5, 6L6, 6V6

EID-1650F

25

7,600 ct

Push-Pull (2 Tubes)

6L6GC, 6V6, 807, 5881, EL34

EID-1645

30

5,000 ct

Push-Pull (2 Tubes)

6L6GC, 6V6, 807, 5881, EL34

EID-1650G

35

6,600 ct

Push-Pull (2 Tubes)

6L6GC, 807, 5881, EL34

EID-1650H

40

6,600 ct

Push-Pull (2 Tubes)

6L6GC, 807, 5881, EL34

EID-1650K

50

3,400 ct

Push-Pull Par. (4 Tubes)

6L6GC, 807, 5881, EL34, 6146B, 6550B

EID-1650N

60

4,300 ct

Push-Pull Par. (2 or 4 Tubes)

6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88

EID-1650P

60

6,600 ct

Push-Pull (2 Tubes)

6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88

EID-1650R

100

5,000 ct

Push-Pull Par. (2 or 4 Tubes)

807, 5881, EL34, 6146B, 6550B, KT88

EID-1650T

120

1,900 ct

Push-Pull Par. (4 or 6 Tubes)

6L6GC, 5881, EL34, 6550B, KT88

EID-1650W

280

1,900 ct

Push-Pull Par. (6 or 8 Tubes)

6L6GC, 5881, EL34, 6550B, KT88



Notes:



The above examples of possible combinations are to help you narrow down the choices of transformers for your favorite tube types. How you operate the tubes (push-pull, push-pull parallel, ultra-linear, class, B+, bias, operating points, etc.) will change optimum plate to plate load impedance. Only a few of the most popular tubes are shown. As more tubes become available we will add them to the list.


A tube manual or tube manufacturer's technical data sheets should be consulted first, before making a decision on a proper output transformer.



Mechanical Data:

Push-Pull Line Art

P#

Dimensions (Inches)

A

B

C

D

E
+/- 1/16"

G
Slot

EID-1608

2.5

2.75

3.06

2

1.69

.203 x .38

EID-1609

2.5

2.75

3.06

2

1.69

.203 x .38

EID-1615

2.5

3.25

3.06

2

2.19

.203 x .38

EID-1650E

2.5

3.25

3.06

2

2.5

.203 x .38

EID-1620

2.5

3.5

3.06

2

2.44

.203 x .38

EID-1650F

2.5

3.5

3.06

2

2.44

.203 x .38

EID-1645

2.5

3.75

3.06

2

2.69

.203 x .38

EID-1650G

3.13

3.75

3.81

2.5

2.25

.203 x .38

EID-1650H

3.13

4

3.81

2.5

2.69

.203 x .38

EID-1650K

3.13

4

3.81

2.5

2.69

.203 x .38

EID-1650N

3.13

4.25

3.81

2.5

2.94

.203 x .38

EID-1650P

3.13

4.25

3.81

2.5

2.94

.203 x .38

EID-1650R

3.75

4.25

4.56

3

3.06

.203 x .38

EID-1650T

3.75

4.5

4.56

3

3.31

.203 x .38

EID-1650W

4.38

7.5

5.25

3.5

5.88

.203 x .38


Schematic & Hook Up Data (except 1650E, 1645 & 1650G):

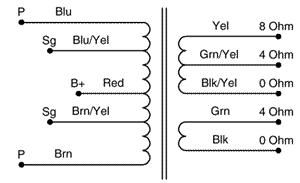

Push-Pull Schematic





Secondary Connections



 Secondary Schematic (4 Ohm)

Secondary Schematic (8 Ohm)

Secondary Schematic (16 Ohm)



Note:


Primary & secondary connections above, do NOT include the 1650G.
The primary of only the 1650G does not include screen taps (see below).
The 1650G has a single secondary winding, tapped at each impedance point.




Schematic & Hook Up Data (1650E only):

1650E Schematic

To hook up secondary loads simply use Com (Common wire - Blk) and the corresponding wire for the secondary load required (ie...for an 8 Ohm load use the Blk and Blk/Grn wire).




Schematic & Hook Up Data (1650G only):

1650G Schematic

To hook up secondary loads simply use Com (Common wire - Blk) and the corresponding wire for the secondary load required (ie...for an 8 Ohm load use the Blk and Grn wire).


Schematic & Hook Up Data (1645 only):

1645 Schematic

  • To hook up 4/8/16 ohm secondary loads - see "Secondary Connections" data above.

  • To hook up secondary to 70V loads, jumper Blk/Yel wire to Grn wire. Connect load to Blk and White wires.

  •
