The Audio Type Transformers 1650P series. "Classic push-pull potted ultra-linear tube output transformers.



1650 Potted Picture



Key Features:

  • Designed for push-pull tube output circuits.

  • Enclosed in a drawn steel case, the transformer is completely potted in epoxy.

  • Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. ref. 1 Khz) minimum.

  • Lead connection is via 10 bottom mounted lugs.

  • All units include 40% screen taps for Ultra-Linear operation (if desired).

  • Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.

P#

Audio Watts

Primary Impedance

Max. DC Per Side

Secondary Impedance

Wt. Lbs.

EID-1650KP

50

3400 ct

318 ma.

4/8/16

11

EID-1650PP

60

6600 ct

200 ma.

4/8/16

12

EID-1650RP

100

5000 ct

317 ma.

4/8/16

18



Suggested Tube Types:



P#

Audio Watts

Primary Impedance

Tube Types

EID-1650KP

50

3400 ct

6L6GC, 807, 5881, EL34, 6146B, 6550B

EID-1650PP

60

6600 ct

6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88

EID-1650RP

100

5000 ct

807, 5881, EL34, 6146B, 6550B, KT88



Notes:



The above examples of possible combinations are to help you narrow down the choices of transformers for your favorite tube types. How you operate the tubes (push-pull, push-pull parallel, ultra-linear, class, B+, bias, operating points, etc.) will change optimum plate to plate load impedance. Only a few of the most popular tubes are shown. As more tubes become available we will add them to the list.


A tube manual or tube manufacturer's technical data sheets should be consulted first, before making a decision on a proper output transformer.



Mechanical Data:

1650 Potted (Side View)

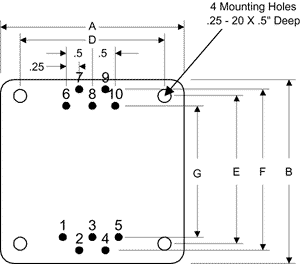

1650 Potted (Bottom View)





P#

Dimensions (Inches)

A

B

C

D

E

F

G

EID-1650KP

3.31

3.88

4.25

2.5

3

3.31

2.56

EID-1650PP

3.31

3.88

4.25

2.5

3

3.31

2.56

EID-1650RP

4.25

5

5.44

3.38

4.25

4.5

3.75



Schematic & Hook Up Data:

1650 Potted Schematic



Secondary Connections

 Secondary Schematic (4 Ohm)

Secondary Schematic (8 Ohm)

Secondary Schematic (16 Ohm)



  •
