Rack Accessories (Panel Mount Shelves)



Click Here To Enlarge











Panel Rail Mounted
Dual Modem Shelves
(Vented or Unvented)

  • Dual modem shelf permits front and rear access to modems on open relay racks

  • Unvented version available in either 19" or 23" rack panel width

  • Uses 3.5" (2U) of vertical panel space

  • Overall 19.5" deep

  • The vented version provides a sturdy shelf without obstructing upward heat movement

  • 16-gauge steel construction

  • Rugged powder paint finish

  • Requires mounting hardware
Click Here To Enlarge



VENTED



Part Number

1-99

Color

Panel Width

Paint Texture

EID-DNDMV19BK1



Black

19"

Textured

EID-DNDMV19GY2



ASA61 Grey

19"

Smooth



UNVENTED



Note: Weight load tested (EID-DNDMS23BK1) to 200 pounds.

Part Number

1-99

Color

Panel Width

Paint Texture

EID-DNDMS19BK1



Black

19"

Textured

EID-DNDMS19GY2



ASA61 Grey

19"

Smooth

EID-DNDMS23BK1



Black

23"

Textured





Click Here To Enlarge

Click Here To Enlarge

Panel Rail Mounted
Fixed Chassis/Shelf (Vented or Unvented)

  • Shelves feature formed 14-gauge steel construction

  • Available in either 19" or 23" rack panel width

  • Mounts to front rail either as an internal shelf or external shelf/work area

  • Available depths of either 15” or 20"

  • 17.25” wide and uses 5 1/4” (3U) of panel space

  • Available in either vented or unvented versions

  • Rugged powder paint finish

  • Requires mounting hardware

VENTED



Part Number

Color

Paint
Texture

1-9

10-99

100-999

Panel Width

Shelf Depth

EID-RASV190515BK1
EID-RASV190515CG1
EID-RASV190515GY2

Black
Grey/Beige
ASA61 Grey

Textured
Textured
Smooth







19"

15"

EID-RASV190520BK1
EID-RASV190520CG1

Black
Grey/Beige

Textured
Textured







19"

20"

EID-RASV230515BK1

Black

Textured







23"

15"

EID-RASV230520BK1

Black

Textured







23"

20"



Note: Weight load tested (EID-RASV240515BK1) to 200 pounds.


UN-VENTED



Part Number

Color

Paint
Texture

1-9

10-99

100-999

Panel Width

Shelf Depth

EID-RASU190515BK1
EID-RASU190515CG1
EID-RASU190515GY2

Black
Grey/Beige
ASA61 Grey

Textured
Textured
Smooth







19"

15"

EID-RASU190520BK1
EID-RASU190520CG1

Black
Grey/Beige

Textured
Textured







19"

20"

EID-RASU230515BK1

Black

Textured







23"

15"

EID-RASU230520BK1

Black

Textured







23"

20"



Note: Weight load tested (EID-RASU240515BK1) to 200 pounds.

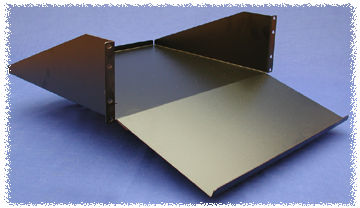

RKBM Shelf

Panel Rail Mounted
Keyboard/Monitor Shelf

  • Mounts to panel rails using 5.25" (3U) of vertical panel space

  • Extends 15" back from front panel

  • Slanted keyboard section is 8.5"

  • Rear lip to reduce chance of monitor being pushed off rear of shelf

  • Available in either 19" or 23" rack panel width

  • 14 Ga. steel construction

  • Finished in rugged black textured powder paint

  • Requires mounting hardware



Part Number

1-99

Color

Panel Width

RKBM19BK1



Black

19"

RKBM23BK1



Black

23"



Note: Weight load tested (RKBM23BK1) to 160 pounds.

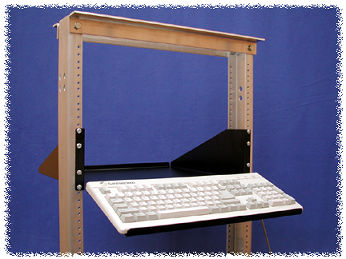

Shelf mounted to open aluminum Relay Rack



RKBM Shelf mounted



RASE Shelf

Panel Rail Mounted
Equipment Shelf

  • Standard 19" rack mount

  • A closed shelf with 1.5” dia. holes in each bottom corner for cord access

  • Fabricated from 18 gauge steel

  • Inside dimensions 17.2” wide x 15” deep

  • Opening height is only 1” less than panel height

  • Finished in white (to aid visibility), powder paint

  • Requires mounting hardware



Part Number

1-99

Color

Paint
Texture

Panel Height

EID-RASE1900815WH2



White

Smooth

 8.75"

EID-RASE1901015WH2



White

Smooth

 10.50"

EID-RASE1901215WH2



White

Smooth

 12.25"


Note: Weight load tested (EID-RASE191215WH2) to 75 pounds.



 Notes:

  • All Dimensions in inches

  •
