Filter Fan Grills Create your own filter fans or exhaust grills Mounts easily with 4 screws using template and hardware provided. Complete with flame retardant ABS plastic grill and flame retardant synthetic filter. Integral gasket on reverse side of grill, seals against mounting surface. Hole cutout is NOT critical as rear of filter grill seals to surface (see rear photo below) Can be used with standard 3.15" or 5.25" square fans (available below or use your own) or alone as as exhaust grill Molded in a choice of 3 colors to match our racks & accessories   Shown left to right 4.7" and 3.15" models (black) 4.7" model shown with fan installed (not included)

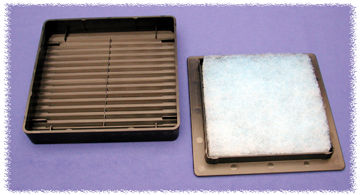

Part Number 1-99 Color Grill Size Use With Square Fan Size H W EID-XPFA80BK EID-XPFA80CG EID-XPFA80GY   Black Gray/Beige ASA 61 Gray 4.13" 4.13" 3.15" EID-XPFA120BK EID-XPFA120CG EID-XPFA120GY   Black Gray/Beige ASA 61 Gray 5.91" 5.91" 4.70"   Photo Features:   Open Photo (Front, Back & Filter) Rear Photo     Replacement Filters (5 per pack) Part Number 1-99 Use With Square Fan Size EID-PFF1000   3.15" (EID-XPFA80 series) EID-PFF2000   4.7" (EID-XPFA120 series)
Fans (Tubeaxial) Choice of 4.70" (100mm) or 3.15" (80mm) 1.50" deep Choice of either 115 or 230 VAC, 50/60 Hz. Impedance protected motor Class-B insulated Ball bearing construction, metal blades Diecast aluminum body Rotation is counter clockwise (looking at the rotor - as pictured) Airflow is over the struts (out the back as pictured) 4.70" (100 mm) fans have male plug terminations (requires fan cords below) 3.15" (80 mm) fans have 11" long lead wires UL recognized, CSA listed, CE certified With mounting hardwar 4.70" (100mm) Size 3.15" (80mm) Size
115 VAC Fans (50/60 Hz.) Part Number 1-99 Size CFM Wattage Use With Fan Guard Part Number (see below) Use With Filter Grill (see above) Part Number Inches mm EID-FAN80AC115   3.15 80 32 10 FAN80FG EID-XPFA80... EID-DNMF100AC115   4.70 100 105 22 EID-DNFG EID-XPFA120...   230 VAC Fans (50/60 Hz.) Part Number 1-99 Size CFM Wattage Use With Fan Guard Part Number Use With Filter Grill (see above) Part Number Inches mm EID-FAN80AC230   3.15 80 32 10 FAN80FG EID-XPFA80... EID-DNMF100AC230   4.70 100 105 22 EID-DNFG EID-XPFA120...   Metal Fan Guards (with mounting hardware)     Part Number 1-99 Size Inches mm EID-FAN80FG   3.15 80 EID-DNFG   4.70 100   Fan Cords For 115 VAC wiring Molded female fan plug (0.91" x 0.68")   Part Number 1-99 Description Lead Length Fan Connector 115VAC Plug EID-DNMFC   Single Fan Cord 24" Straight No EID-DNFC48P   Single Fan Cord 48" 45 degree Yes EID-DNFC72P   Single Fan Cord 72" 45 degree Yes EID-DNFCDC2P   Daisy Chain 24" Qty 2-45 degree, 24" apart Yes EID-DNFCDC3P   Daisy Chain 24" Qty 3-45 degree, 24" apart Yes
	Baffle Panel Mounts to standard 19” rack rails Extends 14" behind rack rails - rear sloping Uses only a single rack panel space (1.75") Steel construction Shown here upside down to show construction Rugged, heat absorbing black powder paint finish Requires mounting hardware
Part Number 1-99 Panel Height Inches Units EID-PVBB19001BK2   1.75 1

	Louvered Panel Standard 19" rack mount Formed 16 gauge construction Designed with 3 columns of 4 inch wide louvers Louvers face out Powder paint finish Requires mounting hardware
Part Number  1-99 Color Paint Texture Panel Height Inches Units  EID-PVLL19005BK2 EID-PVLL19005CG2   Black Gray/Beige Smooth Smooth 5.25 3 EID-PVLL19007BK2 EID-PVLL19007CG2   Black Gray/Beige Smooth Smooth 7.00 4 EID-PVLL19008BK2 EID-PVLL19008CG2   Black Gray/Beige Smooth Smooth 8.75 5 EID-PVLL19010BK2 EID-PVLL19010CG2   Black Gray/Beige Smooth Smooth 10.50 6 EID-PVLL19012BK2 EID-PVLL19012CG2   Black Gray/Beige Smooth Smooth 12.25 7

	Steel Slotted Panel Standard 19" rack mount 14 gauge steel construction Slots are 0.25" x 1.0" Powder paint finish Requires mounting hardware
Part Number  1-99 Color Paint Texture Rows of Slots Panel Height Open Space (Cubic In.)  Inches Units  EID-PVSS19001BK2 EID-PVSS19001CG2   Black Gray/Beige Smooth Smooth 1 1.75 1 9.7 EID-PVSS19003BK2 EID-PVSS19003CG2   Black Gray/Beige Smooth Smooth 2 3.50 2 19.4
	Aluminum Slotted Panel Standard 19" rack mount 0.13" thick aluminum construction Slots are 0.25" x 1.0" Powder paint finish Requires mounting hardware
Part Number  1-99 Color Paint Texture Rows of Slots Panel Height Open Space (Cubic In.) Inches Units  EID-PVSA19001BK2 EID-PVSA19001CG2   Black Gray/Beige Smooth Smooth 1 1.75 1 9.7 EID-PVSA19003BK2 EID-PVSA19003CG2   Black Gray/Beige Smooth Smooth 2 3.50 2 19.4
