Adjustable Dual Output Positive & Negative Voltage Power-Supply Kit (Adj. output +/- 1.25V to +/-24 VDC) is an electronics board (kit) that allows you to connect up to Dual 30V AC on one side of the board and get adjustable VDC regulated on the other side. Every lab should have a few of these boards handy. The boards will allow you to easily power all your analog components (i.e. op-amp). The Terminal Block TB connector is included and makes it easy to use.

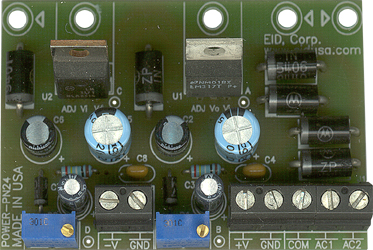

Standard Board

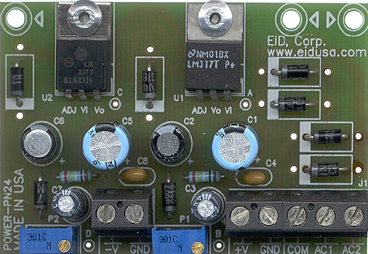

With optional high-current configuration







Basic operation of the adjusted voltage regulator board

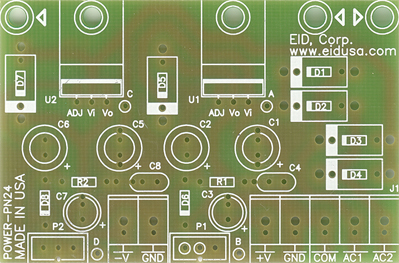

The diodes bridge D1-D4, together with the capacitors C1, C2, will convert input dual AC voltages to DC Voltages both negative and positive floating respectively to the center trace (CT) of your transformer (See below kit drawing). Additionally, the diode bridge ensures that the polarity of the bridge output remains the same directions regardless of the input voltage polarity.



The other side of the diodes bridge drives the voltage regulators U1, U2 respectively. The adjustable voltage regulators are the main components of this kit (regulator). Usually having three legs, and produces a constant regulated output voltage base on your settings (adjustment via P1 positive voltages or P2 for negative voltages).



The adjustable positive and negative voltage regulators are available in a variety of packages for different outputs and max current driver. The most common part numbers of the positive adjustable voltage regulator is LM317 for an output of up to 1A with 1.25 to 24VDC output and LM337 for negative one. This monolithic integrated circuit (IC), is an adjustable 3-terminal positive and negative correspondingly voltage regulators designed to supply more than 1A of load current with an output voltage adjustable over a +/-1.25 to +/- 30V. The LM338 should be use instead of the LM317 with when circuit require output of up to 3A. and the the LM138 for up to 5A. See more info below. Heat sinking block is usually require when pulling current > 400mA (optional). Heat sink are manly manufacture from Aluminum material. One can use our die-cast aluminum enclosure, for both heat-sink device and enclosure to house its power supply and transformer.



The LM317, LM338 or LM138 series of adjustable voltage regulators are designed for positive input. The adjustable regulator LM317 typically has the ability to drive currents up to 1A. Application requirements only up to 150mA, LM317 in a TO-92 packaging can be used. Ask our sales engineers for more details.



The LM337, series of adjustable voltage regulators are designed for negative input. The adjustable regulator LM337 typically has the ability to drive currents up to 1A. Application requirements only up to 150mA, LM337 in a TO-92 packaging can be used. Ask our sales engineers for more details.



The LM317/337 series of adjustable 3-terminal positive/negative voltage regulators are capable of supplying in excess of 1A over a +/- 1.25V to +/-30V output range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulations are better than standard fixed regulators. Also, the LM317/337 are packaged in standard transistor packages (TO-220 and T-92) that are easily mounted and handled.



In addition to higher performance than fixed regulators, the LM317/337 series offers full overload protection available only in IC's. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.



Normally, no capacitors are needed unless the device is situated more than 6 inches from the input filter capacitors in which case an input bypass is needed. We calculated a capacitor (C1, C5) of 47uF for our input filter. It will be sufficient for both 50 and 60 HZ lines voltage. An optional output capacitor (C3, C7) can be added to improve transient response and stabilization. In environment  (industrial etc.) with high frequencies additional cap (C4, C8) is require see text for more details. The adjustment terminal can be bypassed to achieve very high ripple rejection ratios, which are difficult to achieve with standard 3-terminal regulators. Adding 10uF across the ADJ pin (leg) will add stability when fast voltage swings is requires. Furthermore this cap (C2, C6) is used as a low past filter (L.P.F. or LPF) and will alienate any frequency of above 6Hz at minimum output voltage, (F=1/2*PI*RC).



LM317/337 are useful in a wide variety of other applications. Since the regulator is "floating" and sees only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input to output differential is not exceeded, i.e., avoid short-circuiting the output. Please be advised that our kit design for a maximum voltages of +/-30V. Also, it makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment pin and output.

For applications requiring greater output current, see LM338 series (rated up to about 3A) and LM138 series (rated up to about 5A) data sheets.



Some of the Features of the LM317/337 include: 1% output voltage tolerance, max. 0.01%/V line regulation, max 1A output current, adjustable output down to +/-1.25V respectively, current limit constant with temperature, 80 dB ripple rejection, output is short-circuit protected.



As mentioned above, the component has three legs: Input leg which can hold up to +/- 36VDC respectively (we recommend not to exceed 30V), Adjustable leg (ADJ) and an output leg with the regulator's voltage. For maximum voltage regulation, adding capacitors C3, C7 and C4, C8 in parallel between the ground and the output is usually recommended. C4, C8 a 0.1MF capacitor is used. This eliminates any high frequency AC voltage that could otherwise combine with the output voltage. See below circuit diagram for the kit.



The protection diode D5 added to prevent C3, C7, C4, C8 combination from discharging thru the regulator during an input short circuit. The diode D6, D8 protects against capacitor C2, C6 discharging thru the regulator during an input short circuit. Therefore the combination diode D5, D6 and D7, D8 prevents the C2, C6 respectively (adj. cap) from discharging thru the regulator during an input short circuit.



Final Note: As a general rule the input voltage should be limited to 2 to 3 volts above the output maximum voltage. The LM317/337 series can handle up to 36 volts input, be advised that the power difference between the input and output appears as heat. If the input voltage is unnecessarily high, the regulator will overheat. Unless sufficient heat dissipation is provided through heat sinking, the regulator will shut down. Therefore, you will need to  mount a heat-sink on the regulator that is capable of dissipating the access heat produced. please also note, that the metal body of the LM317/337 (TO-220 package) is the connected internally to the output leg of the IC.



Kit Includes

  • LM317                 Voltage Regulator  1pc.

  • LM337                 Voltage Regulator  1pc.

  • 0.1MF                 Capacitor             2pc.

  • 47MF/50V            Capacitor             2pc.

  • 47MF/35V            Capacitor             2pc.

  • 10MF/50V            Capacitor             2pc.

  • 249 Ohms            Resistor               2pc.

  • 5K                      Trimmer               2pc.

  • 1N4001               Diode                   8pc.

  • 1N5006               Diode                   6pc. (Option)

  • 2P Terminal Block  Connector            2pc.

  • 3P Terminal Block  Connector            1pc.

  • PCB                                              1pc.

Note Replace the 1N4001 diode with 1N5006 and using LM338 (up to 3A) see above text for more details. The PCB is design to fit both diodes (extra holes locations and size to accommodated different diode sizes). For you convenient, we carry inventory of the 1N5006.

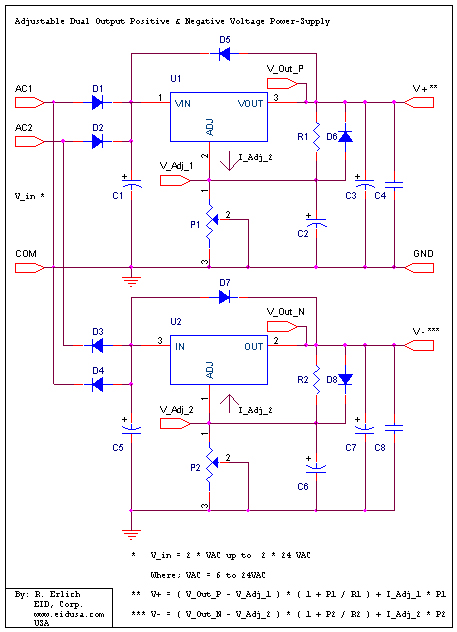

Schematic





Positive output voltage is set by two resistors ratio R1 and P1 and negative by R2 and P2 connected as shown above. The voltage across R1 is a constant 1.25 volts where R2 is -1.25V, and the adjustment terminal current is less than 100uA. The output voltage can be closely approximated from V+ = 1.25 * (1+(P1/R1)) and  V- = -1.25 * (1+(P2/R2)) which ignores the adjustment terminal current but will be close if the current through R1 and P1 and R2 and P2 are many times greater. A minimum load of about 10mA is required, so the value for R1, R2 can be selected to drop +/-1.25 volts at 10mA or 120 ohms to be on the safe side, we recommend resistor of about 240 ohms. Something less than 120 ohms can be used to insure the minimum current is greater than 10mA.



When power is shut off to the regulator, the output voltage should fall faster than the input. In case it doesn't, a diode  D5, D7 connected across the IC input and the output terminals protect the regulator from possible reverse voltages. A 47uF electrolytic capacitor across the output improves transient response, and a small 0.1uF capacitor is recommended across the output (see above text). The power transformer should be large enough so that the regulator input voltage remains 2 to 3 volts above the output at full load.



For a particular output voltage (V+), you can replace resistor R1, R2 and trimmer P1, P2 combination with 1% resistors. For example use R1 = R2 = 340 ohms, and replace P1 =P2 with resistor value of 3.74K ohms, both in 1% tolerance. You will get very close to +/- 15VDC output voltages. Ideally for single rail voltage require by many operational amplifiers (Op-AMP). Use R1 = R2 = 249 ohms and P1 =P2 = 750 ohms and get +/- 5VDC output voltage.



Option



Transformer with central tap (CT) configuration, see sch. below.
