Plastic Sloping Consoles (EID-1599 T "S" Series) Polystyrene Version

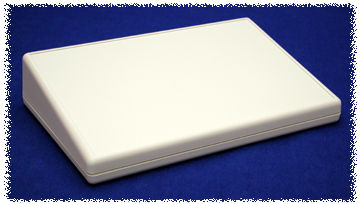

Short Slope - Polystyrene



Features and benefits:

Part Number

Color

1-99

100-1K

Battery Door

Units

Front To Rear Depth

Width

Rear of
Enclosure Height (Includes Lid)

Front of
Enclosure Height (Includes Lid

EID-1599ESTSGY

Grey





No

Inches

3.35

6.70

1.33

0.72

mm

85

170

34

18

EID-1599HSTSGY

Grey





No

Inches

4.33

8.66

1.73

0.75

mm

110

220

44

19

EID-1599KSTSGY

Grey





No

Inches

5.5

8.66

1.60

0.67

mm

140

220

40.5

17





Polystyrene versions use self tapping
screws. Perfect where economy is important
and where repetitive assembly and
disassembly of lid is not vital.

Self Tapping Lid Screws

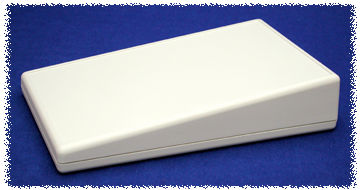

Long Slope - Polystyrene



Economical Polystyrene Plastic Long Slope Console



Rear of units contain one flat removable panels for easy modifications



Part Number

Color

1-99

100-1K

Battery Door

Units

Front To Rear
Depth

Width

Rear of
Enclosure Height (Includes Lid)

Front of
Enclosure Height (Includes Lid)

EID-1599KSTLGY

Grey





No

Inches

8.66

5.5

1.60

0.71

mm

220

140

40.5

18

EID-1599KSTLGYBAT

Grey





Yes

Inches

8.66

5.5

1.60

0.71

mm

220

140

40.5

18



Polystyrene versions use self tapping
screws. Perfect where economy is important
and where repetitive assembly and
disassembly of lid is not vital.

Self Tapping Lid Screws



Rear Panel Information:

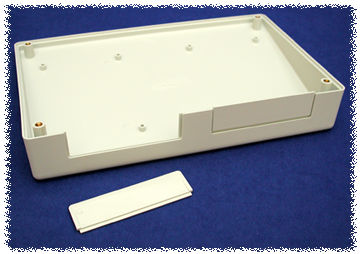

Rear view with lid and one panel removed (for easy machining)


Short Slope Console



Battery Door Information:



Part numbers above ending in "BAT" include a battery door (shown below)

Closed Battery Door

Open Battery Door

Battery Door Closed

Battery Door Open



Accessories:



Screws:

  • Accessory screws for mounting P.C. boards into standoffs (#4 x 1/4" pan head) P/N EID-1593ATS50 (qty. 50), P/N EID-1593ATS100 (qty. 100).

  • Replacement self tapping screw, used in polystyrene series (i.e. without brass inserts). #4 x 5/8" EID-1598TS100 - Package of 100.

Battery Holder Kits:

  • Designed for our battery door enclosure (i.e. part numbers ending in BAT).

  • Kits include all the parts required to install the battery or batteries.

  • Kit includes the battery holder, wires, divider and foam anti-rattle pad.



Part Number

Battery Holder Kit For:

Fits Battery Door Enclosure Size:

EID-BH1AAWKIT

1 AA Cell

EID-1599B & EID-1599E series

EID-BH2AAWKIT

2 AA Cells

EID-1599B & EID-1599E series

EID-BH1AAAWKIT

1 AAA Cell

EID-1599B & EID-1599E series

EID-BH2AAAWKIT

2 AAA Cells

EID-1599B & EID-1599E series

EID-BH3AAAWKIT

3 AAA Cells

EID-1599E size only

EID-BH4AAAWKIT

4 AAA Cells

EID-1599E size only

EID-BS61KIT

1 - 9V Cell

EID-1599B & EID-1599E series



Notes:

  • All Dimensions in inches & mm

  • Add 0.12" (3 mm) to enclosure depth for lid

  • Self tapping lid screws are #4 x 1/2"  Qty 100 - Part number EID-EID-1591TS100 and EID-EID-1591TS100BK - black)

  • To secure P.C. board use #2 x 3/16" (Qty 100 - Part number EID-EID-1551ATS100)

  •
