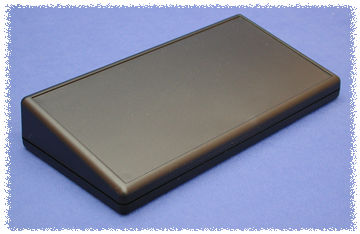

Plastic Sloping Consoles (EID-1599 T Series) Flame Retardant ABS Plastic Version



Short Slope - Grey ABS

Short Slope - Black ABS

Grey Version

Black Version



Features and benefits:

  • Short Slope Console

  • Rear of units contain one or two (depending on console size), flat removable panels for easy modifications.

  • Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0.

Part Number

Color

1-99

100-1K

Battery Door

Units

Front To Rear Depth

Width

Rear of
Enclosure Height
(Includes Lid)

Front of
Enclosure Height (Includes Lid)

EID-1599ETSBK
EID-1599ETSGY

Black
Grey





No

Inches

3.35

6.70

1.33

0.72

mm

85

170

34

18

EID-1599HTSBK
EID-1599HTSGY

Black
Grey





No

Inches

4.33

8.66

1.73

0.75

mm

110

220

44

19

EID-1599KTSBK
EID-1599KTSGY

Black
Grey





No

Inches

5.5

8.66

1.60

0.67

mm

140

220

40.5

17

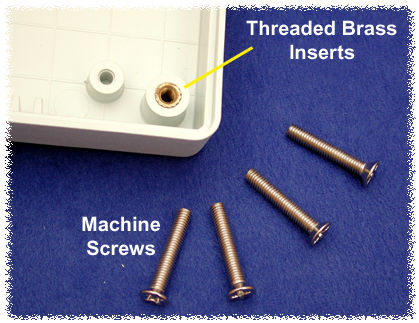

Flame retardant ABS plastic versions include
integral threaded brass inserts and machine
screws providing extra strength for repeated
assembly and disassembly of lid.

Brass Inserts



Rear Panel Information:

Rear view with lid and one panel removed (for easy machining)

Short Slope Console



Battery Door Information:



Part numbers above ending in "BAT" include a battery door (shown below)

Closed Battery Door

Open Battery Door

Battery Door Closed

Battery Door Open

Accessories:



Screws:

  • Accessory screws for mounting P.C. boards into standoffs (#4 x 1/4" pan head) P/N EID-1593ATS50 (qty. 50), P/N EID-1593ATS100 (qty. 100).

  • Replacement machine screw, used in flame retardant ABS series (i.e. with brass inserts). M3 - 0.5 x 10 mm EID-1591MS100 - Package of 100.

Battery Holder Kits:

  • Designed for our battery door enclosure (i.e. part numbers ending in BAT).

  • Kits include all the parts required to install the battery or batteries.

  • Kit includes the battery holder, wires, divider and foam anti-rattle pad.

Part Number

Battery Holder Kit For:

Fits Battery Door Enclosure Size:

EID-BH1AAWKIT

1 AA Cell

EID-1599B & EID-1599E series

EID-BH2AAWKIT

2 AA Cells

EID-1599B & EID-1599E series

EID-BH1AAAWKIT

1 AAA Cell

EID-1599B & EID-1599E series

EID-BH2AAAWKIT

2 AAA Cells

EID-1599B & EID-1599E series

EID-BH3AAAWKIT

3 AAA Cells

EID-1599E size only

EID-BH4AAAWKIT

4 AAA Cells

EID-1599E size only

EID-BS61KIT

1 - 9V Cell

EID-1599B & EID-1599E series



Notes:

  • All Dimensions in inches & mm

  •
