Industrial Electrical Enclosure EID-EN4TD Series: Eclipse Series - NEMA 12 Two Doors (TD) Enclosure.







                       EID-EN4TD Series, Eclipse Two Doors Series - NEMA 12 Single Door Enclosure.



Application:

  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall-mount applications.

  • Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.

  • A wide range of sizes and practical accessories make this product line a complete package.

Standards:

  • UL 508 Type 3R unless marked¹, 12

  • CSA Type 3R, 12

  • Complies with

    • NEMA Type 3R, 12

    • IEC 60529, IP54

Construction:

  • Formed 14 gauge steel.

  • Smooth, continuously welded seams ground smooth.

  • Door stiffeners are provided for increased strength and rigidity also designed to permit additional mounting options.

  • Formed lip on enclosure to exclude flowing liquids and contaminants.

  • Doors may be easily removed for modifications and are interchangeable.

  • Oil resistant gaskets are permanently secured.

  • Collar studs provided for mounting inner panel.

  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.

  • Bonding stud provided on door and grounding stud installed in enclosure.

  • Doors are secured with a three point key lockable handle.

  • Hinges are constructed from 304 stainless steel.

  • Key lockable handle is zinc die-cast with black Epoxy finish.

  • Hinge pins are stainless steel.

  • Door alignment guides provided on all doors.

Finish:



Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).



Accessories:

  • Air conditioners

  • Blowers

  • Breather Kits

  • DIN Rails

  • DIN Rail Mounting Kit

  • Door Stop Kit

  • Filter fans

  • Gland Plates

  • Heaters

  • Handles

  • Inner Panels

  • Literature Pocket

  • Replacement Hinge Pins

  • Thermostats

  • Touch Up Paint

  • UL/CSA Approved Hardware Kit

  • Window kits








Part No.
(ANSI 61
Gray)

Part No.
(RAL7035
Light Gray)

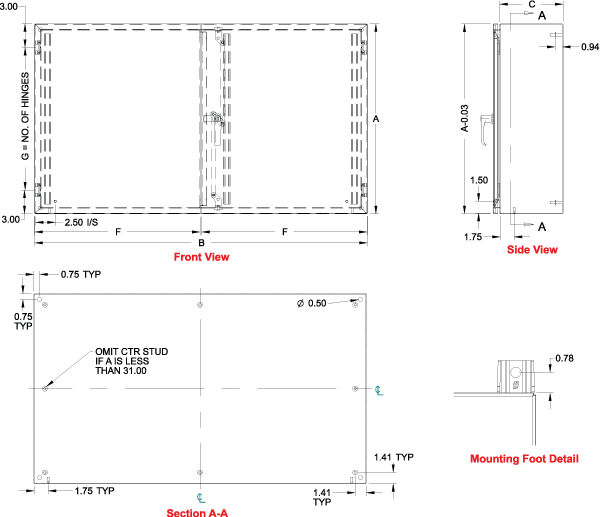

Overall Dimensions



# of
Hinges

Optional
Panel
Part No.

Panel Size

Ship
Wt. Lbs

A

B

C

F

G

D

E

EID-EN4TD24428GY

EID-EN4TD24428LG

24

42

8

20.88

2

EID-EP2442

22.2

40.2

80

EID-EN4TD24488GY

EID-EN4TD24488LG

24

48

8

23.88

2

EID-EP2448

22.2

46.2

95

EID-EN4TD30488GY

EID-EN4TD30488LG

30

48

8

23.88

3

EID-EP3048

28.2

46.2

105

EID-EN4TD244210GY

EID-EN4TD244210LG

24

42

10

20.88

2

EID-EP2442

22.2

40.2

85

EID-EN4TD304210GY

EID-EN4TD304210LG

30

42

10

20.88

3

EID-EP3042

28.2

40.2

117

EID-EN4TD304810GY

EID-EN4TD304810LG

30

48

10

23.88

3

EID-EP3048

28.2

46.2

112

EID-EN4TD306010GY

EID-EN4TD306010LG

30

60

10

29.88

3

EID-EP3060

28.2

58.2

145

EID-EN4TD306012GY

EID-EN4TD306012LG

30

60

12

29.88

3

EID-EP3060

28.2

58.2

152

EID-EN4TD364212GY

EID-EN4TD364212LG

36

42

12

20.88

3

EID-EP3642

34.2

42.2

121

EID-EN4TD364812GY

EID-EN4TD364812LG

36

48

12

23.88

3

EID-EP3648

34.2

46.2

135

EID-EN4TD366012GY

EID-EN4TD366012LG

36

60

12

29.88

3

EID-EP3660

34.2

58.2

165

EID-EN4TD484812GY¹

EID-EN4TD484812LG¹

48

48

12

23.88

4

EID-EP4848

46.2

46.2

165



¹ Approved to CSA/CSAus Type 12, 3R only

  •
