Industrial Electrical Enclosure EID-ST Series: Eclipse Sloped Top (ST) Series - NEMA 4, 12 Single Door Enclosure.







                       EID-ST Series, Eclipse "Sloped-Top" Series - NEMA 4, 12 Single Door Enclosure.



Application:

  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall-mount applications.

  • Sloped top prevents water from resting on top as well as providing potential for controls mounting.

  • Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.

  • A wide range of sizes and practical accessories make this product line a complete package.

Standards:

  • UL 508 Type 3R, 4, 12 and 13

  • CSA Type 3R, 4, 12 and 13

  • Complies with

    • NEMA Type 3R, 4, 12 and 13

    • IEC 60529, IP66

Construction:

  • Formed 14 or 16 gauge steel.

  • Continuously welded seams ground smooth.

  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.

  • Formed lip on enclosure to exclude flowing liquids and contaminants.

  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.

  • Doors may be easily removed for modifications and are interchangeable.

  • Seamless poured-in place gasket.

  • Collar studs provided for mounting inner panel.

  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.

  • Bonding stud provided on door and grounding stud installed in enclosure.

  • Hinges are finished in mild steel.

  • Stainless steel hinge pins and quarter turns.

Finish:



Cover and enclosure are finished in recoatable RAL 7035 light gray textured powder coating.



Accessories:

  • Air conditioners

  • Blowers

  • Breather Kits

  • DIN Rails

  • DIN Rail Mounting Kit

  • Door Stop Kit

  • Filter fans

  • Gland Plates

  • Heaters

  • Handles

  • Inner Panels

  • Quarter Turn Inserts and Keys

  • Literature Pocket

  • Mounting Foot Kit

  • Swing Frame

  • Swing Panel

  • Replacement Hinge Pins

  • Replacement Quarter Turn Assemblies

  • Thermostats

  • Touch Up Paint

  • UL/CSA Approved Hardware Kit

  • Padlock Adapter (EID-EPA)

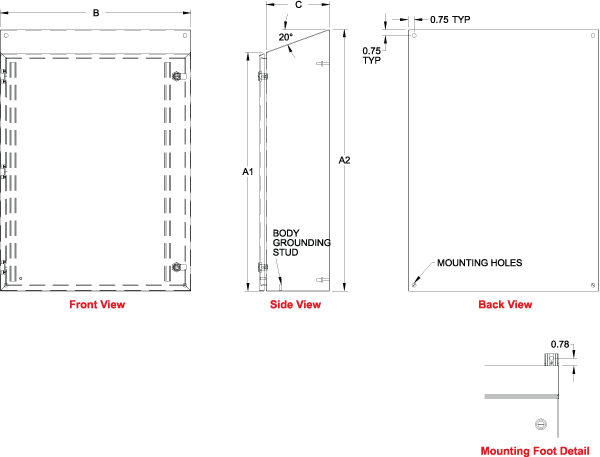

Part Number

Dimensions [in] Enclosure Size

Gauge

Panel
Part No.

Latch
Qty

Latch
Style

Hinge
Qty

A1

A2

B

C

Door

Body

EID-ST12126LG

12.0

14.2

12

6

16

16

EID-EP1212

1

Qtr Turn

2

EID-ST16126LG

16.0

18.2

12

6

16

16

EID-EP1612

1

Qtr Turn

2

EID-ST20166LG

20.0

22.2

16

6

16

16

EID-EP2016

1

Qtr Turn

2

EID-ST20206LG

20.0

22.2

20

6

16

16

EID-EP2020

1

Qtr Turn

2

EID-ST16168LG

16.0

18.9

16

8

16

16

EID-EP1616

1

Qtr Turn

2

EID-ST20168LG

20.0

22.9

16

8

16

16

EID-EP2016

1

Qtr Turn

2

EID-ST20208LG

20.0

22.9

20

8

16

16

EID-EP2020

1

Qtr Turn

2

EID-ST24208LG

24.0

26.9

20

8

16

16

EID-EP2420

1

Qtr Turn

2

EID-ST24248LG

24.0

26.9

24

8

14

16

EID-EP2424

2

Qtr Turn

2

EID-ST30248LG

30.0

32.9

24

8

14

16

EID-EP3024

2

Qtr Turn

3

EID-ST30308LG

30.0

32.9

30

8

14

14

EID-EP3030

2

Qtr Turn

3

EID-ST36308LG

36.0

38.9

30

8

14

14

EID-EP3630

2

Qtr Turn

3

EID-ST242410LG

24.0

27.6

24

10

14

16

EID-EP2424

2

Qtr Turn

2

EID-ST302410LG

30.0

33.6

24

10

14

16

EID-EP3024

2

Qtr Turn

3

EID-ST363010LG

36.0

39.6

30

10

14

14

EID-EP3630

2

Qtr Turn

3

EID-ST483610LG

48.0

51.6

36

10

14

14

EID-EP4836

1

3-point

4

EID-ST242412LG

24.0

28.4

24

12

14

16

EID-EP2424

2

Qtr Turn

2

EID-ST302412LG

30.0

34.4

24

12

14

16

EID-EP3024

2

Qtr Turn

3

EID-ST363012LG

36.0

40.3

30

12

14

14

EID-EP3630

2

Qtr Turn

3

EID-ST363612LG

36.0

40.3

36

12

14

14

EID-EP3636

2

Qtr Turn

3

EID-ST483612LG

48.0

52.3

36

12

14

14

EID-EP4836

1

3-point

4

EID-ST603612LG

60.0

64.3

36

12

14

14

EID-EP6036

1

3-point

4

EID-ST363016LG

36.0

41.8

30

16

14

14

EID-EP3630

2

Qtr Turn

3

EID-ST483616LG

48.0

53.7

36

16

14

14

EID-EP4836

1

3-point

4

EID-ST302420LG

30.0

37.3

24

20

14

14

EID-EP3024

2

Qtr Turn

3



  •
