Electrical Enclosure EID-EJ Series:
Eclipse Junior
(EJ) Series -
NEMA 4, 12, 13 Single Door Enclosure.
EID-EJ Series, Eclipse
Junior Series -
NEMA 4, 12, 13 Single Door Enclosure.
Application:
-
Designed to enclose electrical
and/or electronic equipment and protect against harsh,
industrial environments.
-
For use as instrument
enclosures, electric, hydraulic or pneumatic control
housings, electrical junction boxes or terminal wiring
enclosures.
-
Impressive styling features
make the Eclipse Junior a suitable addition to any high—tech
equipment installation.
Standards:
-
UL 508 Type 3R, 4, 12 and 13
-
CSA Type 3R, 4, 12 and 13
-
Complies with
Construction:
-
Body and cover are formed from
16 gauge steel.
-
Smooth, continuously welded
seams without knockouts, cutouts, or holes.
-
Formed lip on enclosure to
exclude flowing liquids and contaminants.
-
14 gauge welded brackets
provide for enclosure mounting.
-
Continuously hinged cover has
304 stainless steel hinges and provides 180° opening.
-
Door latches feature the added
safety of quarter turn slot requiring use of tool for
opening.
-
Quarter turn latches formed
from black zinc die-cast.
-
Seamless poured-in place
gasket.
-
Models larger than 4"x4"
include a removable 14 gauge galvanized inner panel.
-
Internal threaded weld studs
are provided for mounting inner panels.
-
A bonding stud is provided on
the door and a grounding stud is provided on the enclosure.
-
Grounding and panel mounting
hardware provided.
Finish:
Accessories:
|
Part No. |

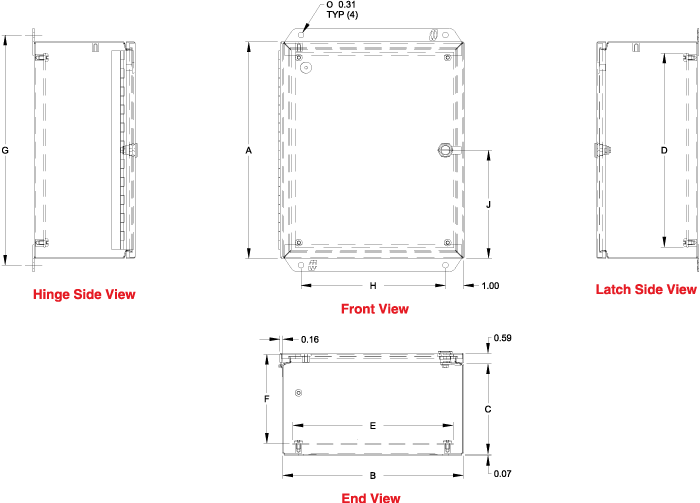

Overall Dimensions |
|
Panel Size |
|
Ship Wt.
(lbs) |
|
A |
B |
C |
H |
G |
D |
E |
J |
F |
|
EID-EJ443 |
4.0 |
4.0 |
3.0 |
2.00 |
4.75 |
— |
— |
2.00 |
— |
2 |
|
EID-EJ643 |
6.0 |
4.0 |
3.0 |
2.00 |
6.75 |
4.88 |
2.88 |
3.00 |
2.92 |
2 |
|
EID-EJ683 |
6.0 |
8.0 |
3.5 |
6.00 |
6.75 |
4.88 |
6.75 |
3.00 |
3.42 |
5 |
|
EID-EJ863 |
8.0 |
6.0 |
3.5 |
4.00 |
8.75 |
6.75 |
4.88 |
4.00 |
3.42 |
5 |
|
EID-EJ444 |
4.0 |
4.0 |
4.0 |
2.00 |
4.75 |
— |
— |
2.00 |
— |
3 |
|
EID-EJ644 |
6.0 |
4.0 |
4.0 |
2.00 |
6.75 |
4.88 |
2.88 |
3.00 |
3.92 |
3 |
|
EID-EJ664 |
6.0 |
6.0 |
4.0 |
4.00 |
6.75 |
4.88 |
4.88 |
3.00 |
3.92 |
4 |
|
EID-EJ884 |
8.0 |
8.0 |
4.0 |
6.00 |
8.75 |
6.75 |
6.88 |
4.00 |
3.92 |
7 |
|
EID-EJ8104 |
8.0 |
10.0 |
4.0 |
8.00 |
8.75 |
6.88 |
8.75 |
4.00 |
3.92 |
8 |
|
EID-EJ1084 |
10.0 |
8.0 |
4.0 |
6.00 |
10.75 |
8.75 |
6.88 |
5.00 |
3.92 |
8 |
|
EID-EJ1264 |
12.0 |
6.0 |
4.0 |
4.00 |
12.75 |
10.75 |
4.88 |
6.00 |
3.92 |
8 |
|
EID-EJ10125 |
10.0 |
12.0 |
5.0 |
10.00 |
10.75 |
8.88 |
10.75 |
5.00 |
4.92 |
10 |
|
EID-EJ12105 |
12.0 |
10.0 |
5.0 |
8.00 |
12.75 |
10.75 |
8.88 |
6.00 |
4.92 |
12 |
|
EID-EJ866 |
8.0 |
6.0 |
6.0 |
4.00 |
8.75 |
6.75 |
4.88 |
4.00 |
5.92 |
7 |
|
EID-EJ1086 |
10.0 |
8.0 |
6.0 |
6.00 |
10.75 |
8.75 |
6.88 |
5.00 |
5.92 |
10 |
|
EID-EJ10106 |
10.0 |
10.0 |
6.0 |
8.00 |
10.75 |
8.75 |
8.88 |
5.00 |
5.92 |
12 |
|
EID-EJ12126 |
12.0 |
12.0 |
6.0 |
10.00 |
12.75 |
10.75 |
10.88 |
6.00 |
5.92 |
15 |
|
EID-EJ12146 |
12.0 |
14.0 |
6.0 |
12.00 |
12.75 |
10.88 |
12.75 |
6.00 |
5.92 |
17 |
|
EID-EJ1486 |
14.0 |
8.0 |
6.0 |
6.00 |
14.75 |
12.75 |
6.88 |
7.00 |
5.92 |
10 |
|
EID-EJ14126 |
14.0 |
12.0 |
6.0 |
10.00 |
14.75 |
12.75 |
10.88 |
7.00 |
5.92 |
17 |
|
EID-EJ14166 |
14.0 |
16.0 |
6.0 |
14.00 |
14.75 |
12.88 |
14.75 |
7.00 |
5.92 |
21 |
|
EID-EJ16106 |
16.0 |
10.0 |
6.0 |
8.00 |
16.75 |
14.75 |
8.88 |
8.00 |
5.92 |
15 |
|
EID-EJ16146 |
16.0 |
14.0 |
6.0 |
12.00 |
16.75 |
14.75 |
12.88 |
8.00 |
5.92 |
21 |
|
EID-EJ12108 |
12.0 |
10.0 |
8.0 |
8.00 |
12.75 |
10.75 |
8.88 |
6.00 |
7.92 |
15 |
|
EID-EJ14128 |
14.0 |
12.0 |
8.0 |
10.00 |
14.75 |
12.75 |
10.88 |
7.00 |
7.92 |
18 |
|
EID-EJ16148 |
16.0 |
14.0 |
8.0 |
12.00 |
16.75 |
14.75 |
12.88 |
8.00 |
7.92 |
22 |
|
EID-EJ161410 |
16.0 |
14.0 |
10.0 |
12.00 |
16.75 |
14.75 |
12.88 |
8.00 |
9.92 |
23 |
|
