Industrial Electrical Enclosure EID-1422 Series: EID-1422 Two Door Floor-mount Continuous Hinge, Clamped Doors Series Enclosures - NEMA 4







                    EID-1422 Two Clamped Door floor mount Continuous Hinge,  Series Enclosures - NEMA 4



Application:

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

  • Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards:

  • UL 508 Type 3R, 4 and 12

  • CSA Type 3R, 4 and 12

  • Complies with

    • NEMA Type 3R, 4 12 and 13

    • JIC EGP-1-1967

    • IEC 60529, IP66

Construction:

  • Formed 12 gauge steel.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Body stiffeners are provided in the larger enclosures for extra rigidity.

  • Heavy duty lifting eyebolts are provided with reinforcing support angles.

  • Center post is removable for easy installation of the inner panel.

  • Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.

  • Continuously hinged doors may be removed by pulling the stainless steel hinge pin.

  • Doors are secured with heavy duty stainless steel clamps.

  • Provision for padlocking.

  • 12" floor stands are welded to the enclosure.

  • Seamless poured-in place gasket.

  • Provision for light kit mounting.

  • A removable 10 gauge inner panel is included.

  • Panel supports are provided for easy panel installation.

  • Collar studs are provided for mounting inner panels.

  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.

  • A literature pocket is provided for the inside of the door.

Finish:

  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.

  • Removable white inner panel is finished in white powder coating.

Accessories:

  • Air conditioners

  • Blowers

  • Breather kits

  • Door Stop Kits

  • Drip Shield Kits

  • Enclosure Stabilizers

  • Filter fans

  • Floor Stand Kits

  • Gland Plates

  • Heaters

  • Inner Panels

  • Light Kit

  • Louvered ventilating plates

  • Thermostats

  • Window kits

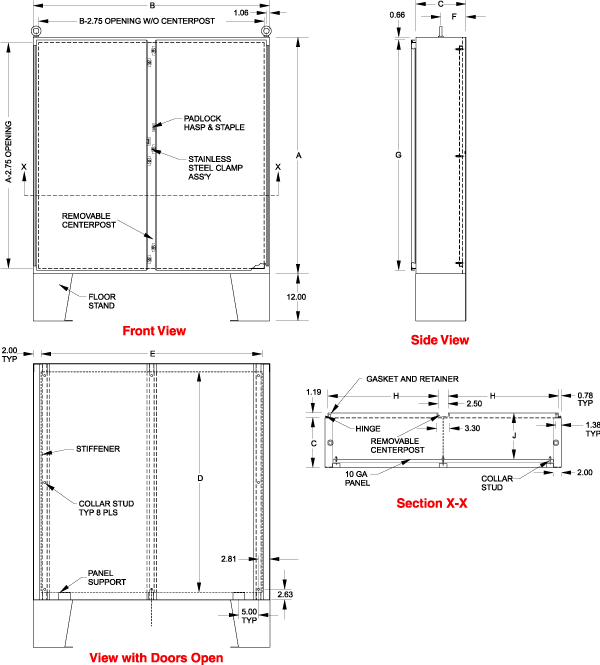

With Feet
Part No.

A

B

C

Body
Gauge

Panel
Gauge

Panel Size

F

G

H

J

Ship Wt.
(lbs)

D

E

EID-1422N4B10F

60.13

48.06

10.69

12

10

56

44

5.3

58.59

22

9.87

475

EID-1422N4D12F

60.13

60.06

12.69

12

10

56

56

6.3

58.59

28

11.87

567

EID-1422N4E12F

72.13

60.06

12.69

12

10

68

56

6.3

70.59

28

11.87

645

EID-1422N4F12F

72.13

72.06

12.69

12

10

68

68

6.3

70.59

34

11.87

750

EID-1422N4F24F

72.13

72.06

24.69

12

10

68

68

12.3

70.59

34

23.87

945



  •
