Industrial Electrical Enclosure EID-1422 Series: EID-1422 Multiple Pad-lockable Doors Continuous Hinge, Series Enclosures - NEMA 12

                     EID-1422 Multiple Pad-lockable Doors Continuous Hinge, Series Enclosures - NEMA 12

Application:

• Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

• Provides a degree of protection from falling dirt, dust, oil and water.

Standards:

• UL 508 Type 12

• CSA type 12

• Complies with

  • NEMA Type 12

  • JIC EGP-1-1967

  • IEC 60529, IP54

Construction:

• Formed 10 gauge steel.

• Smooth, continuously welded seams without knockouts, cutouts or holes.

• Heavy duty body stiffeners are provided for extra rigidity.

• Reinforced eyebolts are provided for easy enclosure lifting.

• Double door openings have gasketed overlapping doors, eliminating the need for a center post.

• Continuously hinged doors may be removed by pulling the hinge pin.

• Doors are secured with a three point latch and operated with a vault type padlocking handle.

• Latch rods are equipped with rollers for easier door closing.

• Oil resistant gaskets are permanently secured.

• Removable 10 gauge inner panels are included in the enclosures.

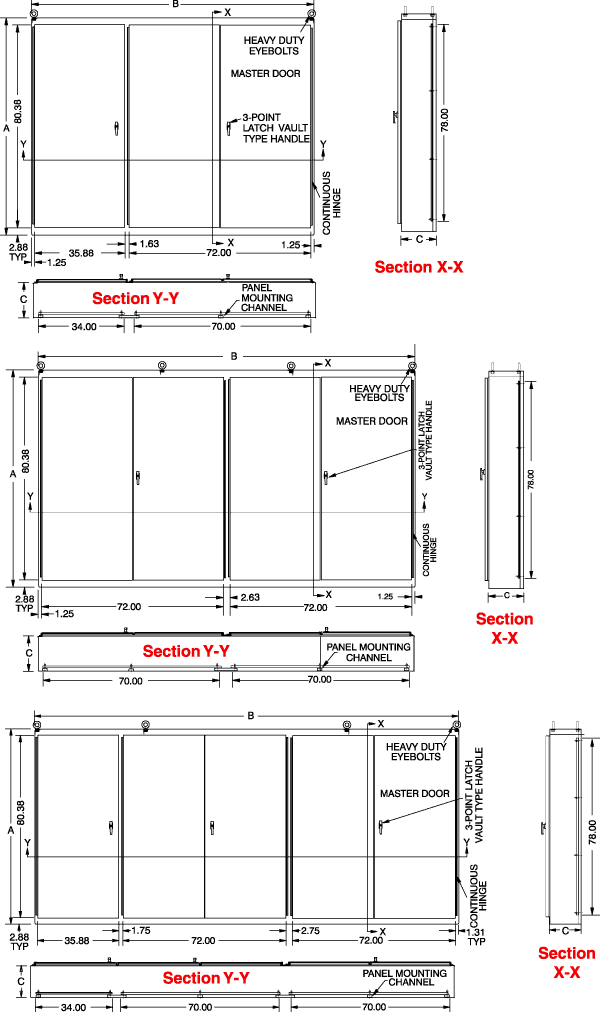

• 3 door units have 2 panels (34" x 78" and 70" x 78").

• 4 door units have 2 panels (70" x 78" each).

• 5 door units have 3 panels (one 34" x 78" and two 70" x 78").

• Slave doors have mechanical interlock and cannot be opened unless the master door is open.

• Panel supports are provided in enclosures for easy panel installation.

• Collar studs are provided for mounting inner panels.

• A grounding stud is provided in the enclosure for each door and a bonding stud is pro­vided on the door.

• A literature pocket is provided for the inside of the door.

Finish:

• Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.

• Removable inner panels are finished in white powder coating.

Accessories:

• Air conditioners

• Blowers

• Breather kits

• Door Stop Kits

• Drip Shield Kits

• Filter fans

• Gland Plates

• Heaters

• Light Kit

• Louvered ventilating plates

• Thermostats

• Window kits

  ^•
